TOYOTA CARINA 2 CT170R-AEMNSG / POWERTRAIN-CHASSIS / FRONT DRIVE SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

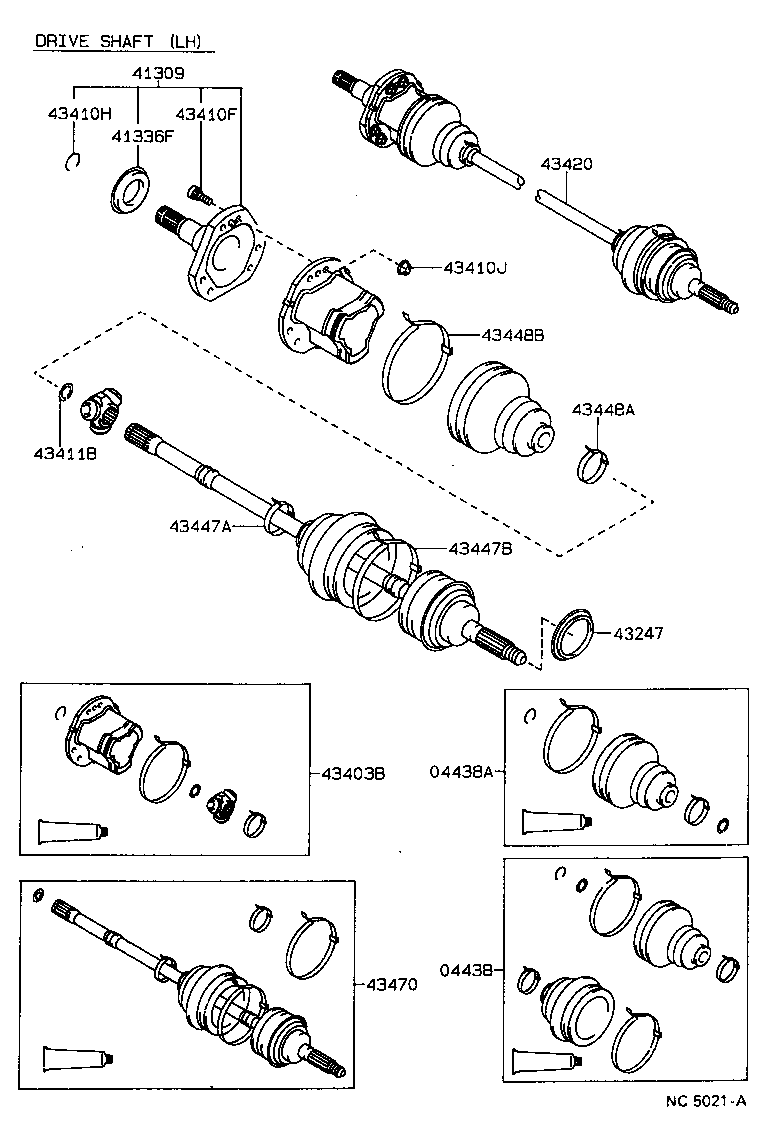

FRONT DRIVE SHAFT

ILLUST NO. 2 OF 2(8712-8908)CT170,ST171

 CARINA 2 |  FRONT DRIVE SHAFT 04438 - BOOT KIT, FRONT DRIVE SHAFT 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT 41309 - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 43403B - JOINT SET, FRONT AXLE INBOARD, LH 43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT) 43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT) 43410J - NUT (FOR FRONT DRIVE SHAFT) 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) 43420 - SHAFT ASSY, FRONT DRIVE, LH 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING) 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING) 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
