TOYOTA CELICA AT160L-BLMSSW / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

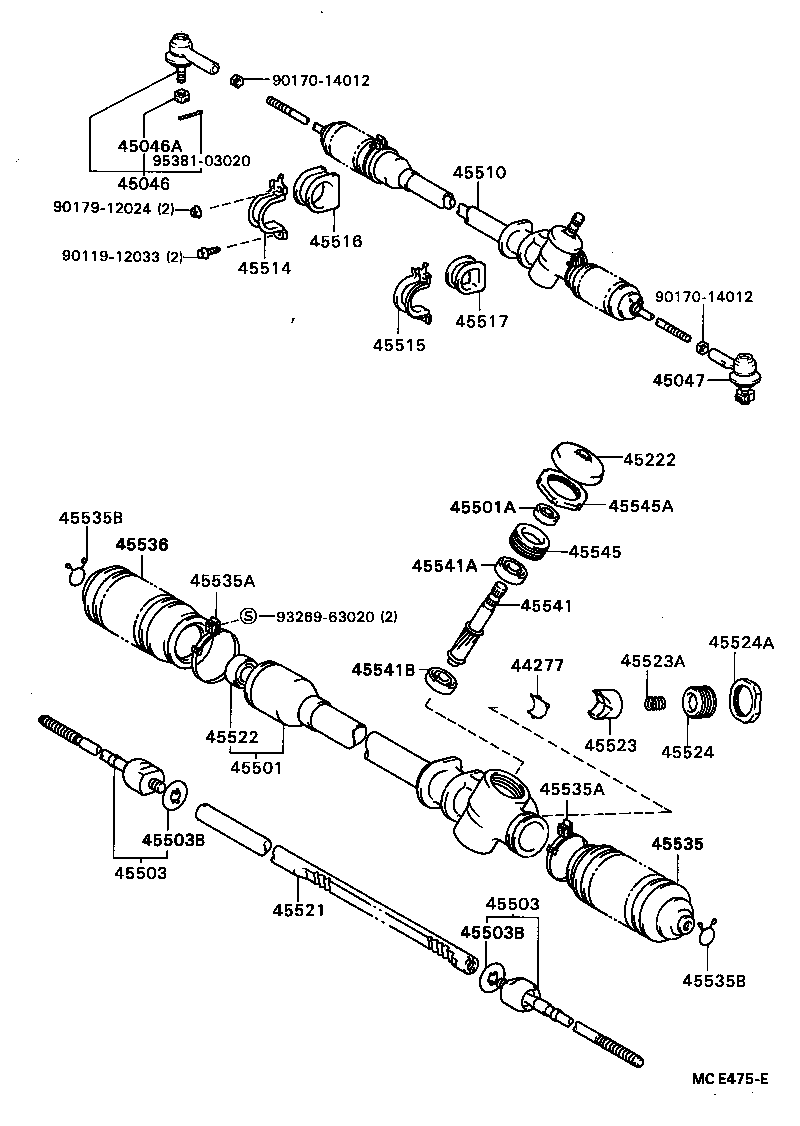

FRONT STEERING GEAR LINK

ILLUST NO. 2 OF 2(8708- )CBR

CELICA | FRONT STEERING GEAR LINK 44277 - SEAT, RACK GUIDE 45046 - END SUB-ASSY, TIE ROD, RH 45046A - NUT, CASTLE(FOR TIE ROD END) 45047 - END SUB-ASSY, TIE ROD, LH 45222 - COVER, STEERING GEAR DUST 45501 - HOUSING SUB-ASSY, STEERING RACK 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) 45503 - END SUB-ASSY, STEERING RACK 45503 - END SUB-ASSY, STEERING RACK 45503B - WASHER, CLAW(FOR STEERING RACK END) 45503B - WASHER, CLAW(FOR STEERING RACK END) 45510 - GEAR ASSY, STEERING 45514 - BRACKET, STEERING RACK HOUSING, NO.1 45515 - BRACKET, STEERING RACK HOUSING, NO.2 45516 - GROMMET, STEERING RACK HOUSING, NO.1 45517 - GROMMET, STEERING RACK HOUSING, NO.2 45521 - RACK, STEERING 45522 - BUSH, STEERING RACK 45523 - GUIDE, RACK(FOR STEERING GEAR) 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) 45524 - CAP, STEERING RACK GUIDE SPRING 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) 45535 - BOOT, STEERING RACK, NO.1 45535A - CLAMP(FOR STEERING RACK BOOT) 45535A - CLAMP(FOR STEERING RACK BOOT) 45535B - CLIP(FOR STEERING RACK BOOT) 45535B - CLIP(FOR STEERING RACK BOOT) 45536 - BOOT, STEERING RACK, NO.2 45541 - PINION, STEERING 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) 45545 - SCREW, PINION BEARING ADJUSTING 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
