TOYOTA HIACE VAN COMUTER LH66LV-MRBFW / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

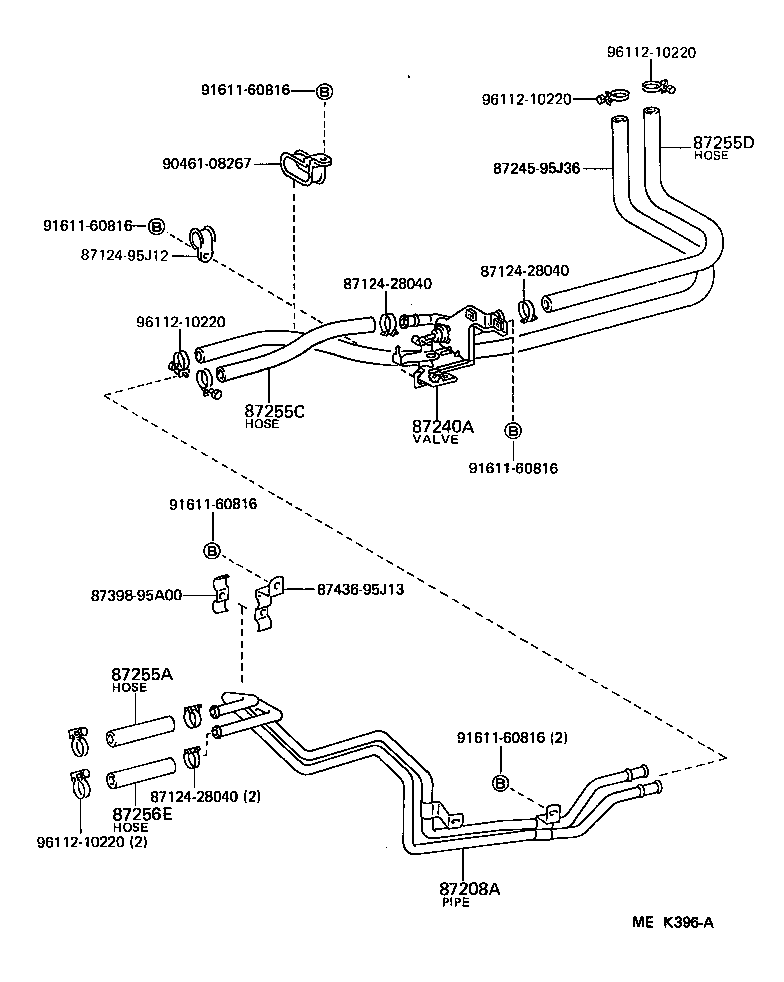

HEATING AIR CONDITIONING WATER PIPING

ILLUST NO. 2 OF 2(8708- )LH56,66

 HIACE VAN COMUTER |  HEATING AIR CONDITIONING WATER PIPING  ** Std Part  ** Std Part  ** Std Part  ** Std Part 87208A - PIPE SUB-ASSY, HEATER WATER, A 87240A - VALVE ASSY, REAR HEATER WATER  ** Std Part 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) 87255C - HOSE, REAR HEATER WATER INLET, C 87255D - HOSE, REAR HEATER WATER INLET, D 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
