TOYOTA CARINA 2 ST171R-AEMNKW / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

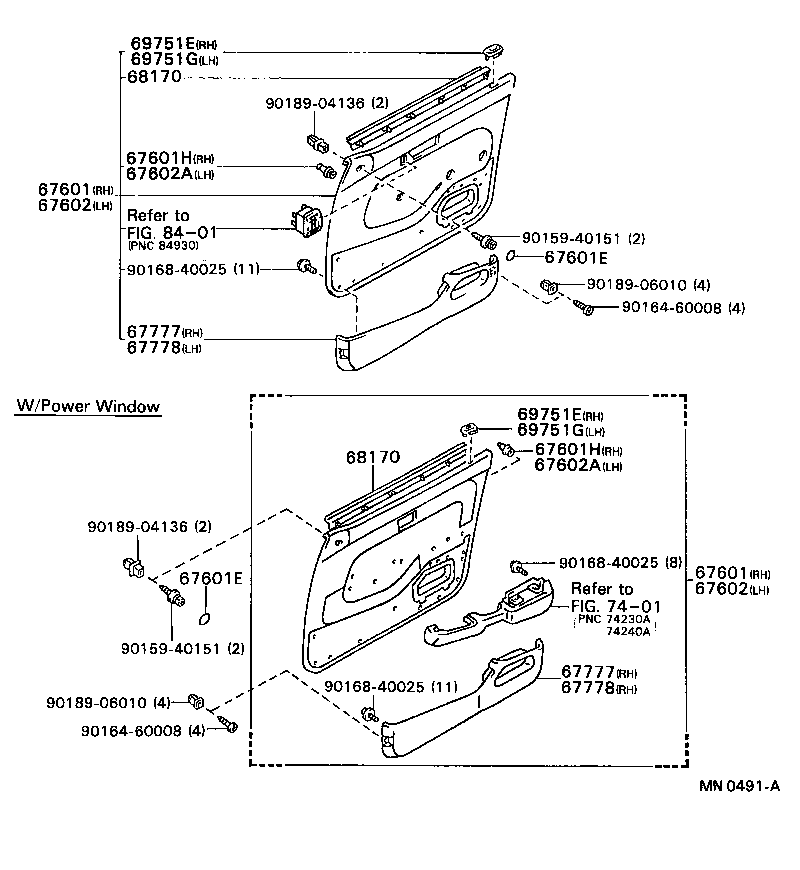

FRONT DOOR PANEL GLASS

ILLUST NO. 2 OF 2(8712- )

 CARINA 2 |  FRONT DOOR PANEL GLASS 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH 67601E - CAP(FOR FRONT DOOR TRIM BOARD) 67601E - CAP(FOR FRONT DOOR TRIM BOARD) 67601H - RETAINER, DOOR TRIM, RH 67601H - RETAINER, DOOR TRIM, RH 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH 67602A - RETAINER, DOOR TRIM, LH 67602A - RETAINER, DOOR TRIM, LH 67777 - POCKET, FRONT DOOR TRIM, RH 67777 - POCKET, FRONT DOOR TRIM, RH 67778 - POCKET, FRONT DOOR TRIM, LH 67778 - POCKET, FRONT DOOR TRIM, LH 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
