TOYOTA COASTER HB30R-MRZQ / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE BOOSTER VACUUM TUBE

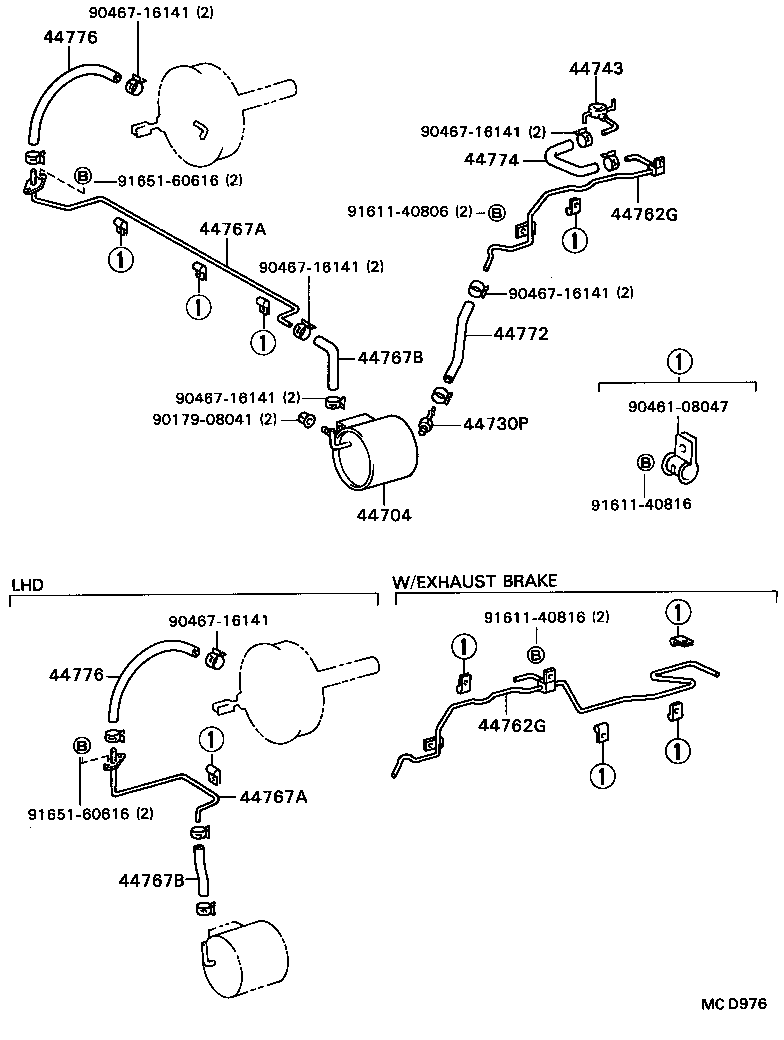

ILLUST NO. 2 OF 2(8610-9001)HB30

 COASTER |  BRAKE BOOSTER VACUUM TUBE 44704 - RESERVOIR SUB-ASSY, VACUUM 44730P - VALVE ASSY, VACUUM CHECK, NO.1 44743 - UNION(FOR VACUUM PUMP) 44762G - TUBE, VACUUM CHECK VALVE TO CONNECTOR 44762G - TUBE, VACUUM CHECK VALVE TO CONNECTOR 44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER 44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER 44767B - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER TUBE) 44767B - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER TUBE) 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE 44774 - HOSE, UNION TO CONNECTOR TUBE 44776 - HOSE, BRAKE BOOSTER 44776 - HOSE, BRAKE BOOSTER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
