TOYOTA DYNA200 BU76L-MDDTW3 / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

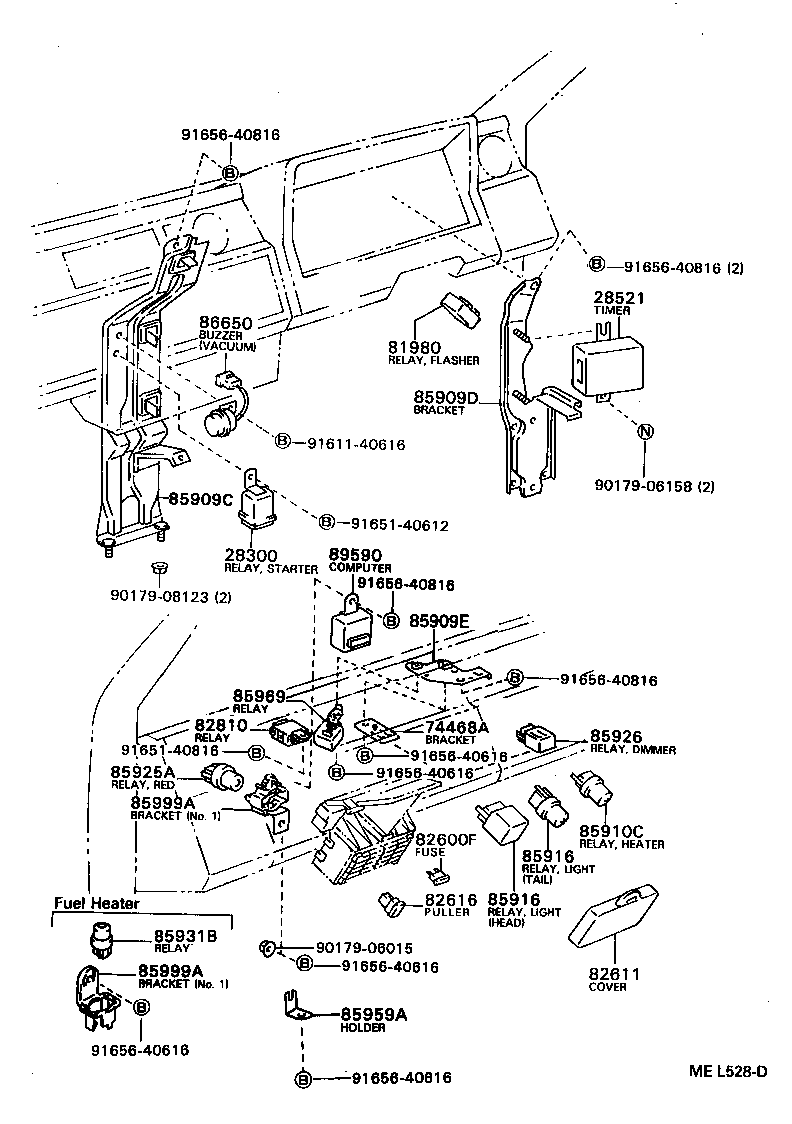

ILLUST NO. 4 OF 5(8808- )

 DYNA200 |  SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28521 - TIMER, PREHEATING 74468A - BRACKET, RELAY BLOCK 81980 - FLASHER ASSY, TURN SIGNAL 82600F - FUSE, FUSE BLOCK 82611 - COVER, FUSE BLOCK 82616 - PULLER, FUSE 82810 - RELAY ASSY, RUNNING LIGHT 85909C - BRACKET SUB-ASSY, RELAY, NO.1 85909D - BRACKET SUB-ASSY, RELAY, NO.2 85909E - BRACKET SUB-ASSY, RELAY, NO.3 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85916 - RELAY, LIGHT CONTROL 85916 - RELAY, LIGHT CONTROL 85925A - RELAY, RED INDICATOR 85926 - RELAY, HEADLAMP DIMMER 85931B - RELAY, FUEL HEATER 85959A - HOLDER, RELAY 85969 - RELAY, LIGHT REMINDER 85999A - BRACKET, RELAY, NO.2 85999A - BRACKET, RELAY, NO.2 86650 - BUZZER ASSY, VACUUM INDICATOR 89590 - COMPUTER ASSY, CONDITION INDICATOR  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
