TOYOTA RAV4 SXA15L-AKPGKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

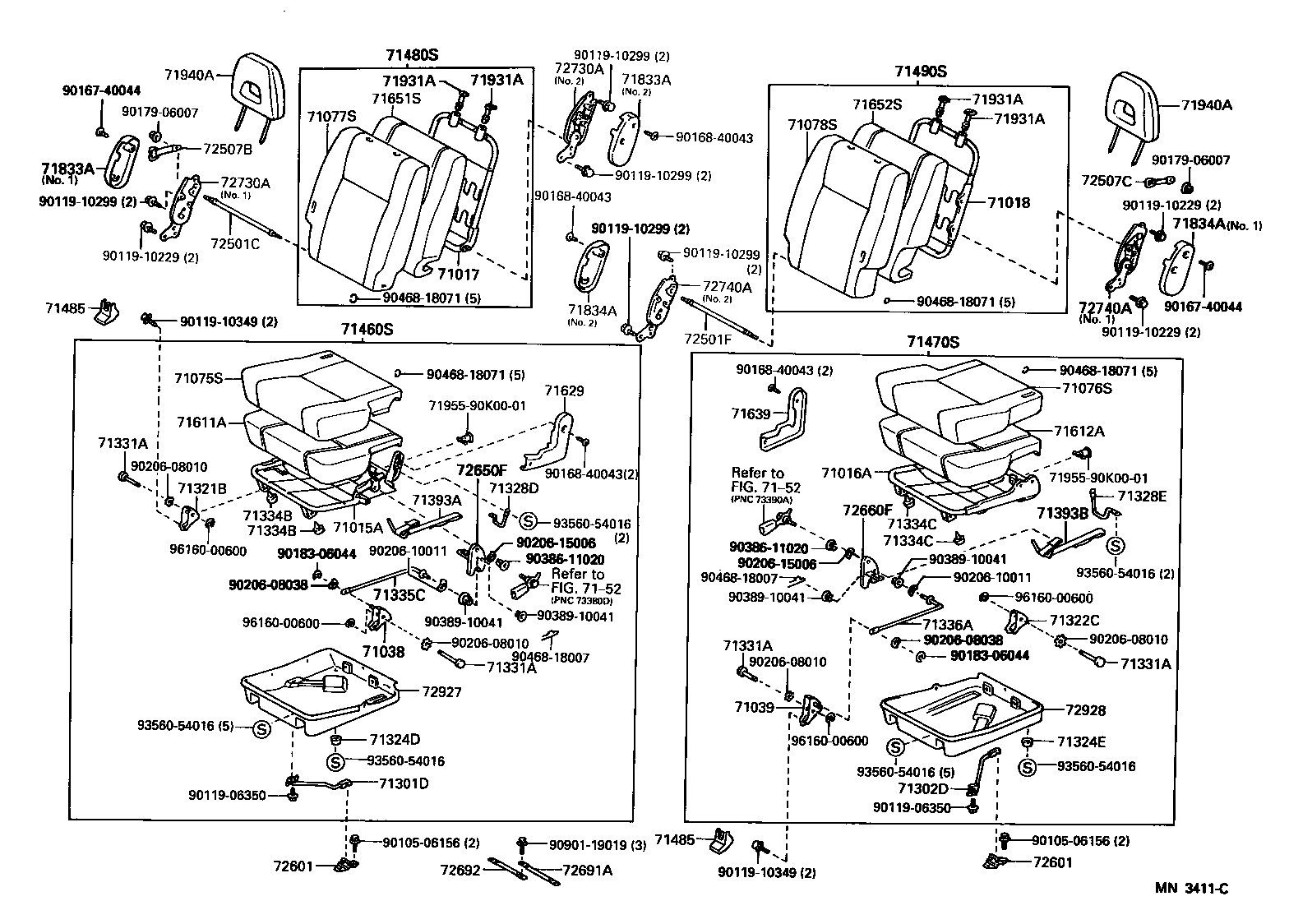

ILLUST NO. 3 OF 3(9608- )SXA10,15

 RAV4 |  SEAT SEAT TRACK 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH 71038 - HINGE SUB-ASSY, CENTER SEAT BACK, LH 71039 - HINGE SUB-ASSY, REAR SEAT CUSHION LEG, LH 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71301D - HINGE SUB-ASSY, REAR SEAT, RH 71302D - HINGE SUB-ASSY, REAR SEAT, LH 71321B - HINGE, REAR SEAT CUSHION, RH 71322C - HINGE, REAR SEAT CUSHION, LH 71324D - CUSHION, REAR SEAT, RH 71324E - CUSHION, REAR SEAT, LH 71328D - WIRE, REAR SEAT CUSHION SUPPORT 71328E - WIRE, REAR SEAT CUSHION SUPPORT 71331A - PIN, REAR SEAT HINGE 71331A - PIN, REAR SEAT HINGE 71331A - PIN, REAR SEAT HINGE 71331A - PIN, REAR SEAT HINGE 71334B - STOPPER, REAR SEAT LEG, RH 71334B - STOPPER, REAR SEAT LEG, RH 71334C - STOPPER, REAR SEAT LEG, LH 71334C - STOPPER, REAR SEAT LEG, LH 71335C - STAY, REAR SEAT CUSHION LINK, RH 71336A - STAY, REAR SEAT CUSHION LINK, LH 71393A - BAND, REAR SEAT CUSHION, RH 71393B - BAND, REAR SEAT CUSHION, LH 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) 71485 - COVER, REAR SEAT HINGE 71485 - COVER, REAR SEAT HINGE 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig 71611A - PAD, REAR SEAT CUSHION, RH 71612A - PAD, REAR SEAT CUSHION, LH 71629 - COVER, REAR SEAT CUSHION HINGE 71639 - COVER, REAR SEAT CUSHION HINGE, LH 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71833A - COVER, REAR SEAT RECLINING, NO.1 RH 71833A - COVER, REAR SEAT RECLINING, NO.1 RH 71834A - COVER, REAR SEAT RECLINING, NO.1 LH 71834A - COVER, REAR SEAT RECLINING, NO.1 LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT  ** Std Part  ** Std Part 72501C - PIPE SUB-ASSY, RECLINING CONNECTING 72501F - PIPE SUB-ASSY, RECLINING CONNECTING 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK 72650F - LOCK ASSY, REAR SEAT, RH 72660F - LOCK ASSY, REAR SEAT, LH 72691A - STRIKER, REAR SEAT CUSHION LOCK, NO.1 72692 - STRIKER, REAR SEAT CUSHION LOCK, NO.2 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH 72927 - COVER, REAR SEAT CUSHION UNDER, RH 72928 - COVER, REAR SEAT CUSHION UNDER, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
