TOYOTA DYNA LY220R-TBMDSQ3 / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

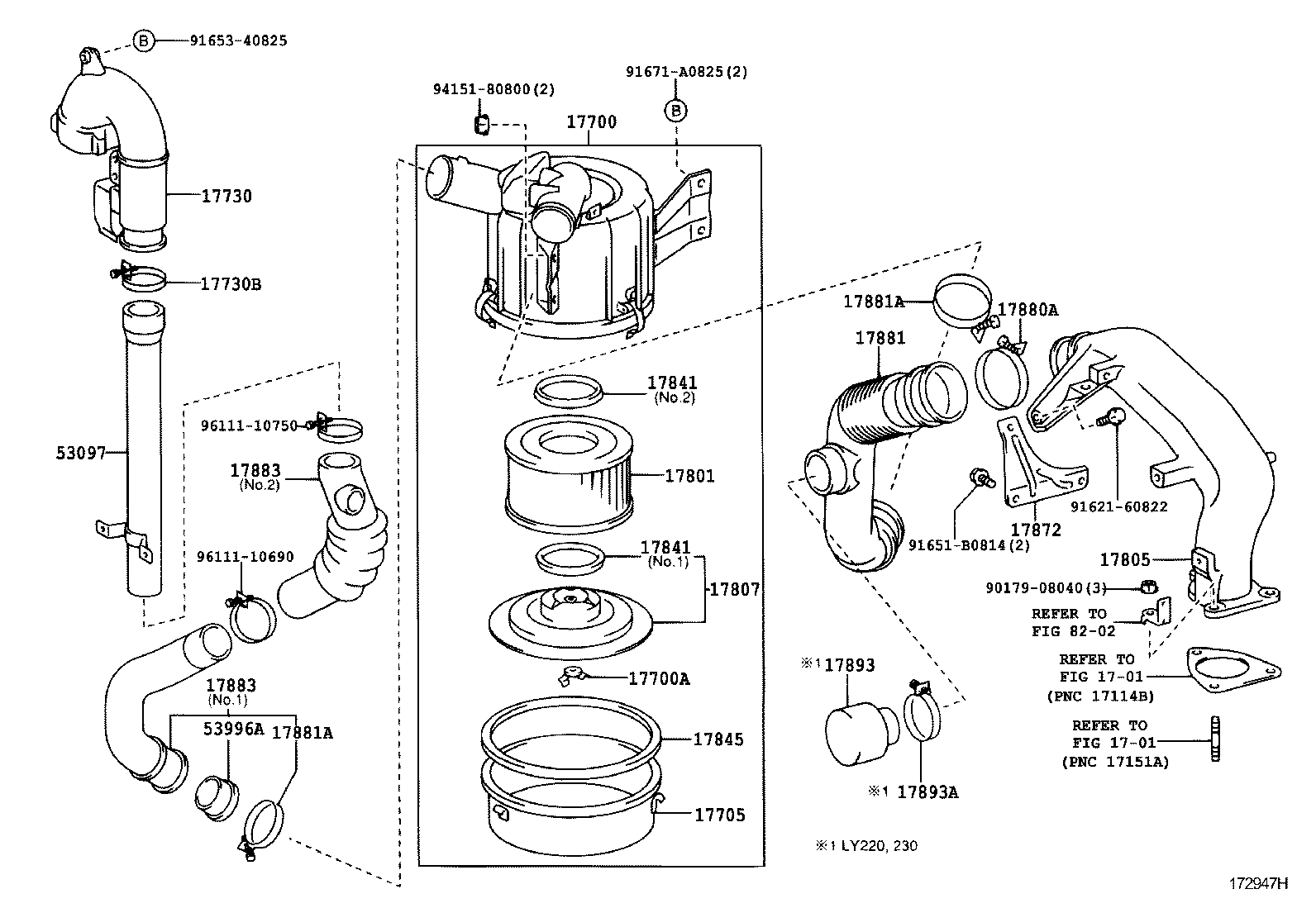

AIR CLEANER

(0107- )5L..IV3

 DYNA |  AIR CLEANER ** Refer Fig ** Refer Fig 17700 - CLEANER ASSY, AIR 17700A - NUT, WING(FOR AIR CLEANER) 17705 - CAP SUB-ASSY, AIR CLEANER 17730 - PRECLEANER ASSY, AIR W/HOSE 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17805 - CONNECTOR SUB-ASSY, INTAKE AIR 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET 17841 - GASKET, FILTER ELEMENT 17841 - GASKET, FILTER ELEMENT 17845 - GASKET, AIR CLEANER CAP 17872 - BRACKET, INTAKE AIR CONNECTOR 17880A - CLAMP, HOSE 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17883 - HOSE, AIR CLEANER, NO.3 17883 - HOSE, AIR CLEANER, NO.3 17893 - RESONATOR, INTAKE AIR 17893A - CLAMP, HOSE 53097 - INLET SUB-ASSY 53996A - PACKING, AIR CLEANER INLET PIPE ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
