TOYOTA YARIS JPP NLP10R-AGMGXW / TOOL-ENGINE-FUEL / ALTERNATOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ALTERNATOR

12V 70A,NAME PLATE MARK;NC (0109-0212)1NDTV..JPP

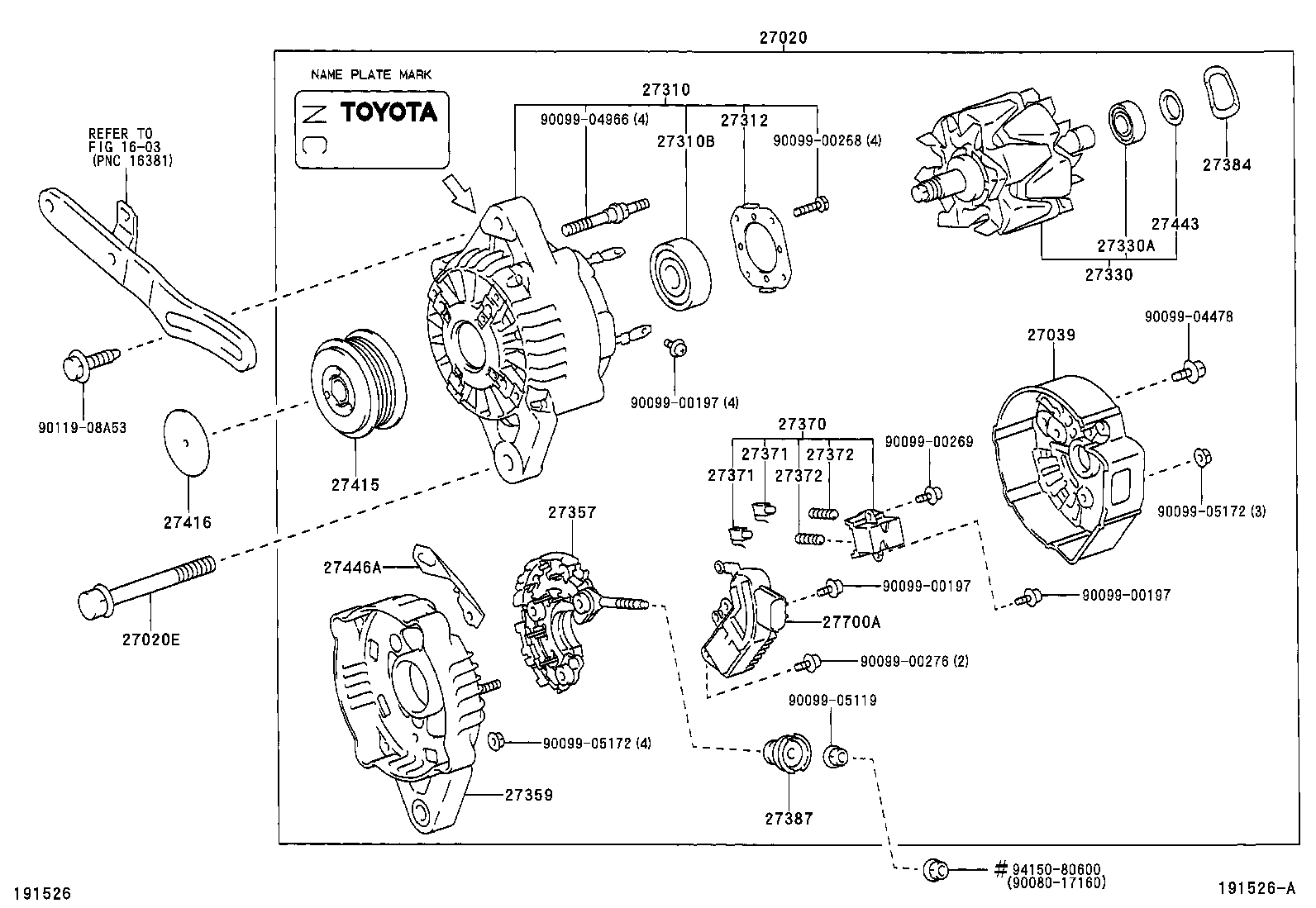

 YARIS JPP |  ALTERNATOR ** Refer Fig 27020 - ALTERNATOR ASSY 27020E - BOLT(FOR ALTERNATOR) 27039 - COVER, ALTERNATOR REAR END 27310 - FRAME ASSY, DRIVE END, ALTERNATOR 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) 27312 - PLATE, RETAINER 27330 - ROTOR ASSY, ALTERNATOR 27330A - BEARING(FOR ALTERNATOR ROTOR) 27357 - HOLDER, ALTERNATOR, W/RECTIFIER 27359 - FRAME, ALTERNATOR RECTIFIER END 27370 - HOLDER ASSY, ALTERNATOR BRUSH 27371 - BRUSH, ALTERNATOR 27371 - BRUSH, ALTERNATOR 27372 - SPRING, ALTERNATOR BRUSH 27372 - SPRING, ALTERNATOR BRUSH 27384 - WASHER 27387 - INSULATOR, TERMINAL 27415 - PULLEY, ALTERNATOR W/CLUTCH 27416 - CAP, ALTERNATOR PULLEY 27443 - COVER, ALTERNATOR BEARING 27446A - CLAMP 27700A - REGULATOR ASSY, GENERATOR  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
