TOYOTA RAV4 CLA21R-AWMNYW / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

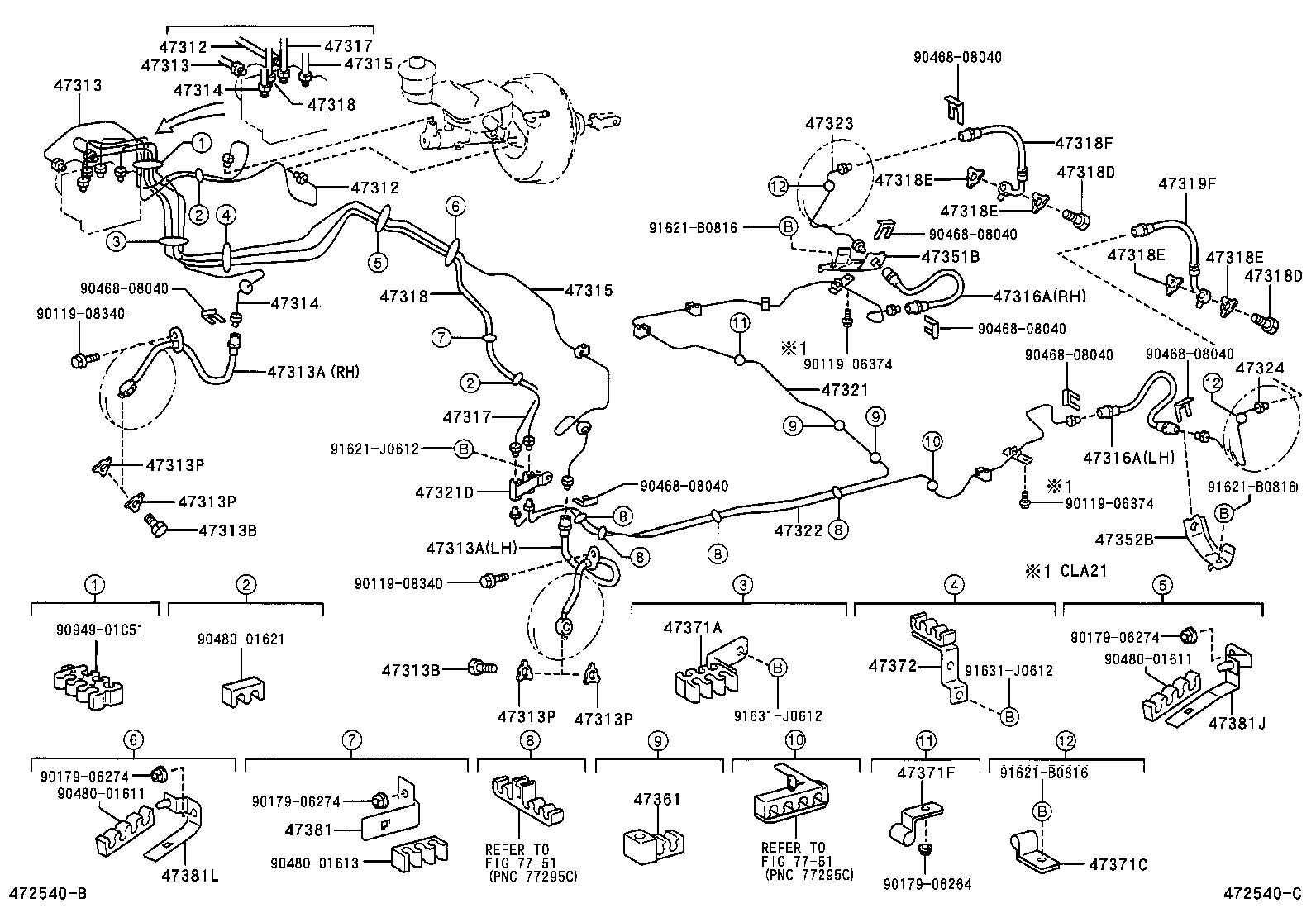

BRAKE TUBE CLAMP

W(ABS) ILLUST NO. 1 OF 2(0105- )CLA2#..RHD

RAV4 | BRAKE TUBE CLAMP 47312 - TUBE, FRONT BRAKE, NO.2 47312 - TUBE, FRONT BRAKE, NO.2 47313 - TUBE, FRONT BRAKE, NO.3 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47314 - TUBE, FRONT BRAKE, NO.4 47314 - TUBE, FRONT BRAKE, NO.4 47315 - TUBE, FRONT BRAKE, NO.5 47315 - TUBE, FRONT BRAKE, NO.5 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) 47317 - TUBE, FRONT BRAKE, NO.7 47317 - TUBE, FRONT BRAKE, NO.7 47318 - TUBE, FRONT BRAKE, NO.8 47318 - TUBE, FRONT BRAKE, NO.8 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318F - HOSE, FLEXIBLE(FOR REAR RH) 47319F - HOSE, FLEXIBLE(FOR REAR LH) 47321 - TUBE, REAR BRAKE, NO.1 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) 47322 - TUBE, REAR BRAKE, NO.2 47323 - TUBE, REAR BRAKE, NO.3 47324 - TUBE, REAR BRAKE, NO.4 47351B - BRACKET, FLEXIBLE HOSE, NO.1 47352B - BRACKET, FLEXIBLE HOSE, NO.2 47361 - CLAMP, TUBE 47371A - CLAMP, BRAKE TUBE, NO.1 47371C - CLAMP, BRAKE TUBE, NO.7 47371F - CLAMP, BRAKE TUBE, NO.10 47372 - CLAMP, BRAKE TUBE, NO.2 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 47381L - BRACKET, BRAKE TUBE CLAMP, NO.3 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
