TOYOTA HIACE HIACE S B V KLH12L-RGSNHW / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

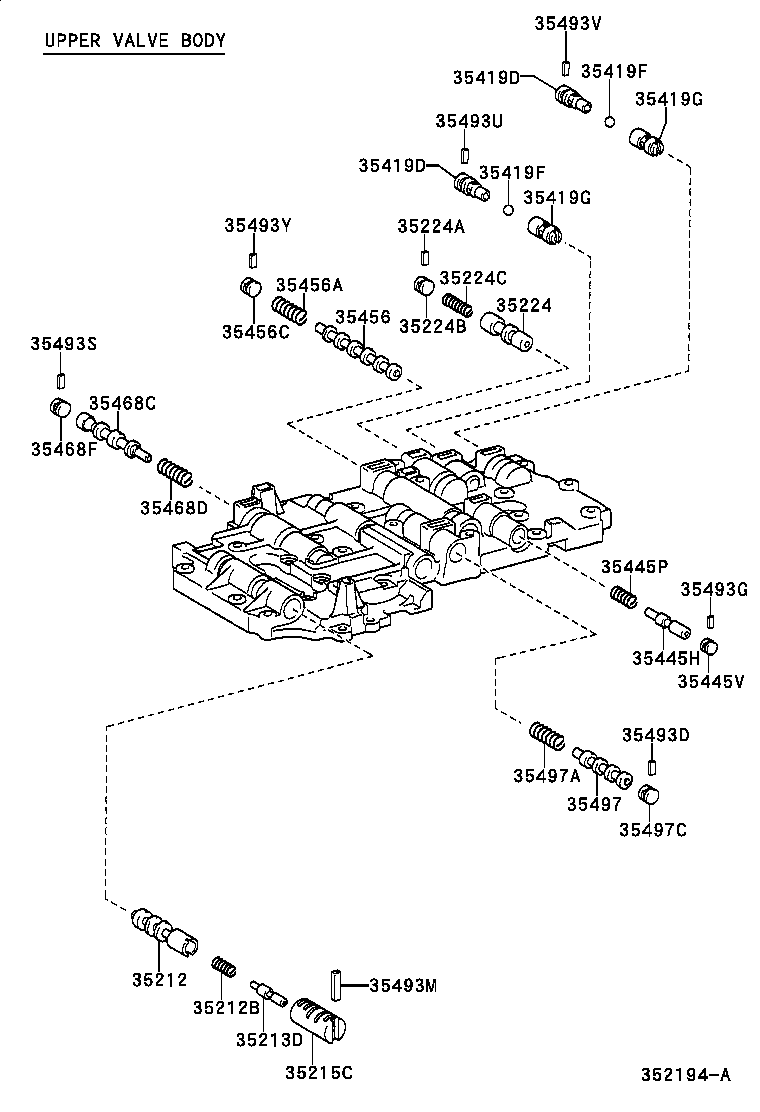

VALVE BODY OIL STRAINER ATM

A340E ILLUST NO. 2 OF 5(0108- )ATM

 HIACE HIACE S B V |  VALVE BODY OIL STRAINER ATM 35212 - VALVE, LOCK UP RELAY 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) 35213D - PLUNGER, LOCK UP RELAY VALVE 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 35224 - VALVE, REVERSE CONTROL 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) 35224B - PLUG (FOR REVERSE CONTROL VALVE) 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) 35419D - VALVE, CHECK, NO.2 35419D - VALVE, CHECK, NO.2 35419F - BALL, CHECK VALVE 35419F - BALL, CHECK VALVE 35419G - VALVE, CHECK, NO.4 35419G - VALVE, CHECK, NO.4 35445H - VALVE, 2ND COAST MODULATOR 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) 35445V - PLUG (FOR LOW COAST MODULATOR VALVE) 35456 - VALVE, 2-3 SHIFT 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) 35456C - PLUG (FOR 2-3 SHIFT VALVE) 35468C - VALVE, SECONDARY REGULATOR 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) 35493D - SEAT, 3-4 SHIFT VALVE PLUG 35493G - SEAT, LOW COAST MODULATOR VALVE PLUG 35493M - SEAT, LOCK UP CONTROL VALVE PLUG 35493S - SEAT, SECONDARY REGULATOR VALVE PLUG 35493U - SEAT, CHECK VALVE, NO.1 35493V - SEAT, CHECK VALVE, NO.2 35493Y - SEAT, 2-3 SHIFT VALVE PLUG 35497 - VALVE, 3-4 SHIFT 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) 35497C - PLUG (FOR 3-4 SHIFT VALVE)
