TOYOTA LAND CRUISER 100 HDJ100L-GNAEZW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

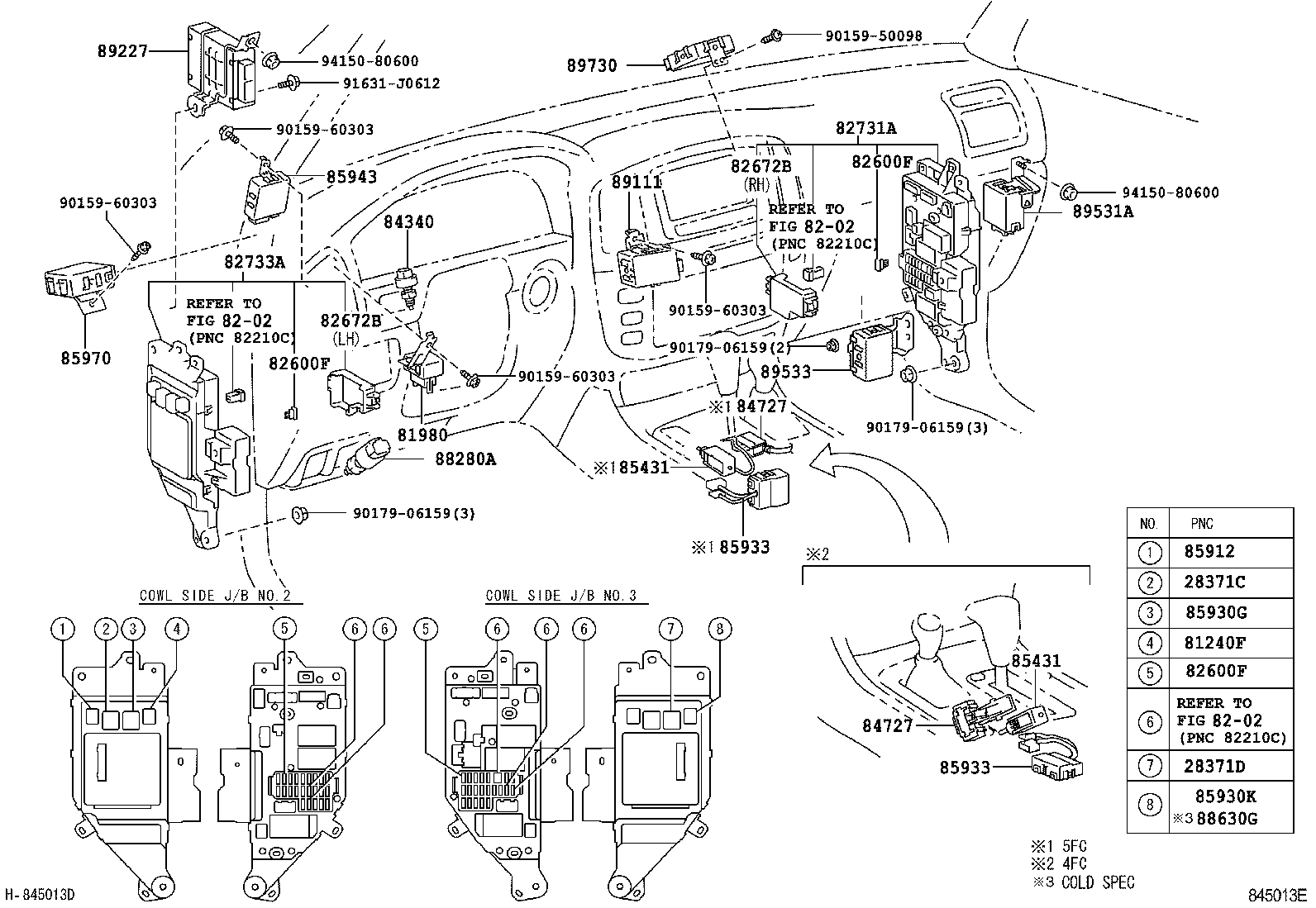

COWL ILLUST NO. 3 OF 9(0208- )LHD

 LAND CRUISER 100 |  SWITCH RELAY COMPUTER 28371C - RELAY, IGNITION, NO.2 28371D - RELAY, IGNITION, NO.3 81240F - RELAY, DOME LAMP 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig ** Refer Fig ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82672B - COVER, JUNCTION BLOCK 82672B - COVER, JUNCTION BLOCK 82731A - BLOCK, COWL SIDE JUNCTION, RH 82733A - BLOCK, COWL SIDE JUNCTION, LH 84340 - SWITCH ASSY, STOP LAMP 84727 - SWITCH, SHIFT LOCK CONTROL 84727 - SWITCH, SHIFT LOCK CONTROL 85431 - SOLENOID, SHIFT LOCK 85431 - SOLENOID, SHIFT LOCK 85912 - RELAY, DEFOGGER 85930G - RELAY, ACC 85930K - RELAY, ACC, NO.2 85933 - COMPUTER, SHIFT LOCK CONTROL 85933 - COMPUTER, SHIFT LOCK CONTROL 85943 - COMPUTER, WINDSHIELD WIPER 85970 - RELAY ASSY, DOOR OPENING 88280A - SWITCH ASSY, CLUTCH 88630G - RELAY ASSY, COOLER 89111 - COMPUTER, NETWORK GATEWAY 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC 89531A - RELAY, TRANSMISSION CONTROL 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL 89730 - COMPUTER ASSY, SECURITY WARNING  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
