TOYOTA LAND CRUISER 100 HDJ100L-GNAEZW / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

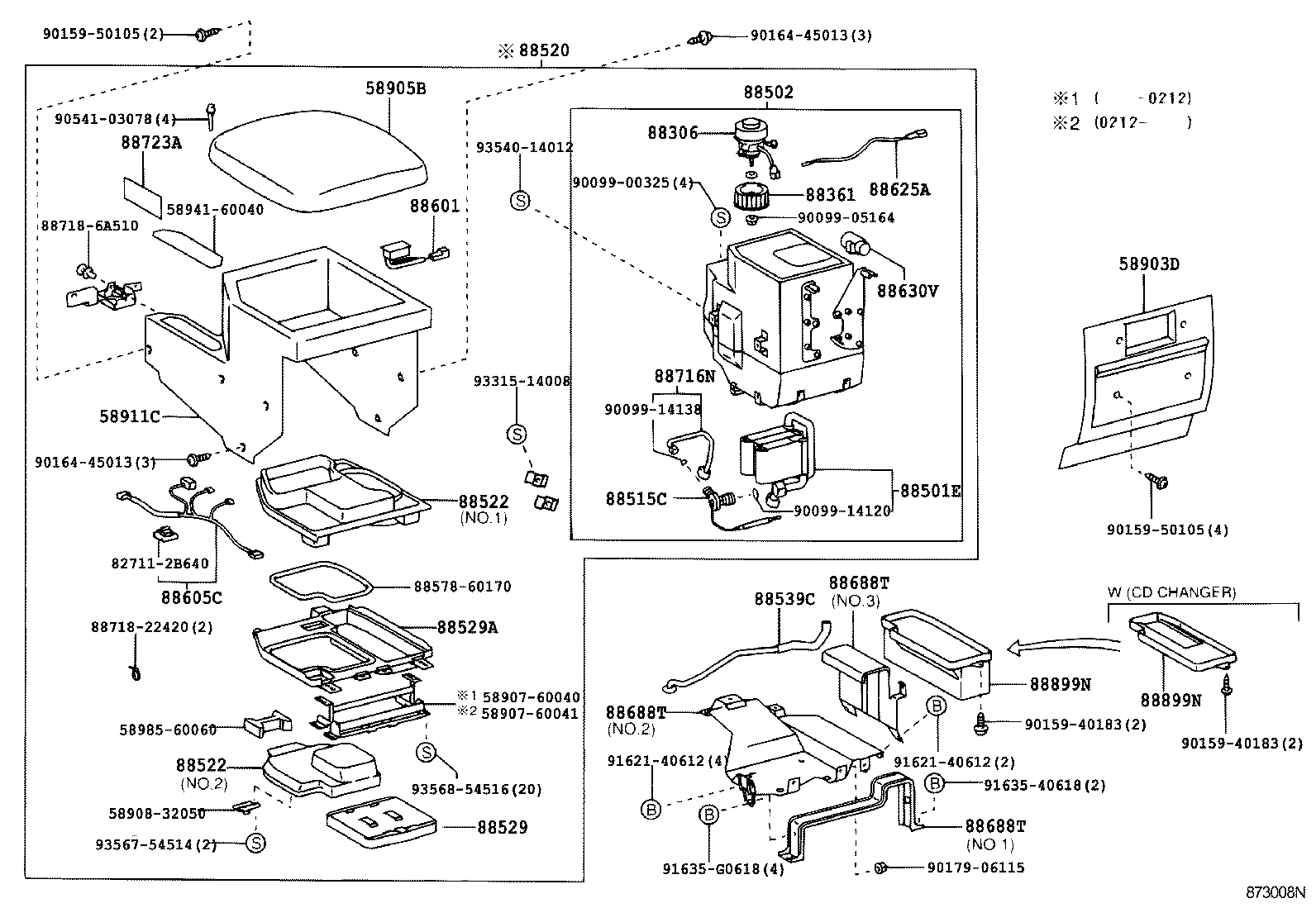

COOL BOX ILLUST NO. 3 OF 4(0001- )LHD

 LAND CRUISER 100 |  HEATING AIR CONDITIONING COOLER UNIT 58903D - PANEL SUB-ASSY, CONSOLE REAR END(FOR COOL BOX) 58905B - DOOR SUB-ASSY, CONSOLE COMPARTMENT(FOR COOL BOX)  ** Std Part  ** Std Part  ** Std Part 58911C - PANEL, BOX, NO.1(FOR COOL BOX)  ** Std Part  ** Std Part  ** Std Part 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 88361 - FAN, COOLER BLOWER, NO.1 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) 88502 - CASE SUB-ASSY, COOLING UNIT 88515C - VALVE, COOLING BOX EXPANSION 88520 - BOX ASSY, COOLING 88522 - DOOR, COOLING UNIT 88522 - DOOR, COOLING UNIT 88529 - TRAY, COOLING BOX 88529A - TRAY, COOLING BOX 88539C - HOSE, COOLER UNIT DRAIN, NO.2  ** Std Part 88601 - SWITCH SUB-ASSY, COOLER CONTROL 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 88625A - THERMISTOR, COOLER NO.2 88630V - RELAY ASSY 88688T - BRACKET (FOR COOL BOX) 88688T - BRACKET (FOR COOL BOX) 88688T - BRACKET (FOR COOL BOX) 88716N - PIPE, COOLER REFRIGERANT LIQUID, N  ** Std Part  ** Std Part 88723A - LABEL, COOLER SERVICE CAUTION 88899N - PLATE, COVER 88899N - PLATE, COVER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
