TOYOTA HIACE HIACE S B V KLH12L-RGMNHW / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

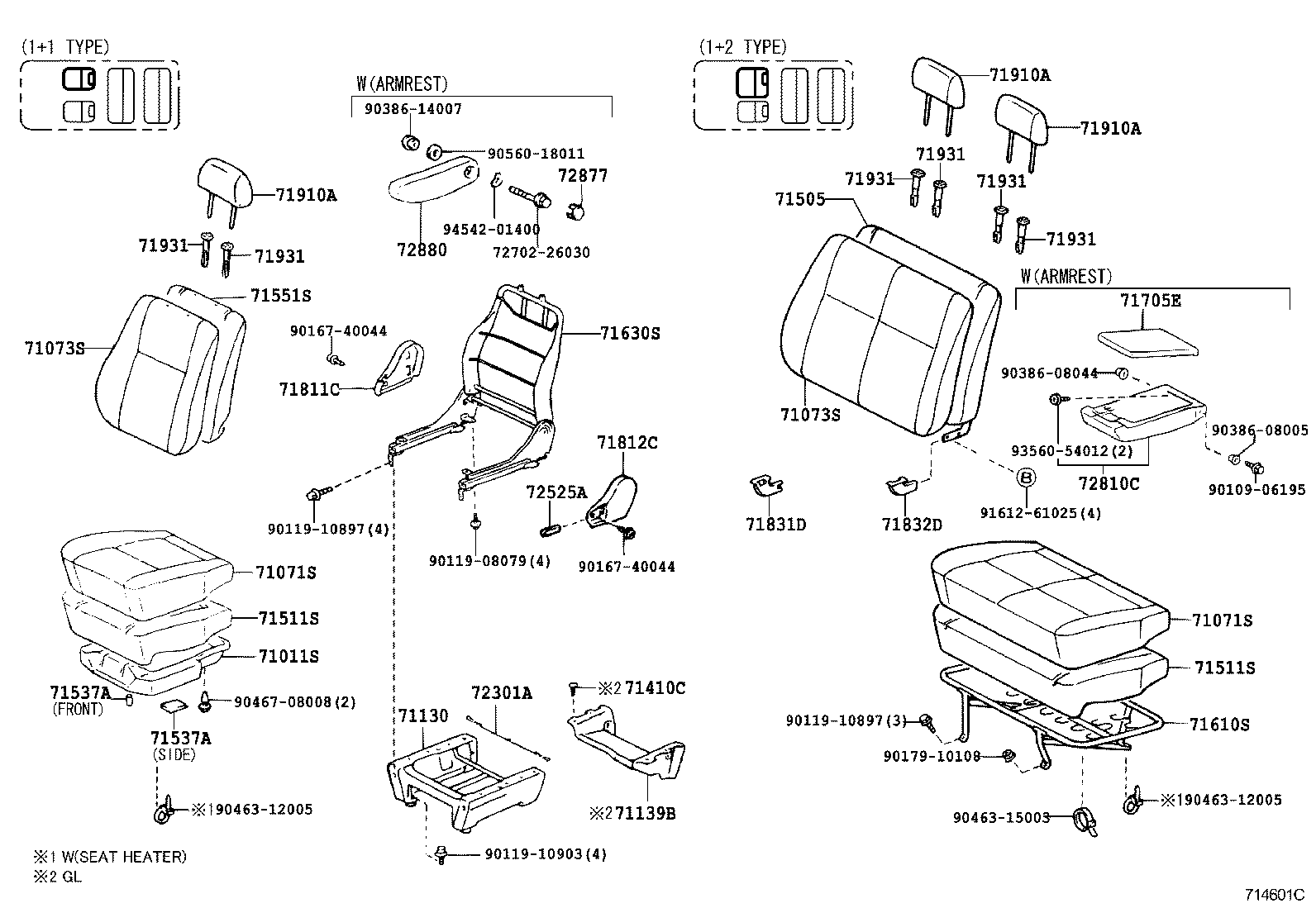

PASSENGER SEAT ILLUST NO. 1 OF 3(0608- )LHD

 HIACE HIACE S B V |  SEAT SEAT TRACK 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71130 - LEG ASSY, FRONT SEAT, RH 71139B - COVER, FRONT SEAT LEG, NO.2 71410C - CLIP(FOR FRONT SEAT CUSHION) 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71537A - PROTECTOR, FRONT SEAT CUSHION 71537A - PROTECTOR, FRONT SEAT CUSHION 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71705E - BOARD SUB-ASSY, FRONT SEAT BACK 71811C - COVER, RECLINING ADJUSTER, RH 71812C - COVER, RECLINING ADJUSTER, LH 71831D - COVER, FRONT SEAT HINGE, RH 71832D - COVER, FRONT SEAT HINGE, LH 71910A - HEADREST ASSY, FRONT SEAT 71910A - HEADREST ASSY, FRONT SEAT 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH  ** Std Part 72810C - ARMREST ASSY, FRONT SEAT, CENTER 72877 - COVER, SEAT ARMREST, RH 72880 - ARMREST ASSY, SEAT, C RH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
