TOYOTA PRIUS NHW20R-AHEEBQ / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

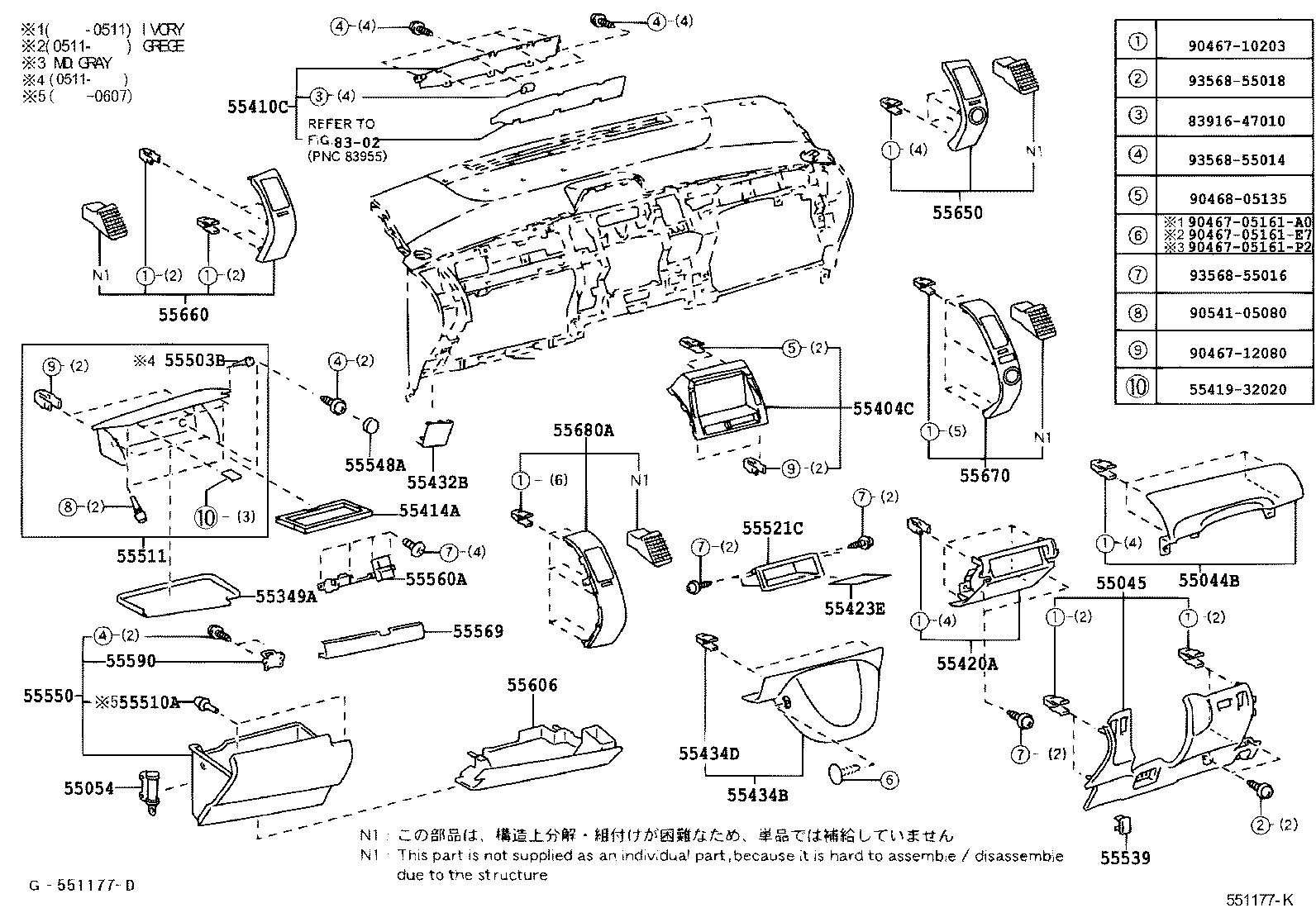

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 2 OF 2(0308- )RHD

 PRIUS |  INSTRUMENT PANEL GLOVE COMPARTMENT 55044B - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR 55349A - CUSHION, INSTRUMENT PANEL 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END  ** Std Part 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER 55423E - CUSHION, CENTER CLUSTER, NO.1 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER 55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER 55503B - CUSHION(FOR GLOVE COMPARTMENT) 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) 55511 - DOOR, GLOVE COMPARTMENT 55521C - COVER, STEREO OPENING 55539 - COVER, SPARE SWITCH HOLE 55548A - COVER, INSTRUMENT PANEL HOLE 55550 - DOOR ASSY, GLOVE COMPARTMENT 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
