TOYOTA HILUX KUN25R-PRMSHW / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

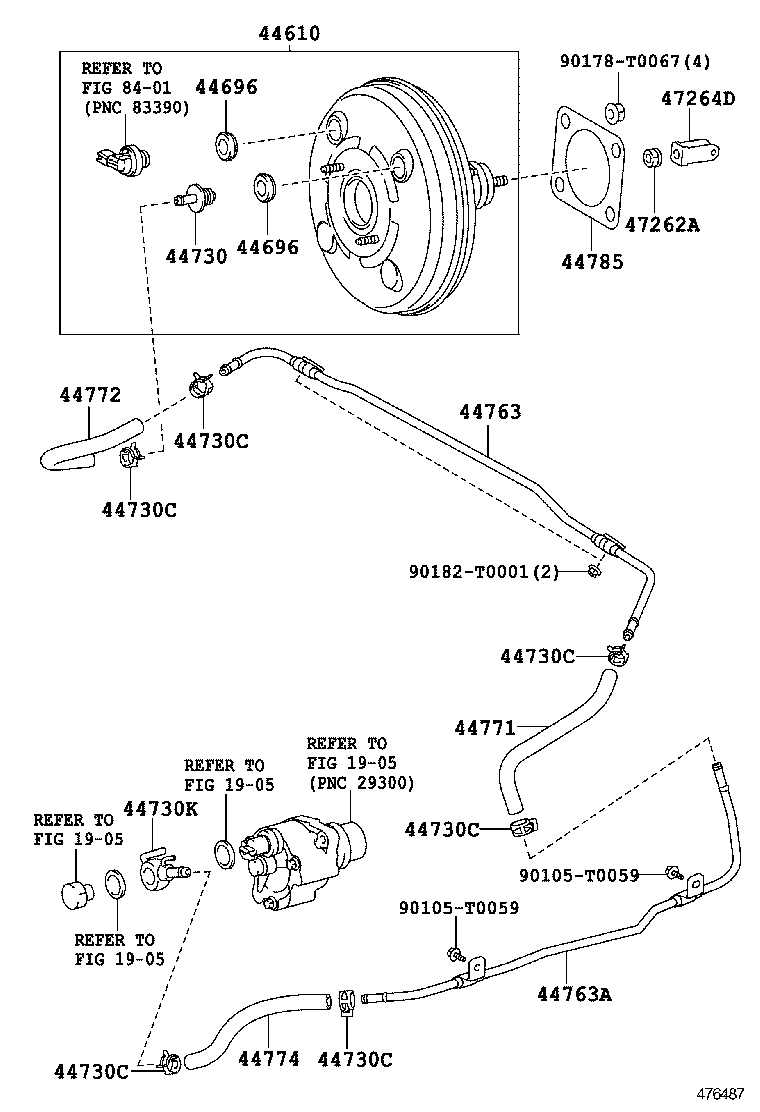

BRAKE BOOSTER VACUUM TUBE

W(VSC) (0808- )KUN26..RHD..THDCB ; (0810- )RHD..D

HILUX | BRAKE BOOSTER VACUUM TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 44610 - BOOSTER ASSY, BRAKE 44696 - GROMMET, CHECK VALVE 44696 - GROMMET, CHECK VALVE 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP) 44763 - TUBE, BOOSTER VACUUM 44763A - TUBE, HOSE TO HOSE, NO.1 44771 - HOSE, VACUUM TUBE CONNECTOR 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE 44774 - HOSE, UNION TO CONNECTOR TUBE 44785 - GASKET, BRAKE BOOSTER 47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
