TOYOTA IQ NGJ10L-BGXNGW / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

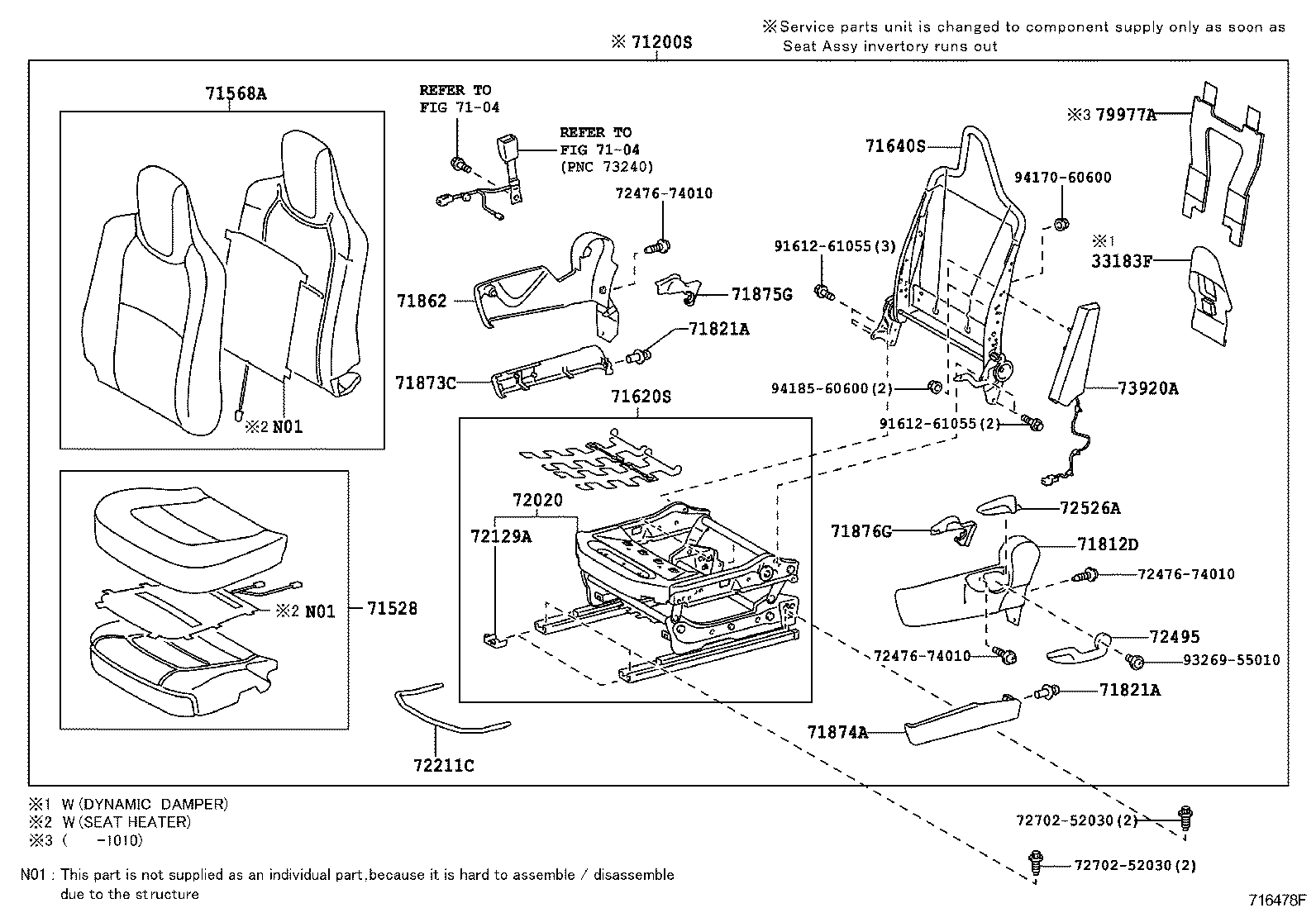

FRONT SEAT SEAT TRACK

LH,W(LIFTER) & W/O(HEADREST HOLE) (0911- )LHD

 IQ |  FRONT SEAT SEAT TRACK 33183F - DAMPER, DYNAMIC ** Refer Fig ** Refer Fig 71200S - SEAT ASSY, FRONT LH 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH 71568A - PAD, FRONT SEAT BACK W/COVER, LH 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71812D - SHIELD, FRONT SEAT CUSHION, LH 71821A - CLIP (FOR FRONT SEAT SIDE SHIELD) 71821A - CLIP (FOR FRONT SEAT SIDE SHIELD) 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71873C - SHIELD, REAR SEAT CUSHION, LOWER RH 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) 72020 - ADJUSTER ASSY, FRONT SEAT, LH 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 72211C - HANDLE, SEAT TRACK ADJUSTING  ** Std Part  ** Std Part  ** Std Part 72495 - HANDLE, VERTICAL ADJUSTING, LH 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH  ** Std Part  ** Std Part 73920A - AIR BAG ASSY, FRONT SEAT, LH 79977A - FELT, SEAT BACK  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
