TOYOTA LAND CRUISER 150 KDJ150L-GKAEYW / BODY / ROOF PANEL BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ROOF PANEL BACK PANEL

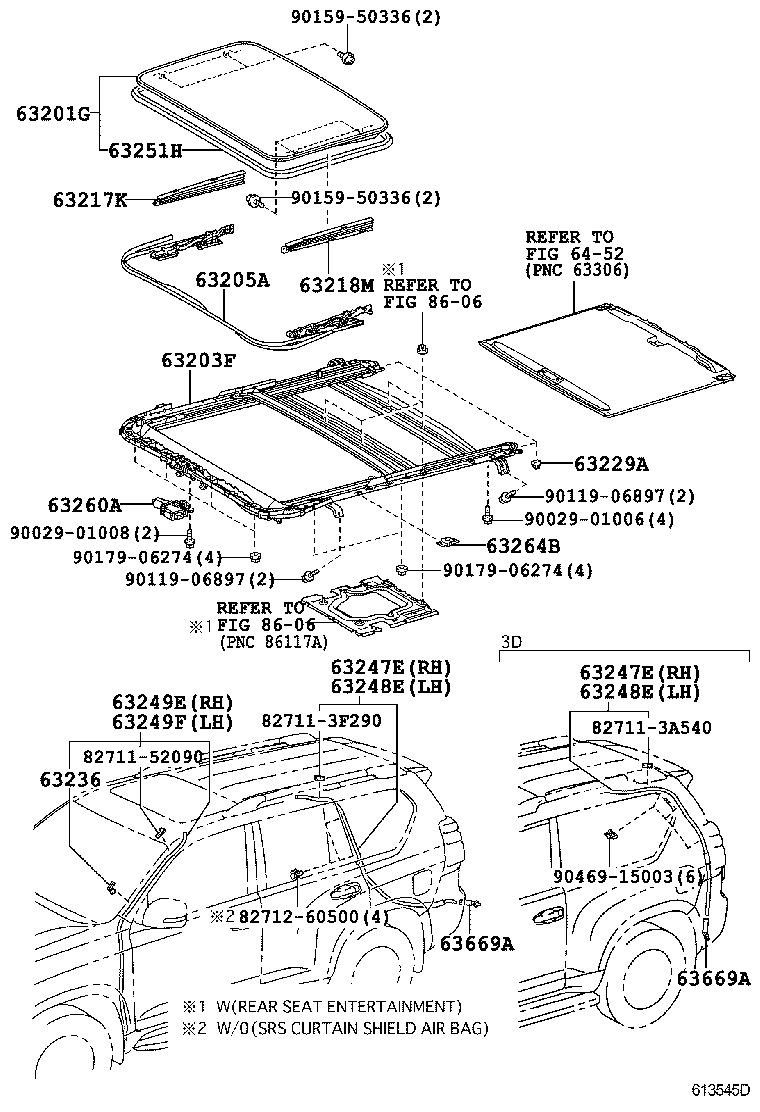

MOON ROOF ILLUST NO. 2 OF 3(0908- )

 LAND CRUISER 150 |  ROOF PANEL BACK PANEL 63201G - GLASS SUB-ASSY, SLIDING ROOF 63203F - HOUSING SUB-ASSY, SLIDING ROOF 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE 63217K - GARNISH, SLIDING ROOF SIDE, RH 63218M - GARNISH, SLIDING ROOF SIDE, LH 63229A - STOPPER, SLIDING ROOF SUNSHADE 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH 63249E - HOSE, SLIDING ROOF DRAIN 63249F - HOSE, SLIDING ROOF DRAIN 63251H - WEATHERSTRIP, SLIDING ROOF 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE 63264B - PLATE, SLIDING ROOF LOCK CATCH, LH 63669A - GROMMET, SLIDING ROOF DRAIN 63669A - GROMMET, SLIDING ROOF DRAIN ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
