TOYOTA LAND CRUISER 150 KDJ150L-GKAEYW / BODY / INSIDE TRIM BOARD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSIDE TRIM BOARD

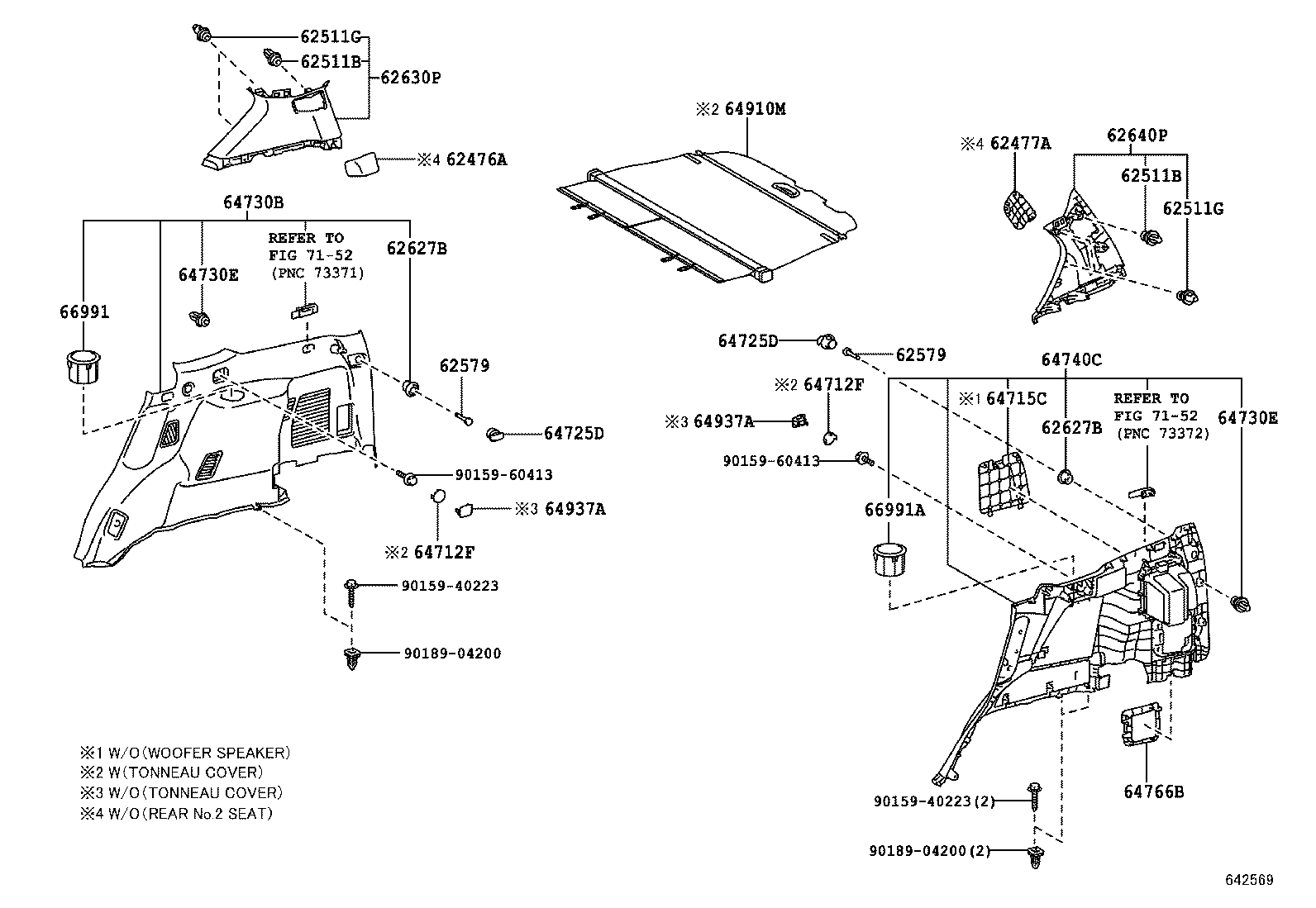

W(5:5 DOUBLE FLAT REAR NO.2 SEAT) ILLUST NO. 2 OF 2(0908- )GRJ150,KDJ150

 LAND CRUISER 150 |  INSIDE TRIM BOARD 62476A - CAP, ROOF SIDE INNER GARNISH, RH 62477A - CAP, ROOF SIDE INNER GARNISH, LH 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) 62579 - SPACER, QUARTER TRIM 62579 - SPACER, QUARTER TRIM 62627B - COVER, QUARTER TRIM 62627B - COVER, QUARTER TRIM 62630P - PANEL ASSY, QUARTER TRIM, REAR RH 62640P - PANEL ASSY, QUARTER TRIM, REAR LH 64712F - COVER, DECK SIDE TRIM, FRONT RH 64712F - COVER, DECK SIDE TRIM, FRONT RH 64715C - COVER, DECK SIDE TRIM, LH 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 64730B - PANEL ASSY, DECK TRIM SIDE, RH 64730E - CLIP(FOR DECK TRIM SIDE BOARD) 64730E - CLIP(FOR DECK TRIM SIDE BOARD) 64740C - PANEL ASSY, DECK TRIM SIDE, LH 64766B - COVER, QUARTER TRIM JACK 64910M - COVER ASSY, TONNEAU 64937A - CAP, TONNEAU COVER HOLDER, NO.1 64937A - CAP, TONNEAU COVER HOLDER, NO.1 66991 - HOLDER, QUARTER TRIM CUP, RH 66991A - HOLDER, QUARTER TRIM CUP, LH ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
