TOYOTA URBAN CRUISER NLP115R-AHFRXW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

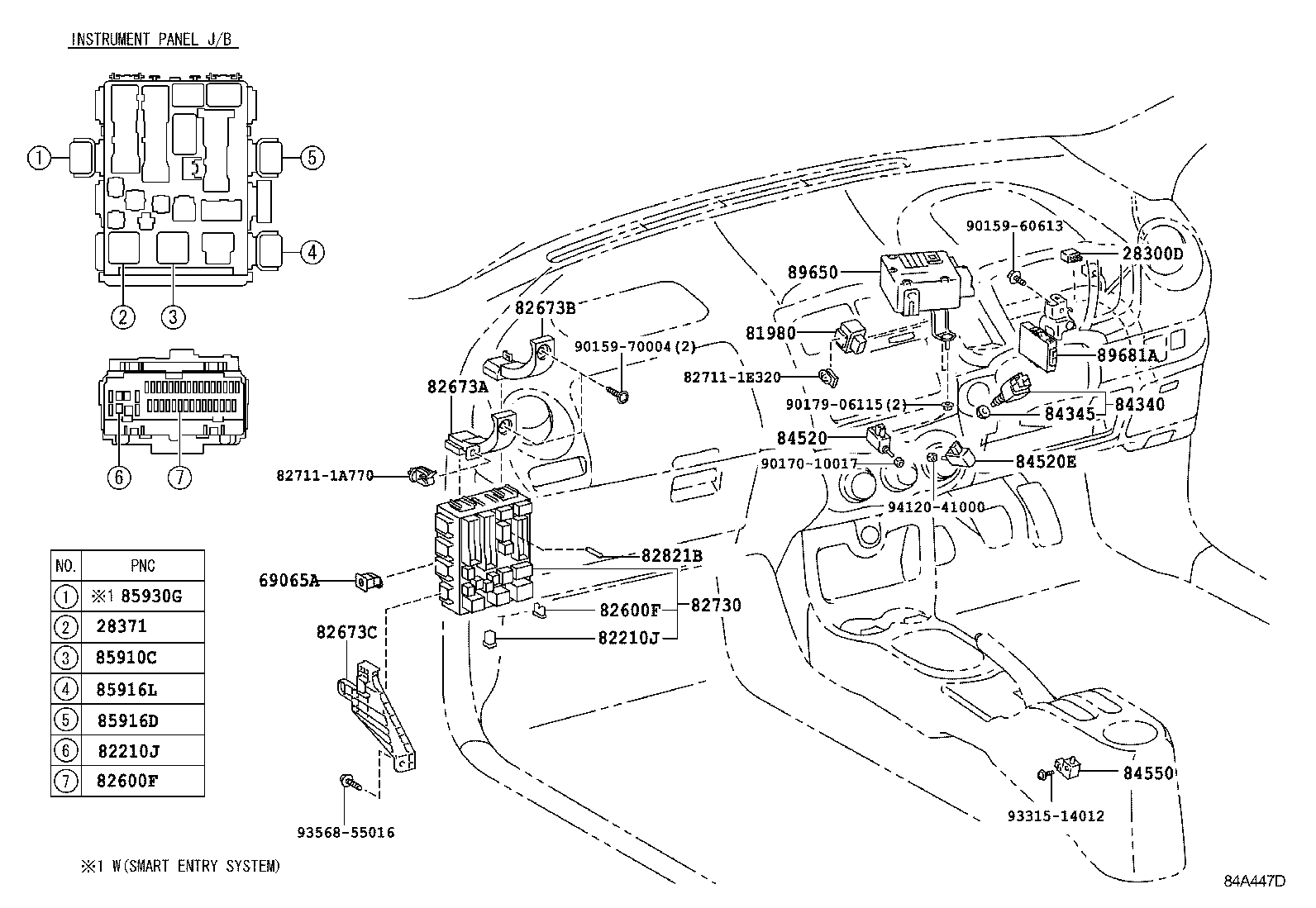

SWITCH RELAY COMPUTER

COWL ILLUST NO. 3 OF 6(0901- )RHD

 URBAN CRUISER |  SWITCH RELAY COMPUTER 28300D - RELAY, STARTER CUT 28371 - RELAY, IGNITION, NO.1 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH 81980 - FLASHER ASSY, TURN SIGNAL 82210J - FUSIBLE LINK 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82673A - BRACKET, JUNCTION BLOCK 82673B - BRACKET, JUNCTION BLOCK 82673C - BRACKET, JUNCTION BLOCK  ** Std Part  ** Std Part 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION 82821B - COVER, CONNECTOR 84340 - SWITCH ASSY, STOP LAMP 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING 84520 - SWITCH ASSY, CLUTCH START 84520E - SWITCH ASSY, CLUTCH START, NO.2 84550 - SWITCH ASSY, PARKING BRAKE 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85916D - RELAY, FOG LAMP 85916L - RELAY, REAR FOG LAMP 85930G - RELAY, ACC 89650 - COMPUTER ASSY, POWER STEERING 89681A - COMPUTER, POWER MANAGEMENT CONTROL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
