TOYOTA AURIS HYBRID UKP ZWE150R-DHXGBW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

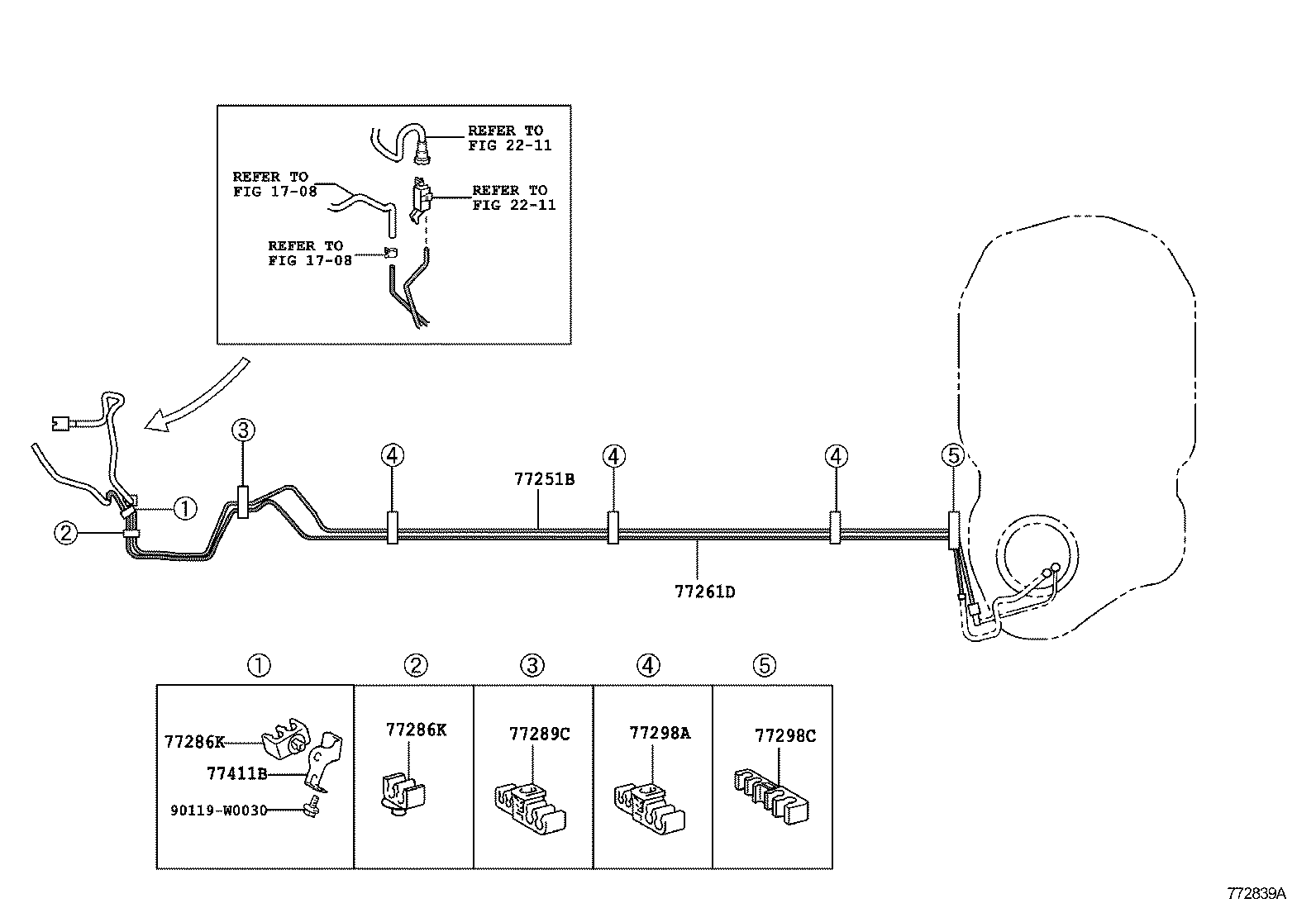

FUEL TUBE ILLUST NO. 2 OF 2(1006- )ZWE150

 AURIS HYBRID UKP |  FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77261D - TUBE, FUEL TANK TO CANISTER 77286K - CLAMP, FUEL TUBE, NO.2 77286K - CLAMP, FUEL TUBE, NO.2 77289C - CLAMP, FUEL TUBE, NO.4 77298A - CLAMP, FUEL TUBE, NO.4 77298C - CLAMP, FUEL TUBE, NO.4 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1  ** Std Part
