TOYOTA AYGO PAB40L-AHMGKW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

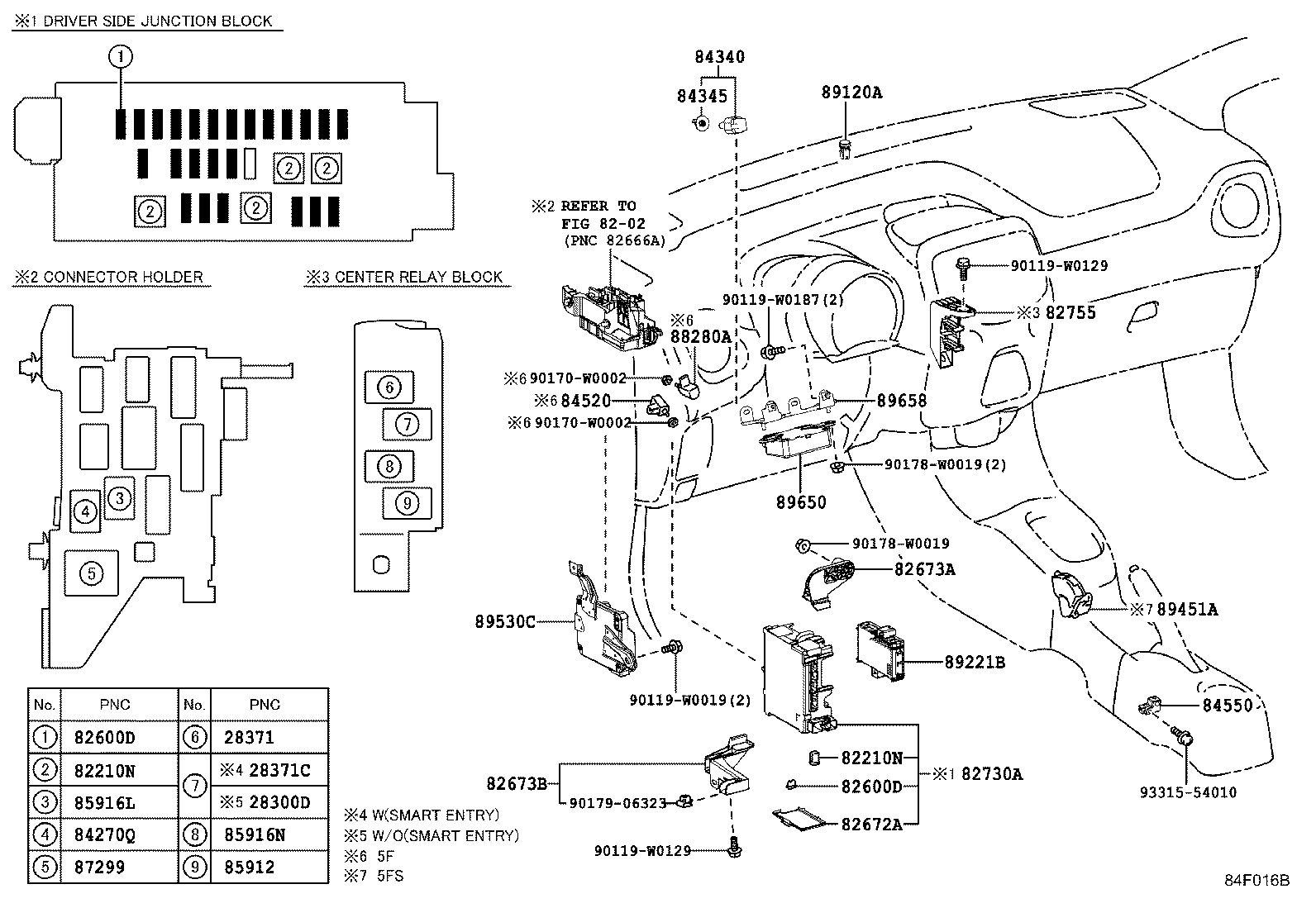

COWL ILLUST NO. 3 OF 7(1405- )LHD

AYGO | SWITCH RELAY COMPUTER 28300D - RELAY, STARTER CUT 28371 - RELAY, IGNITION, NO.1 28371C - RELAY, IGNITION, NO.2 ** Refer Fig 82210N - INSTRUMENT PANEL FUSIBLE LINK 82210N - INSTRUMENT PANEL FUSIBLE LINK 82600D - INSTRUMENT PANEL FUSE 82600D - INSTRUMENT PANEL FUSE 82672A - COVER, JUNCTION BLOCK 82673A - BRACKET, JUNCTION BLOCK 82673B - BRACKET, JUNCTION BLOCK 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION 82755 - BLOCK, CENTER RELAY 84270Q - RELAY, LAMP CUT 84340 - SWITCH ASSY, STOP LAMP 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING 84520 - SWITCH ASSY, CLUTCH START 84550 - SWITCH ASSY, PARKING BRAKE 85912 - RELAY, DEFOGGER 85916L - RELAY, REAR FOG LAMP 85916N - RELAY, TAIL LAMP 87299 - RELAY, HEATER 88280A - SWITCH ASSY, CLUTCH 89120A - SENSOR, AUTOMATIC LIGHT CONTROL 89221B - COMPUTER, BODY 89451A - SENSOR, SHIFT LEVER POSITION 89530C - COMPUTER ASSY, TRANSMISSION CONTROL 89650 - COMPUTER ASSY, POWER STEERING 89658 - BRACKET, POWER STEERING COMPUTER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
