TOYOTA CELICA RA61L-BLMMSV / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

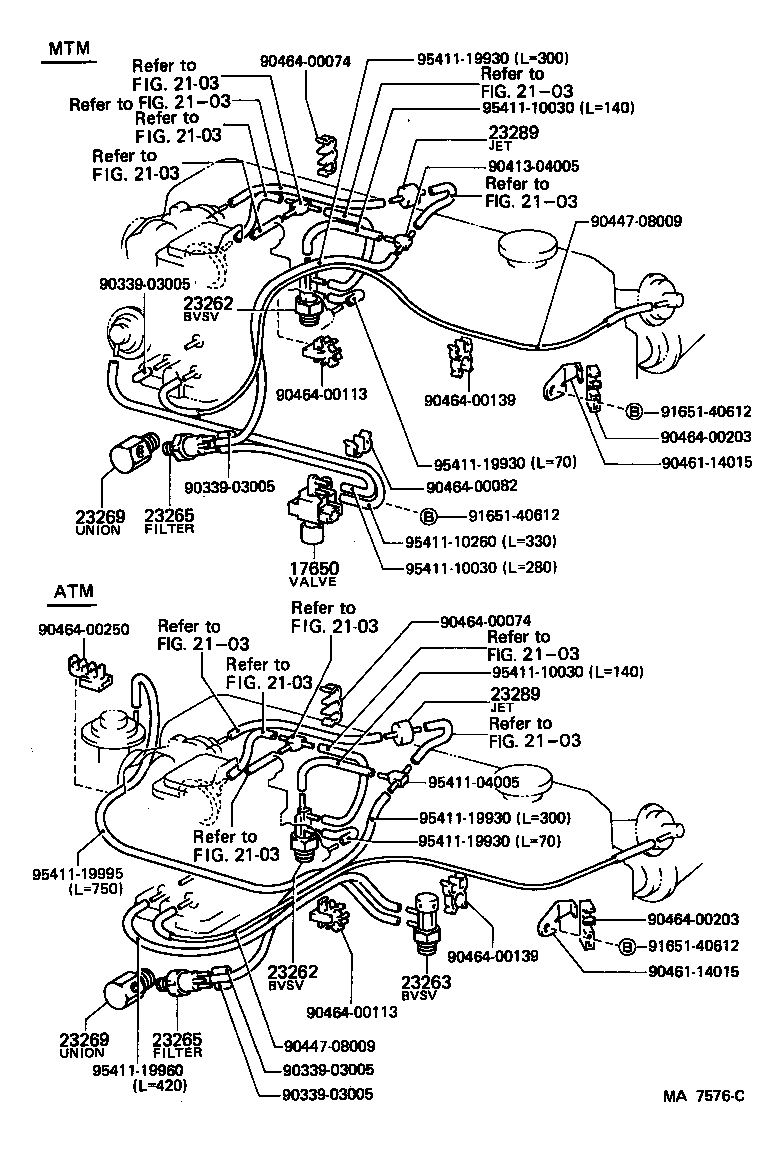

VACUUM PIPING

(8408-8507)21R..SAA

 CELICA |  VACUUM PIPING 17650 - VALVE ASSY, VACUUM SWITCHING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 23265 - FILTER, GAS, NO.1 23265 - FILTER, GAS, NO.1 23269 - UNION(FOR GAS FILTER) 23269 - UNION(FOR GAS FILTER) 23289 - JET, NO.2 23289 - JET, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
