TOYOTA CROWN LS120R-SEMGS / TOOL-ENGINE-FUEL / INJECTION PUMP BODY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

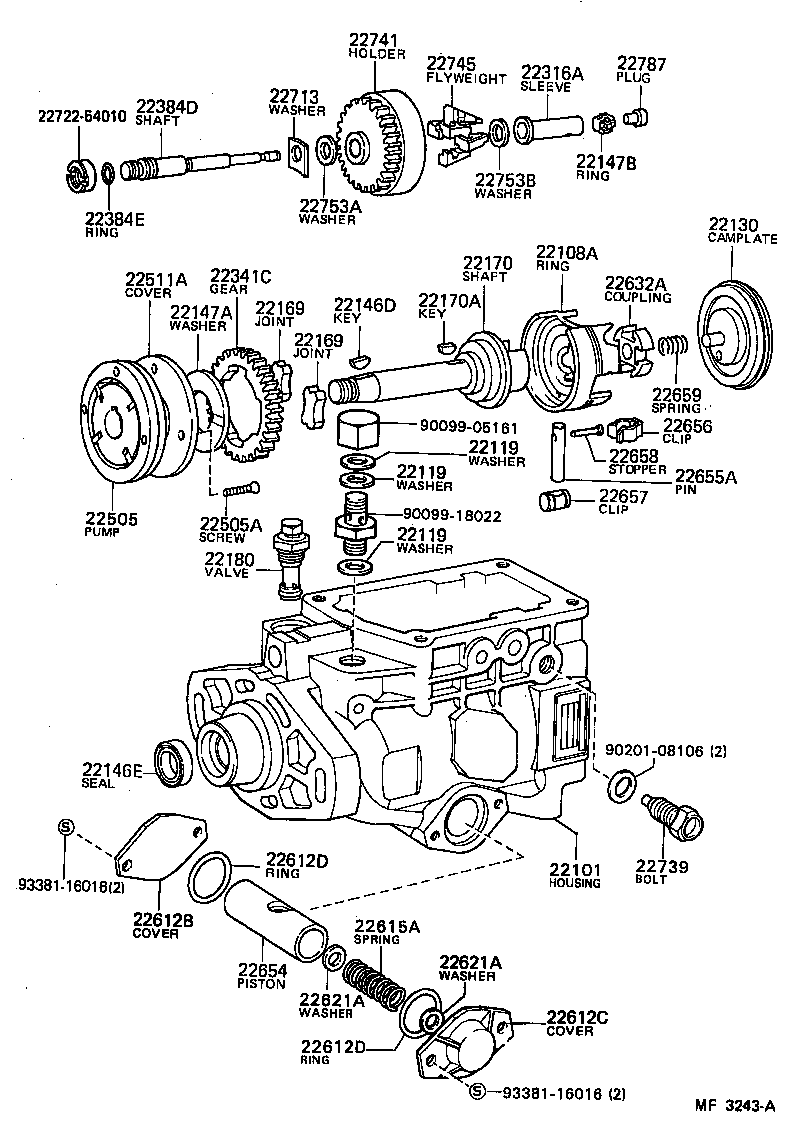

INJECTION PUMP BODY

(8308-8406)2L

CROWN | INJECTION PUMP BODY 22101 - HOUSING SUB-ASSY, INJECTION PUMP 22108A - RING SUB-ASSY, ROLLER 22119 - WASHER, AIR BLEEDER NIPPLE 22119 - WASHER, AIR BLEEDER NIPPLE 22119 - WASHER, AIR BLEEDER NIPPLE 22130 - CAMPLATE SUB-ASSY, FACE 22146D - KEY(FOR DRIVE GEAR) 22146E - SEAL(FOR DRIVE SHAFT) 22147A - WASHER, DRIVE SHAFT 22147B - RING, GOVERNOR SLEEVE 22169 - JOINT, RUBBER 22169 - JOINT, RUBBER 22170 - SHAFT SUB-ASSY, DRIVE 22170A - KEY(FOR DRIVE SHAFT) 22180 - VALVE SUB-ASSY, REGULATOR 22316A - SLEEVE, GOVERNOR 22341C - GEAR, GOVERNOR DRIVE 22384D - SHAFT, GOVERNOR 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) 22505 - PUMP SUB-ASSY, FUEL FEED 22505A - SCREW(FOR FUEL FEED PUMP) 22511A - COVER, FEED PUMP 22612B - COVER, TIMER 22612C - COVER, TIMER 22612D - RING, O(FOR TIMER COVER) 22612D - RING, O(FOR TIMER COVER) 22615A - SPRING, TIMER OUTER 22621A - WASHER, TIMER ADJUSTING 22621A - WASHER, TIMER ADJUSTING 22632A - COUPLING, INJECTION PUMP 22654 - PISTON, TIMER 22655A - PIN, TIMER SLIDE 22656 - CLIP, TIMER 22657 - CLIP, TIMER 22658 - STOPPER, TIMER 22659 - SPRING, COUPLING 22713 - WASHER, GOVERNOR GEAR ADJUSTING ** Std Part 22739 - BOLT, GOVERNOR LINK SUPPORT 22741 - HOLDER SUB-ASSY, FLYWEIGHT 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP 22753A - WASHER, FLYWEIGHT, NO.1 22753B - WASHER, FLYWEIGHT, NO.2 22787 - PLUG, GOVERNOR SLEEVE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
