TOYOTA HIACE VAN COMUTER YH66LV-MRBFW / POWERTRAIN-CHASSIS / TRANSMISSION GEAR MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

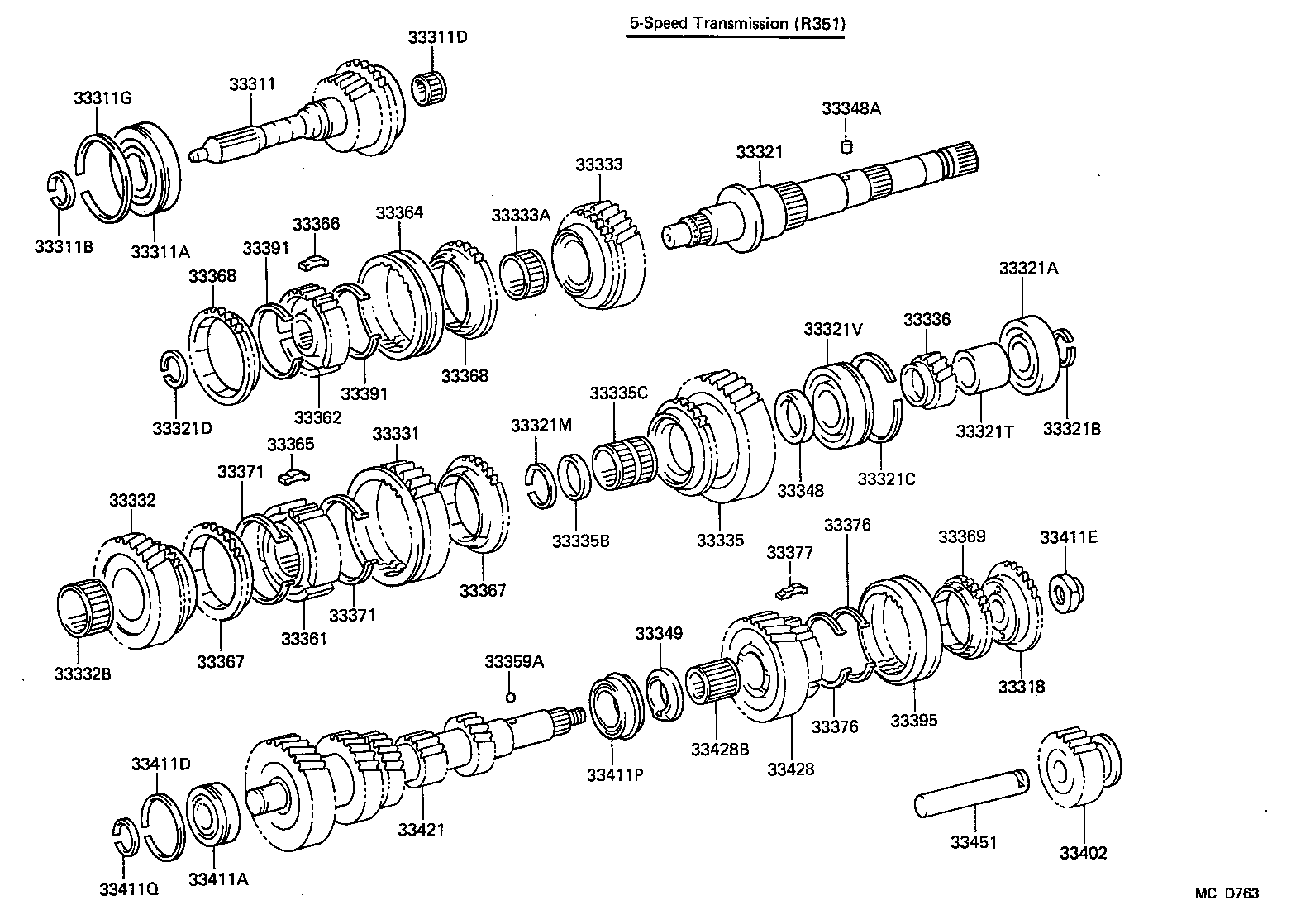

TRANSMISSION GEAR MTM

(8608-8708)LH56,66,YH56,66

HIACE VAN COMUTER | TRANSMISSION GEAR MTM 33311 - SHAFT, INPUT 33311A - BEARING (FOR INPUT SHAFT FRONT) 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) 33311D - BEARING, INPUT SHAFT 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) 33318 - PIECE, GEAR SPLINE, NO.5 33321 - SHAFT, OUTPUT 33321A - BEARING (FOR OUTPUT SHAFT REAR) 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) 33321M - RING, SHAFT SNAP (FOR BEARING) 33321T - SPACER (FOR OUTPUT SHAFT) 33321V - BEARING (FOR OUTPUT SHAFT CENTER) 33331 - GEAR, REVERSE 33332 - GEAR, 2ND 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) 33333 - GEAR, 3RD 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) 33335 - GEAR, 1ST 33335B - SPACER(FOR 1ST GEAR BEARING) 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) 33336 - GEAR, 5TH 33348 - WASHER, 1ST GEAR THRUST 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) 33349 - WASHER, 5TH GEAR THRUST 33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK 33361 - HUB, TRANSMISSION CLUTCH, NO.1 33362 - HUB, TRANSMISSION CLUTCH, NO.2 33364 - SLEEVE, TRANSMISSION HUB, NO.2 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 33367 - RING, SYNCHRONIZER, NO.1 33367 - RING, SYNCHRONIZER, NO.1 33368 - RING, SYNCHRONIZER, NO.2 33368 - RING, SYNCHRONIZER, NO.2 33369 - RING, SYNCHRONIZER, NO.3 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 33395 - SLEEVE, TRANSMISSION HUB, NO.3 33402 - GEAR SUB-ASSY, REVERSE IDLER 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 33411E - NUT(FOR COUNTER GEAR SHAFT) 33411P - BEARING, COUNTER SHAFT CENTER 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 33421 - GEAR, COUNTER 33428 - GEAR, COUNTERSHAFT 5TH 33428B - BEARING (FOR COUNTER 5TH GEAR) 33451 - SHAFT, REVERSE IDLER GEAR
