TOYOTA CRESSIDA WAGON GX71R-XEMGKN / ELECTRICAL / HEATING AIR CONDITIONING VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING VACUUM PIPING

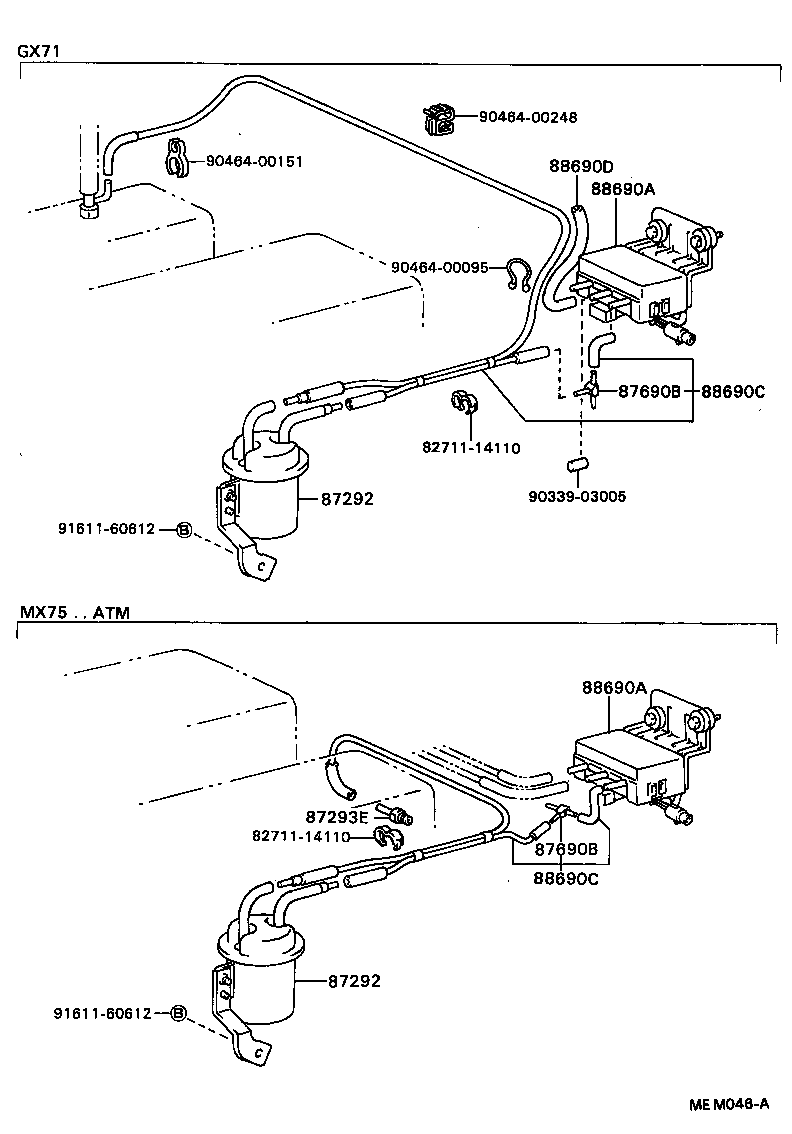

ILLUST NO. 2 OF 2(8812-9205)GLX

 CRESSIDA WAGON |  HEATING AIR CONDITIONING VACUUM PIPING  ** Std Part  ** Std Part 87292 - TANK, VACUUM 87292 - TANK, VACUUM 87293E - UNION, HOSE 87690B - WAY, 3 87690B - WAY, 3 88690A - VALVE ASSY, COMBINATION 88690A - VALVE ASSY, COMBINATION 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) 88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
