TOYOTA LITEACE CM36RV-MRSBEQ / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COMPRESSOR

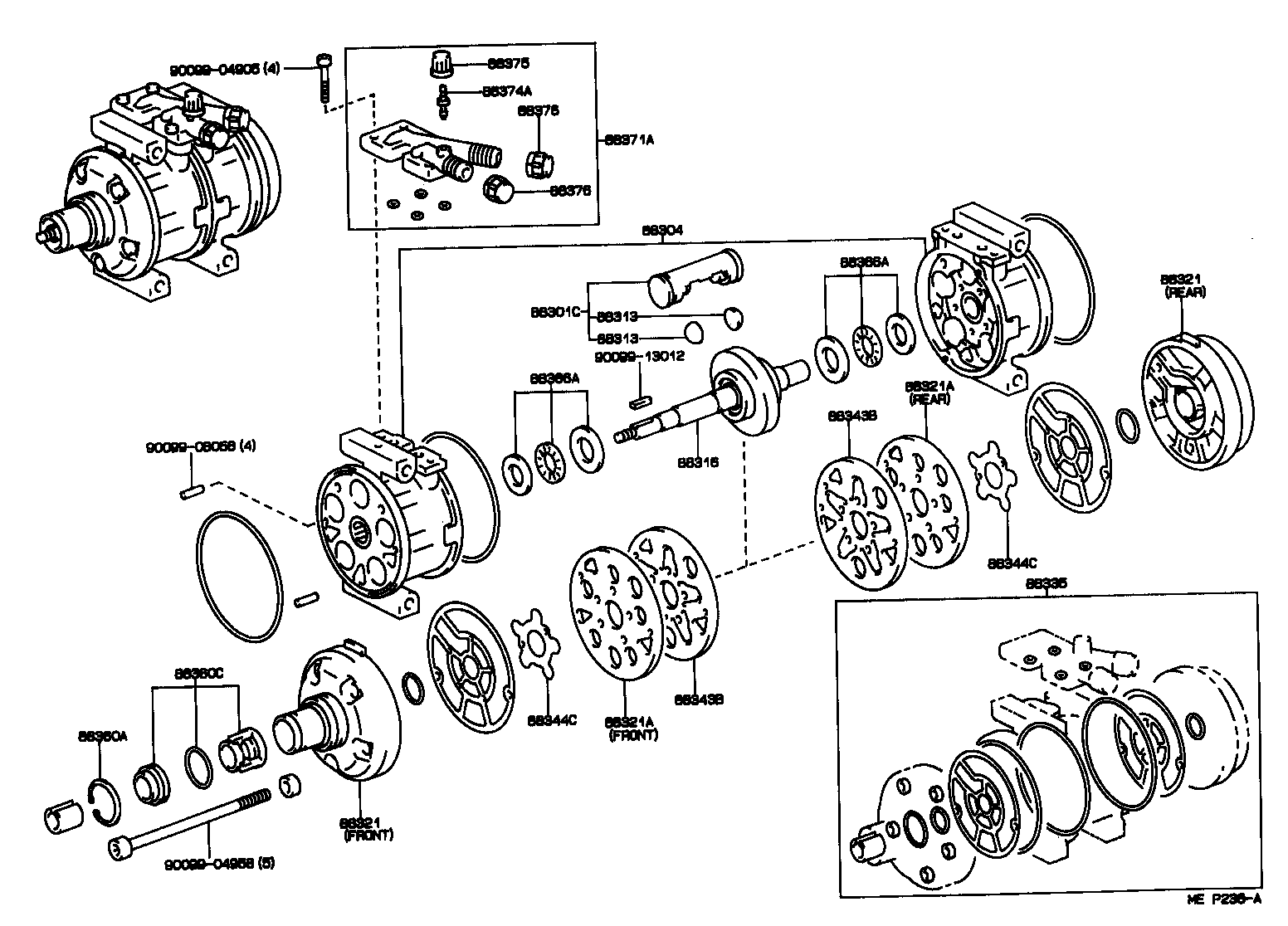

ILLUST NO. 3 OF 3(8808- )CM36..ARL

LITEACE | HEATING AIR CONDITIONING COMPRESSOR 88301C - PISTON SUB-ASSY 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR 88313 - SHOE,PISTON 88313 - SHOE,PISTON 88316 - CRANKSHAFT, COOLER COMPRESSOR 88321 - HEAD, COOLER COMPRESSOR CYLINDER 88321 - HEAD, COOLER COMPRESSOR CYLINDER 88321A - PLATE SUB-ASSY, VALVE 88321A - PLATE SUB-ASSY, VALVE 88335 - GASKET KIT, OVERHAUL 88343B - REED, SUCTION VALVE 88343B - REED, SUCTION VALVE 88344C - REED, DISCHARGE VALVE 88344C - REED, DISCHARGE VALVE 88360A - RING, COMPRESSOR SEAL PLATE SNAP 88360C - SEAL ASSY, SHAFT 88366A - BEARING,COMPRESSOR 88366A - BEARING,COMPRESSOR 88371A - VALVE, SUCTION 88374A - VALVE, SERVICE 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE 88376 - CAP, BLIND 88376 - CAP, BLIND ** Std Part ** Std Part ** Std Part ** Std Part
