TOYOTA SUPRA MA70R-BLMVFW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

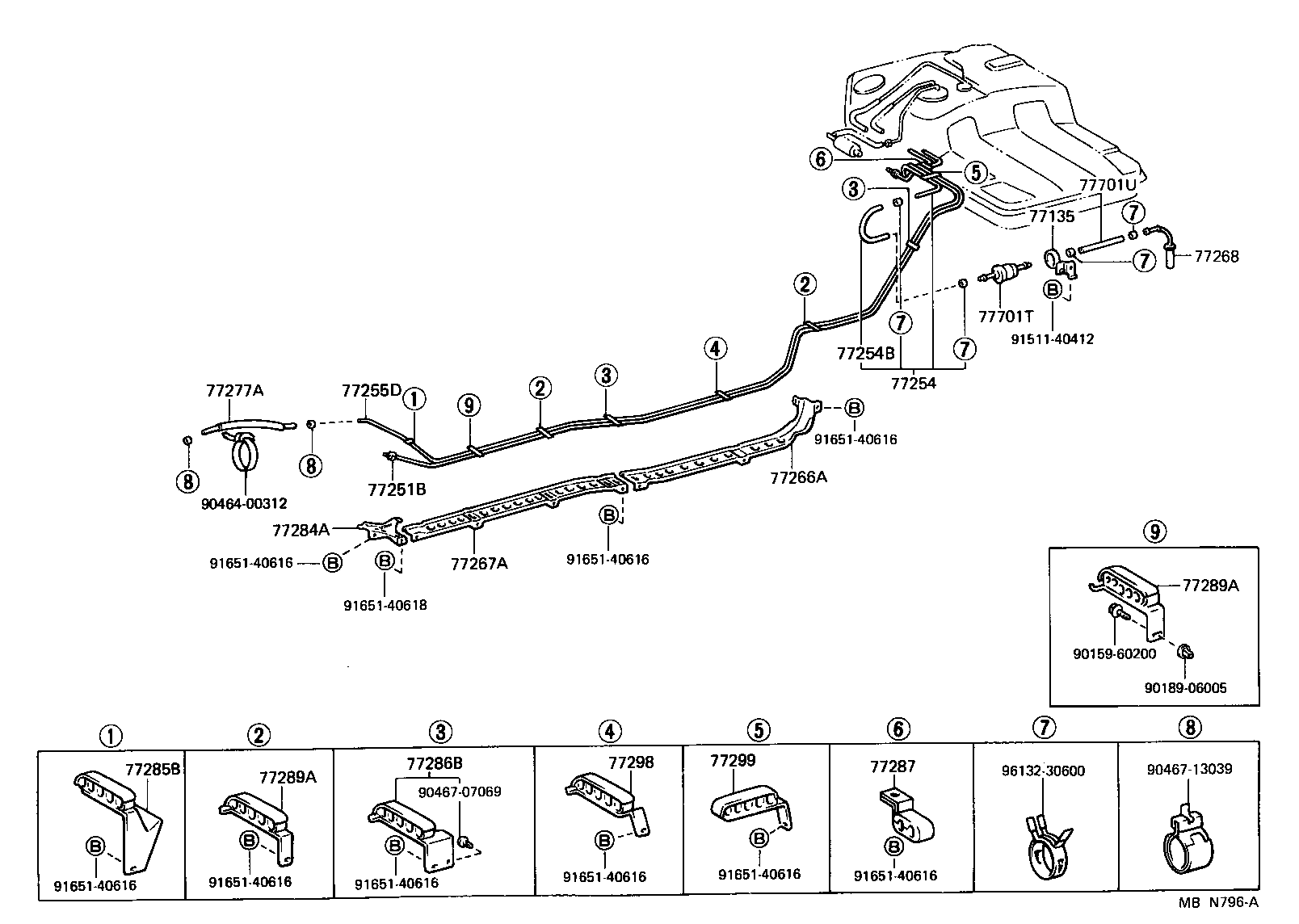

FUEL TANK TUBE

ILLUST NO. 2 OF 2(8808- )EUR

SUPRA | FUEL TANK TUBE 77135 - BRACKET, CHECK VALVE 77251B - TUBE, FUEL MAIN 77254 - TUBE, FUEL EMISSION, NO.1 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) 77255D - TUBE, FUEL RETURN 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77268 - TUBE, FUEL TANK TO CANISTER, NO.4 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77284A - PROTECTOR, FUEL TUBE, NO.3 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77287 - SUPPORT, TANK TO CANISTER TUBE, NO.1 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) 77701U - HOSE, FUEL (FOR CHECK VALVE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
