TOYOTA DYNA 200 BU65RD-MDT / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

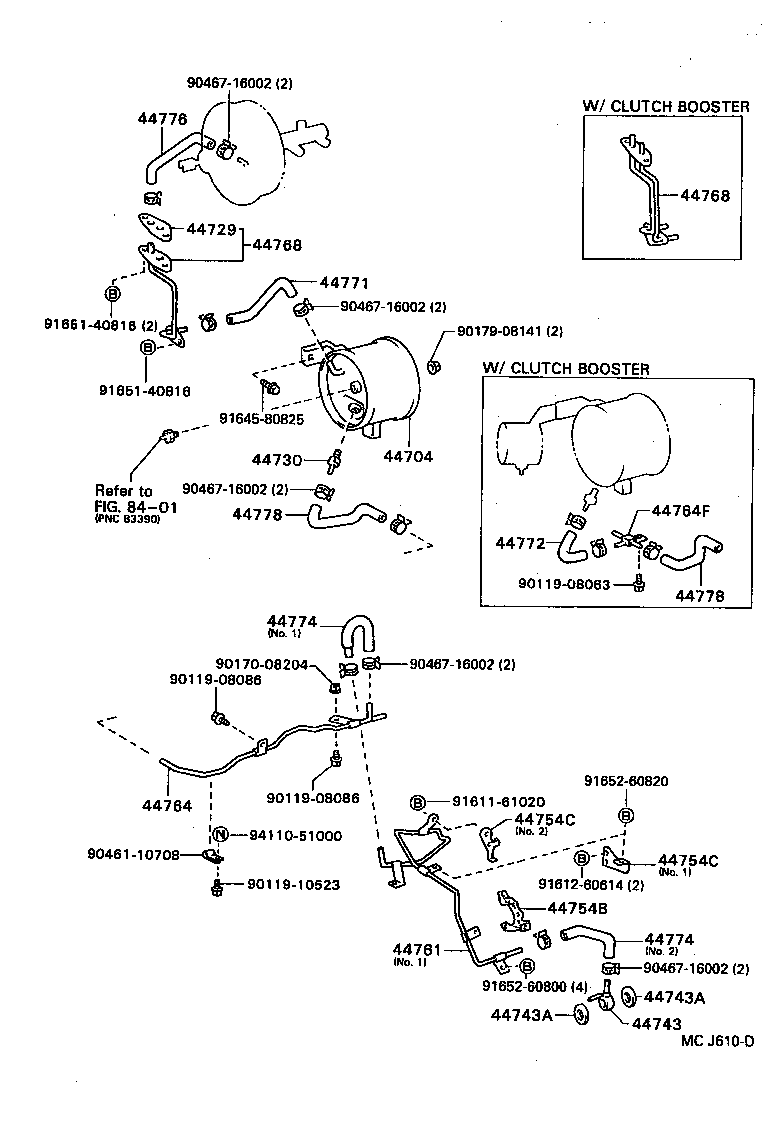

BRAKE BOOSTER VACUUM TUBE

(8808- )BU60,61,65,66,83,84,87..RHD

 DYNA 200 |  BRAKE BOOSTER VACUUM TUBE 44704 - RESERVOIR SUB-ASSY, VACUUM 44729 - GASKET, VACUUM TUBE 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44743 - UNION(FOR VACUUM PUMP) 44743A - GASKET(FOR VACUUM PUMP UNION) 44743A - GASKET(FOR VACUUM PUMP UNION) 44754B - BRACKET, VACUUM TUBE 44754C - BRACKET, VACUUM TUBE, NO.1 44754C - BRACKET, VACUUM TUBE, NO.1 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR 44764 - TUBE, BOOSTER VACUUM 44764F - WAY(FOR BOOSTER VACUUM TUBE) 44768 - TUBE, BOOSTER VACUUM 44768 - TUBE, BOOSTER VACUUM 44771 - HOSE, VACUUM TUBE CONNECTOR 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE 44774 - HOSE, UNION TO CONNECTOR TUBE 44774 - HOSE, UNION TO CONNECTOR TUBE 44776 - HOSE, BRAKE BOOSTER 44778 - HOSE, CONNECTOR TO CHECK VALVE 44778 - HOSE, CONNECTOR TO CHECK VALVE ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
