TOYOTA LAND CRUISER 60 BJ60RG-KRC / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

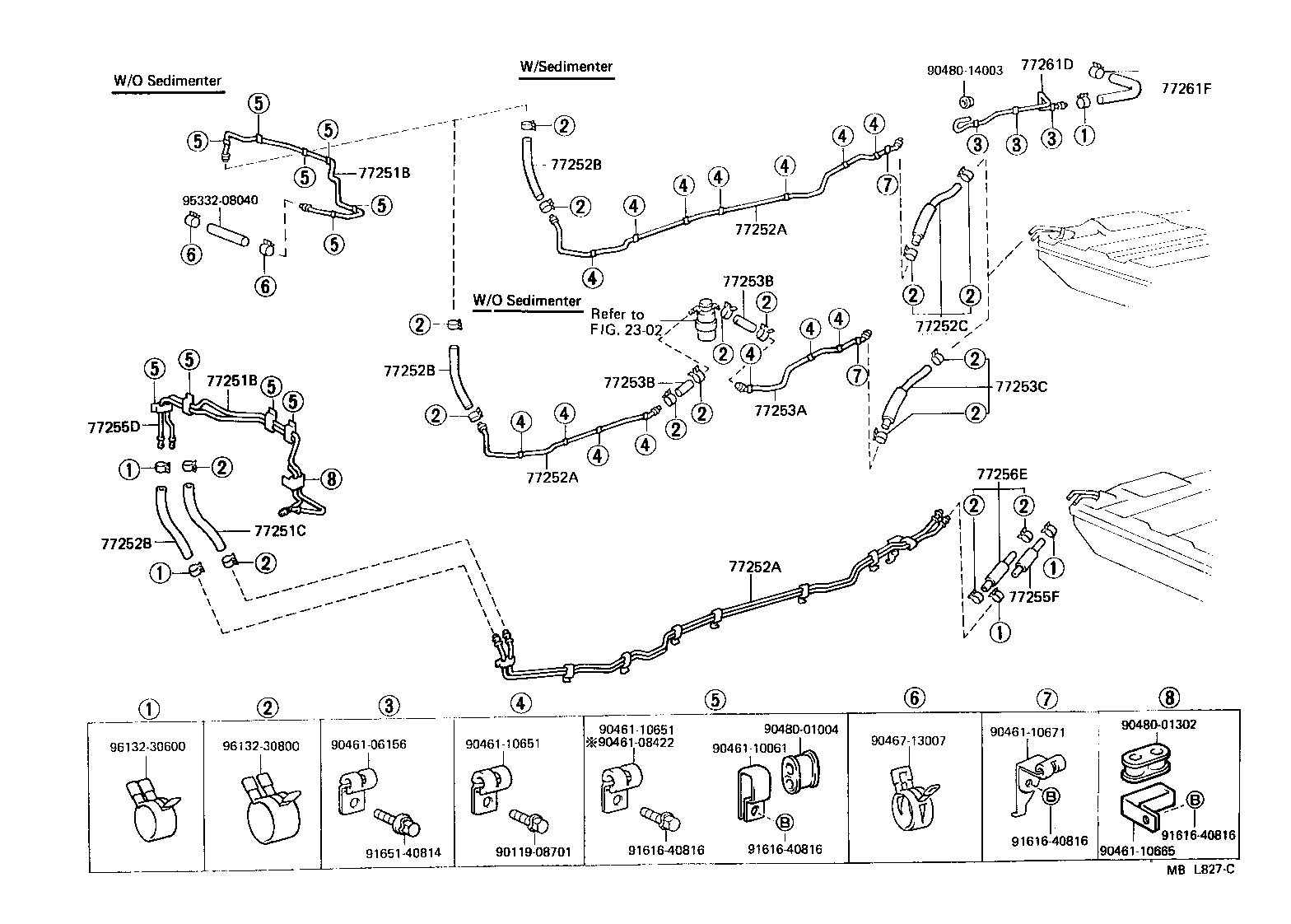

ILLUST NO. 2 OF 2(8708- )BJ60

LAND CRUISER 60 | FUEL TANK TUBE ** Refer Fig 77251B - TUBE, FUEL MAIN 77251B - TUBE, FUEL MAIN 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) 77252A - TUBE, FUEL MAIN, NO.2 77252A - TUBE, FUEL MAIN, NO.2 77252A - TUBE, FUEL MAIN, NO.2 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) 77253A - TUBE, FUEL MAIN, NO.3 77253B - HOSE, FUEL, NO.1(FOR FUEL MAIN NO.3 TUBE) 77253B - HOSE, FUEL, NO.1(FOR FUEL MAIN NO.3 TUBE) 77253C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.3 TUBE) 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE) 77261D - TUBE, FUEL TANK TO CANISTER 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
