TOYOTA SUPRA JZA80R-AJPVZW / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE TUBE CLAMP

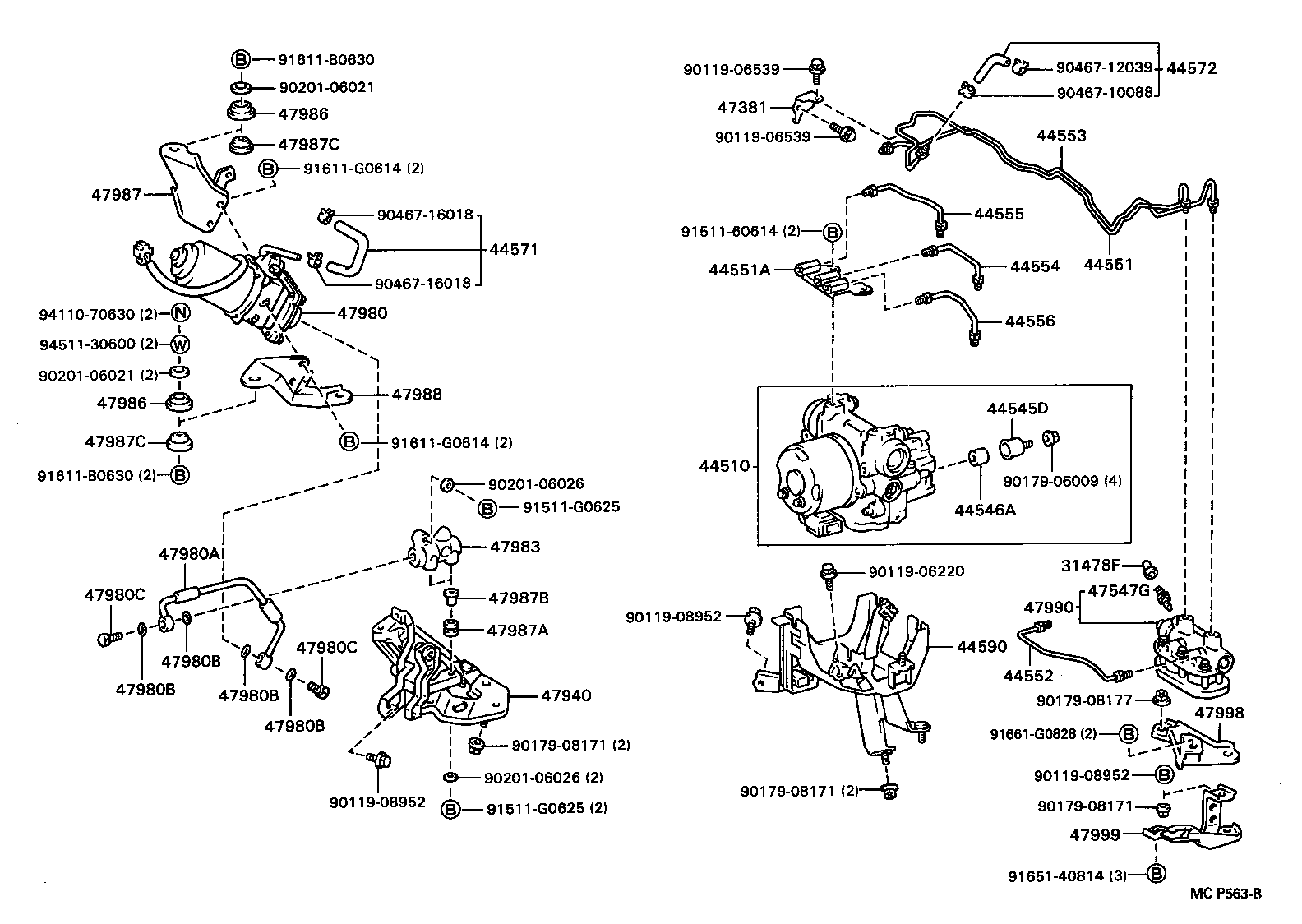

ILLUST NO. 2 OF 2(9305- )RHD..EUR

SUPRA | BRAKE TUBE CLAMP 31478F - CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACTUATOR) 44510 - ACTUATOR ASSY, BRAKE 44545D - HOLDER, BRAKE ACTUATOR BOLT 44546A - CUSHION, BRAKE ACTUATOR BOLT 44551 - TUBE, BRAKE ACTUATOR, NO.1 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) 44552 - TUBE, BRAKE ACTUATOR, NO.2 44553 - TUBE, BRAKE ACTUATOR, NO.3 44554 - TUBE, BRAKE ACTUATOR, NO.4 44555 - TUBE, BRAKE ACTUATOR, NO.5 44556 - TUBE, BRAKE ACTUATOR, NO.6 44571 - HOSE, BRAKE ACTUATOR 44572 - HOSE, BRAKE ACTUATOR, NO.2 44590 - BRACKET ASSY, BRAKE ACTUATOR 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 47547G - PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR) 47940 - BRACKET ASSY, BRAKE TRACTION 47980 - PUMP ASSY, BRAKE TRACTION 47980A - HOSE, PRESSURE(FOR BRAKE TRACTION PUMP) 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) 47980C - BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE) 47980C - BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE) 47983 - DAMPER, BRAKE TRACTION 47986 - COVER, BRAKE TRACTION PUMP, NO.2 47986 - COVER, BRAKE TRACTION PUMP, NO.2 47987 - BRACKET, BRAKE TRACTION PUMP, NO.1 47987A - BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET) 47987B - SPACER(FOR BRAKE TRACTION PUMP BRACKET) 47987C - BUSH, NO.2(FOR BRAKE TRACTION PUMP BRACKET) 47987C - BUSH, NO.2(FOR BRAKE TRACTION PUMP BRACKET) 47988 - BRACKET, BRAKE TRACTION PUMP, NO.2 47990 - ACTUATOR ASSY, BRAKE TRACTION 47998 - BRACKET, BRAKE TRACTION ACTUATOR, NO.1 47999 - BRACKET, BRAKE TRACTION ACTUATOR, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
