TOYOTA HILUX RZN149R-PRMDKQ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

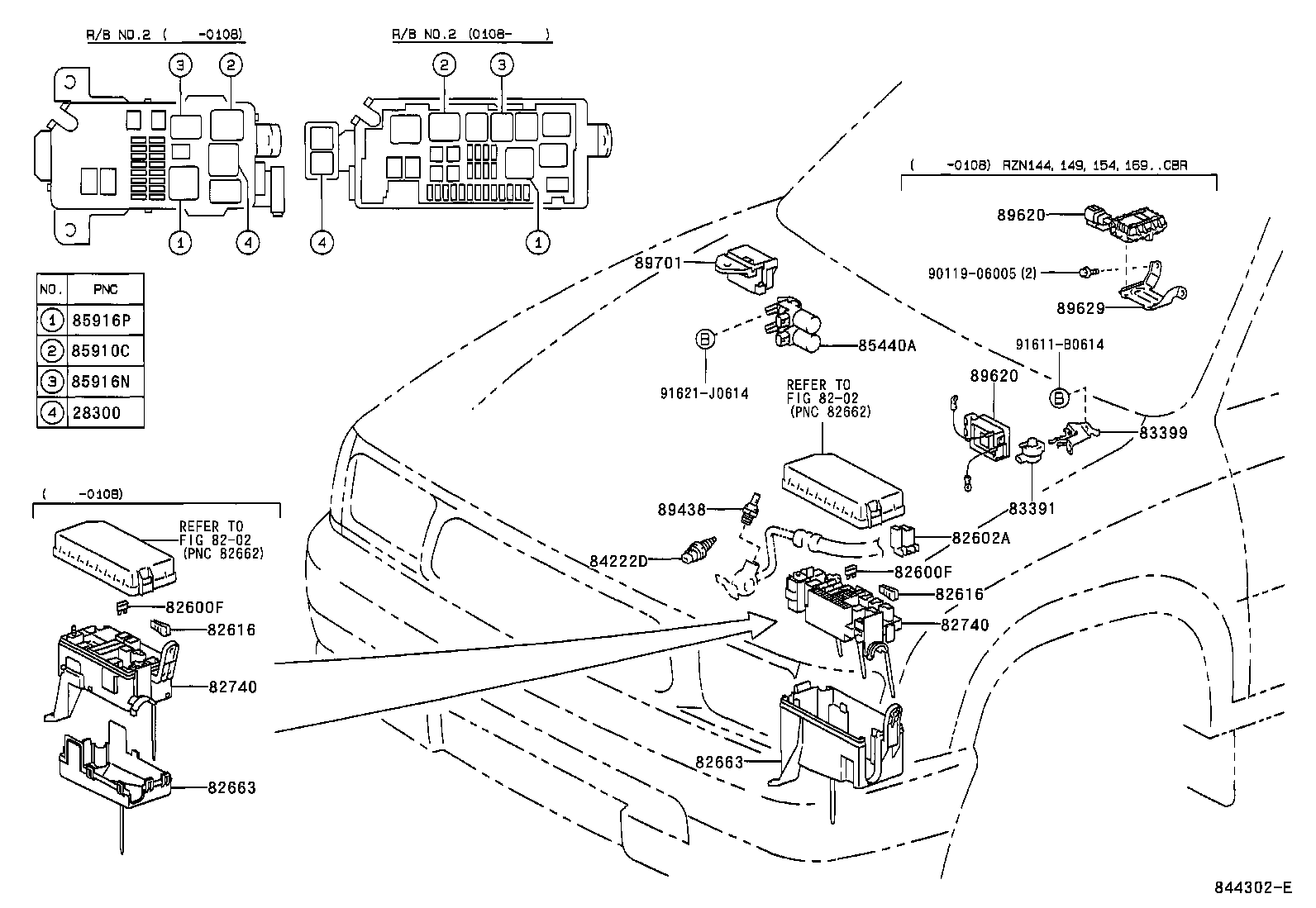

ENGINE ROOM ILLUST NO. 2 OF 6(9708- )RZN14#,154,16#,174,19#,YN140

 HILUX |  SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER ** Refer Fig ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82602A - BLOCK SUB-ASSY, RELAY 82616 - PULLER, FUSE 82616 - PULLER, FUSE 82663 - COVER, RELAY BLOCK, LOWER 82663 - COVER, RELAY BLOCK, LOWER 82740 - BLOCK ASSY, ENGINE ROOM RELAY 82740 - BLOCK ASSY, ENGINE ROOM RELAY 83391 - SWITCH, VACUUM 83399 - BRACKET, VACUUM SWITCH 84222D - SWITCH, TRANSFER INDICATOR, NO.4 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85916N - RELAY, TAIL LAMP 85916P - RELAY, HEADLAMP 89438 - SWITCH, POWER STEERING OIL PRESSURE 89620 - IGNITER ASSY 89620 - IGNITER ASSY 89629 - BRACKET, IGNITER ASSY 89701 - BLOCK SUB-ASSY, ABS RELAY  ** Std Part  ** Std Part  ** Std Part
