TOYOTA PICNIC SXM10R-ARSEK / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

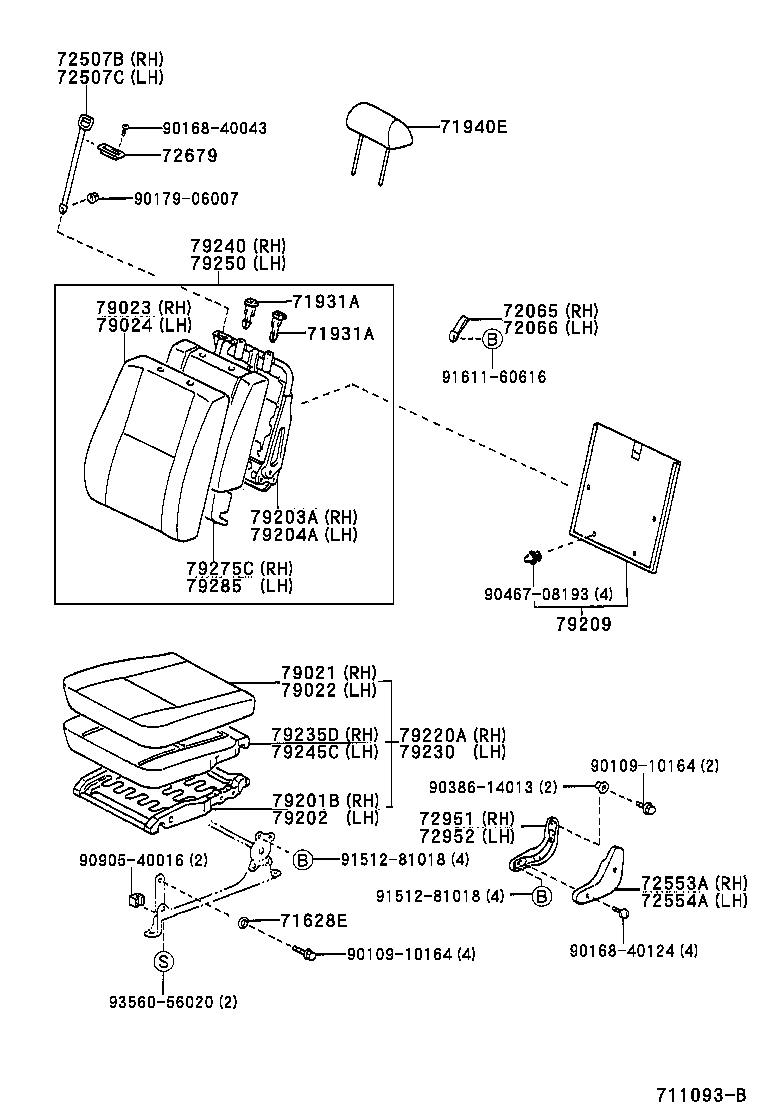

REAR SEAT SEAT TRACK

NO.2 SEAT ILLUST NO. 1 OF 2(9908- )

PICNIC | REAR SEAT SEAT TRACK 71628E - SPACER, REAR SEAT CUSHION 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940E - HEADREST ASSY, NO.2 SEAT 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH 72553A - PROTECTOR, RECLINING COVER, RH 72554A - PROTECTOR, RECLINING COVER, LH 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL 72951 - LINK, NO.2 SEAT, UPR RH 72952 - LINK, NO.2 SEAT UPR LH 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH 79209 - BOARD SUB-ASSY, NO.2 SEAT BACK 79220A - CUSHION ASSY, NO.2 SEAT 79230 - CUSHION ASSY, NO.2 SEAT, LH 79235D - PAD, NO.2 SEAT CUSHION, RH 79240 - BACK ASSY, NO.2 SEAT, RH 79245C - PAD, NO.2 SEAT CUSHION, LH 79250 - BACK ASSY, NO.2 SEAT, LH 79275C - PAD, NO.2 SEAT BACK, RH 79285 - PAD, NO.2 SEAT BACK, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
