TOYOTA T U V LF82R-GRMNS / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

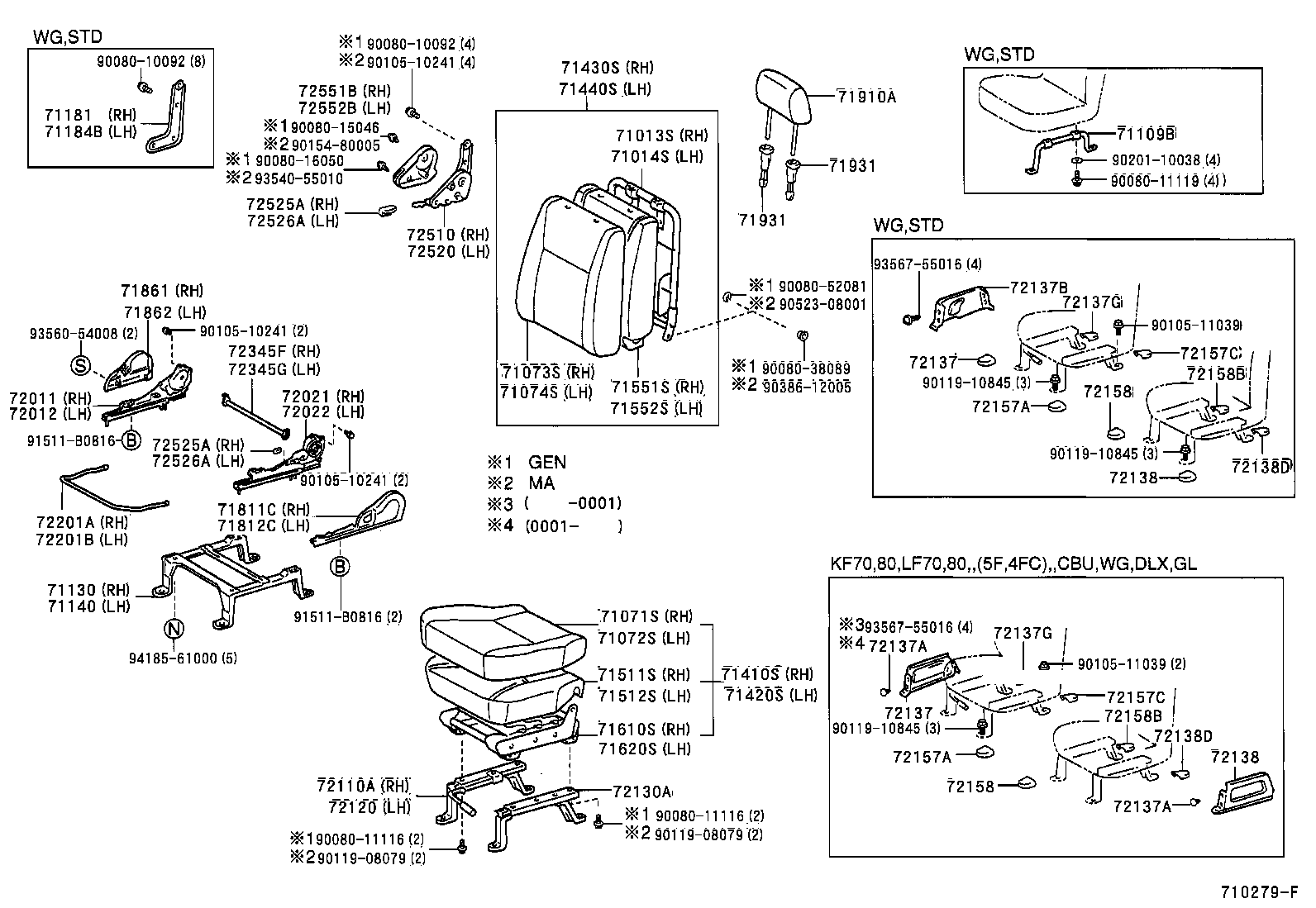

SEPARATE TYPE SEAT ILLUST NO. 1 OF 3(9612-0208)CBU..RHD ; (0208-0212)MA ; (0208-

T U V | SEAT SEAT TRACK 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71109B - LEG SUB-ASSY, FRONT SEAT, LH 71130 - LEG ASSY, FRONT SEAT, RH 71140 - LEG ASSY, FRONT SEAT, LH 71181 - SUPPORT, FRONT SEAT BACK, RH 71184B - SUPPORT, FRONT SEAT BACK, LH 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71811C - COVER, RECLINING ADJUSTER, RH 71812C - COVER, RECLINING ADJUSTER, LH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH 72110A - TRACK ASSY, FRONT SEAT, OUTER RH 72120 - TRACK ASSY, FRONT SEAT, OUTER LH 72130A - TRACK ASSY, FRONT SEAT, INNER RH 72137 - COVER, SEAT TRACK OUTER, RH 72137 - COVER, SEAT TRACK OUTER, RH 72137A - CLIP (FOR SEAT TRACK COVER) 72137A - CLIP (FOR SEAT TRACK COVER) 72137B - COVER, SEAT TRACK, RH 72137G - COVER, SEAT TRACK, OUTER RH 72137G - COVER, SEAT TRACK, OUTER RH 72138 - COVER, SEAT TRACK OUTER, LH 72138 - COVER, SEAT TRACK OUTER, LH 72138D - COVER, SEAT TRACK, OUTER, LH 72138D - COVER, SEAT TRACK, OUTER, LH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72157C - COVER, SEAT TRACK BRACKET, INNER RH 72157C - COVER, SEAT TRACK BRACKET, INNER RH 72158 - COVER, SEAT TRACK BRACKET, INNER LH 72158 - COVER, SEAT TRACK BRACKET, INNER LH 72158B - COVER, SEAT TRACK BRACKET, INNER LH 72158B - COVER, SEAT TRACK BRACKET, INNER LH 72201A - HANDLE SUB-ASSY, SEAT TRACK RH 72201B - HANDLE SUB-ASSY, SEAT TRACK LH 72345F - PIPE, RECLINING CONNECTING, RH 72345G - PIPE, RECLINING CONNECTING, LH 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH 72551B - COVER, RECLINING HINGE, RH 72552B - COVER, RECLINING HINGE, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
