TOYOTA YARIS ECHO 3D 5D SCP10R-AHPRK / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

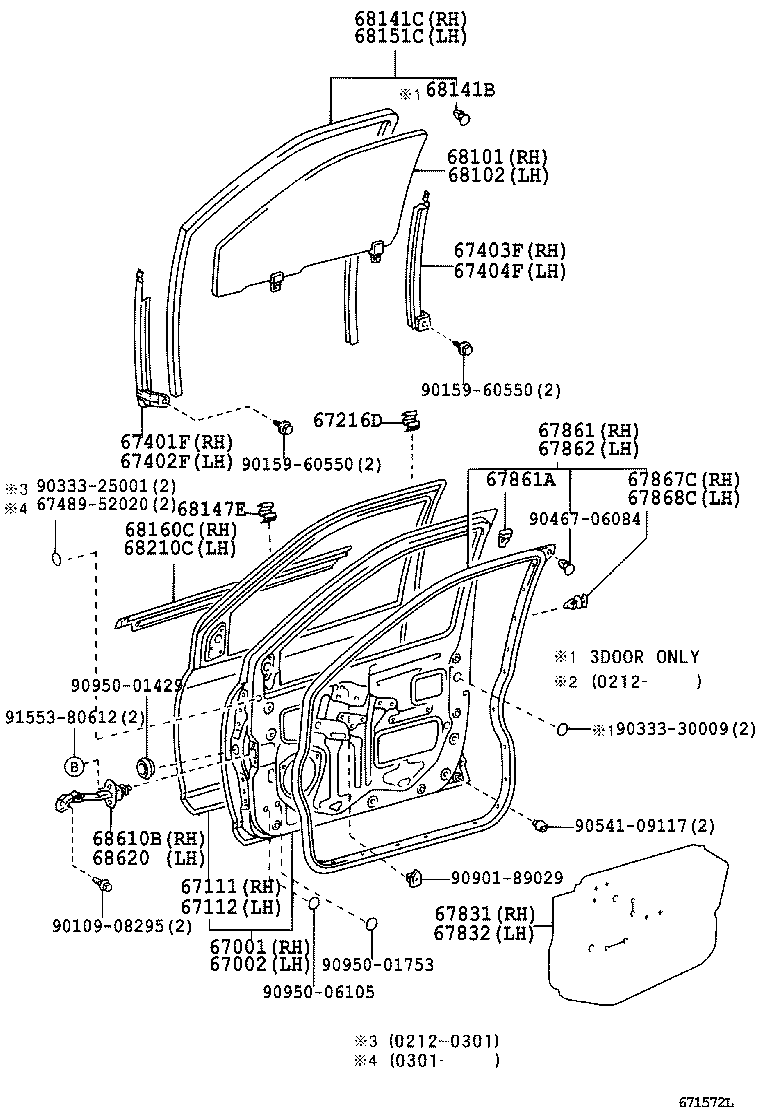

FRONT DOOR PANEL GLASS

ILLUST NO. 2 OF 3(9903- )

 YARIS ECHO 3D 5D |  FRONT DOOR PANEL GLASS 67001 - PANEL SUB-ASSY, FRONT DOOR, RH 67002 - PANEL SUB-ASSY, FRONT DOOR, LH 67111 - PANEL, FRONT DOOR, OUTER RH 67112 - PANEL, FRONT DOOR, OUTER LH 67216D - STOPPER, FRONT DOOR GLASS, UPPER NO.2 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH  ** Std Part 67831 - COVER, FRONT DOOR SERVICE HOLE, RH 67832 - COVER, FRONT DOOR SERVICE HOLE, LH 67861 - WEATHERSTRIP, FRONT DOOR, RH 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) 67862 - WEATHERSTRIP, FRONT DOOR, LH 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH 68101 - GLASS SUB-ASSY, FRONT DOOR, RH 68102 - GLASS SUB-ASSY, FRONT DOOR, LH 68141B - CLIP, DOOR GLASS RUN 68141C - RUN, FRONT DOOR GLASS, RH 68147E - STOP, FRONT DOOR GLASS, UPPER 68151C - RUN, FRONT DOOR GLASS, LH 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH 68610B - CHECK ASSY, FRONT DOOR, RH 68620 - CHECK ASSY, FRONT DOOR, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
