TOYOTA AVALON MCX20L-AEPNKV / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

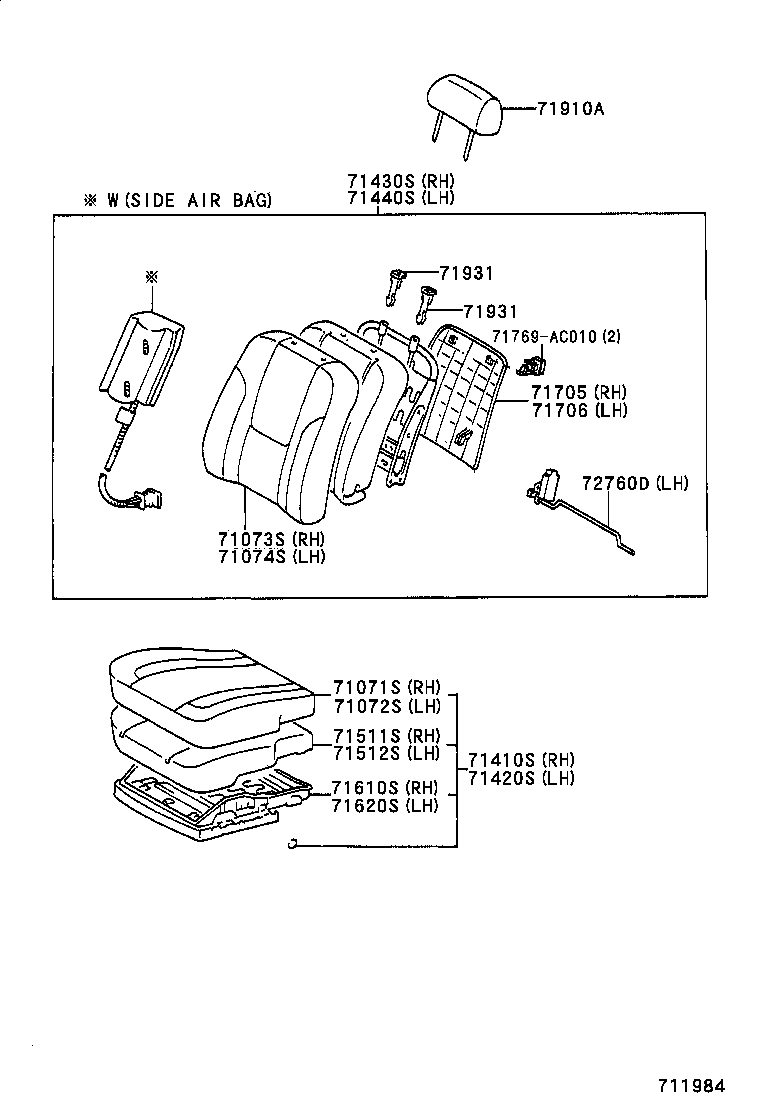

FRONT SEAT SEAT TRACK

ILLUST NO. 1 OF 2(9908- )

 AVALON |  FRONT SEAT SEAT TRACK 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH  ** Std Part 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH
