TOYOTA AVALON MCX20L-AEPNKV / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

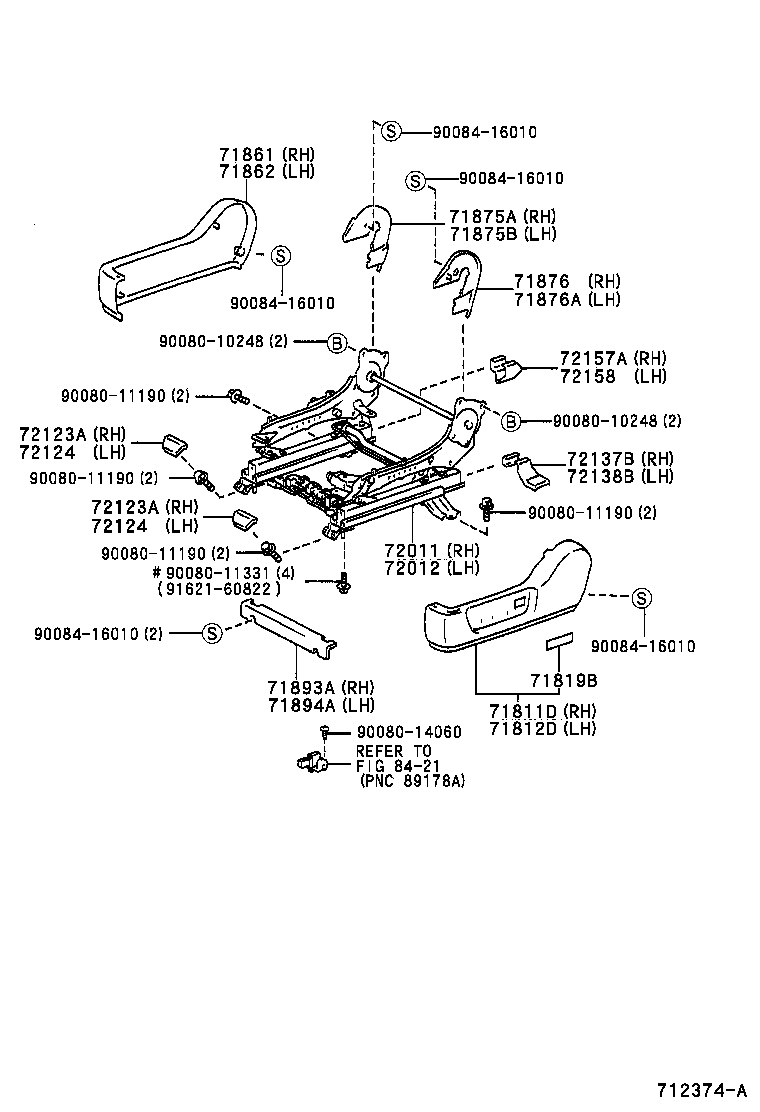

FRONT SEAT SEAT TRACK

POWER SEAT ILLUST NO. 2 OF 2(9908- )

AVALON | FRONT SEAT SEAT TRACK 71811D - SHIELD, FRONT SEAT CUSHION, RH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71819B - LABEL, SIDE AIR BAG NAME 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71876A - COVER, RECLINING ADJUSTER INSIDE, LH 71893A - SHIELD, POWER ADJUSTER, FRONT RH 71894A - SHIELD, POWER ADJUSTER, FRONT LH 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72137B - COVER, SEAT TRACK, RH 72138B - COVER, SEAT TRACK, LH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72158 - COVER, SEAT TRACK BRACKET, INNER LH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
