TOYOTA AVALON MCX20L-AEPNKV / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

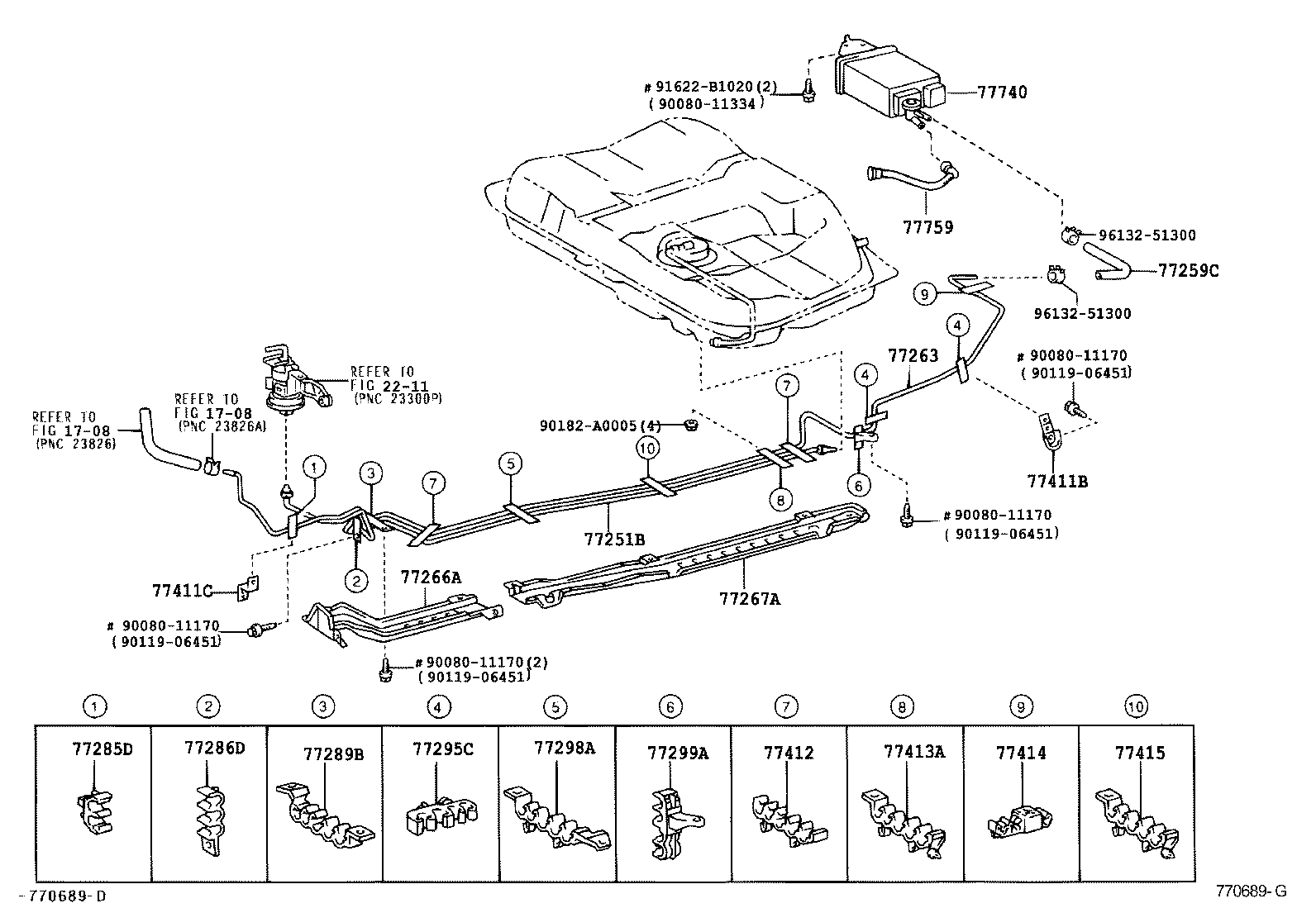

FUEL TUBE ILLUST NO. 2 OF 2(9908- )

AVALON | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77259C - HOSE, FUEL 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77285D - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77289B - CLAMP, FUEL TUBE, NO.3 77295C - GROMMET, FUEL TUBE 77298A - CLAMP, FUEL TUBE, NO.4 77299A - CLAMP, FUEL TUBE, NO.5 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77411C - SUPPORT, FUEL TUBE GROMMET, NO.1 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 77740 - CANISTER ASSY, CHARCOAL 77759 - HOSE, CHARCOAL CANISTER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
