TOYOTA COASTER CHINA BB53L-ZCMEU / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

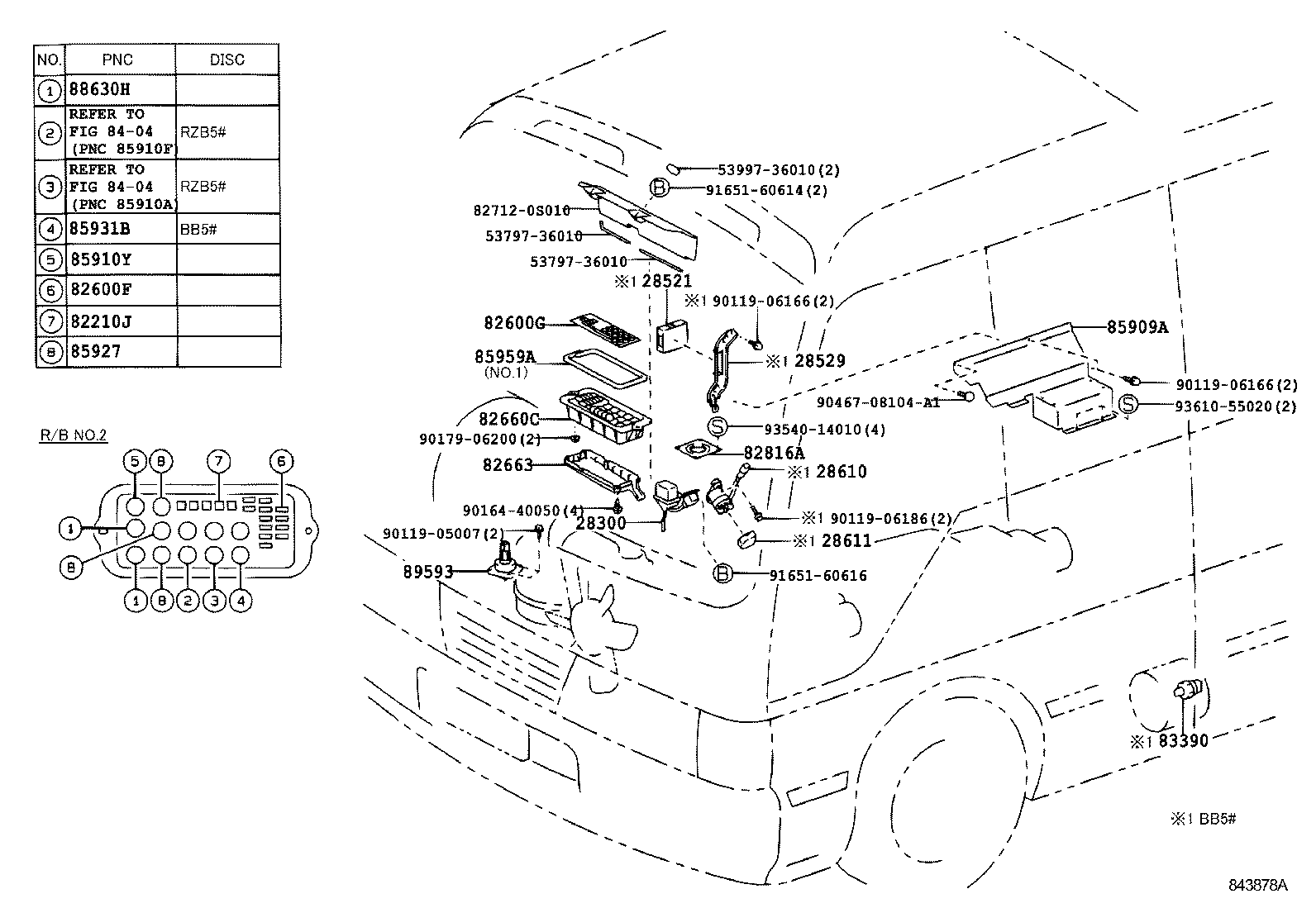

ENGINE ROOM ILLUST NO. 2 OF 6(0012-0310)

 COASTER CHINA |  SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28521 - TIMER, PREHEATING 28529 - BRACKET, PREHEATING TIMER, NO.1 28610 - RELAY ASSY, GLOW PLUG 28611 - COVER, GLOW PLUG RELAY  ** Std Part  ** Std Part  ** Std Part 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600G - PLATE, CAUTION(FOR FUSE) 82660C - BLOCK ASSY, RELAY 82663 - COVER, RELAY BLOCK, LOWER  ** Std Part 82816A - BRACKET, WIRING HARNESS GROMMET 83390 - SWITCH ASSY, VACUUM WARNING ** Refer Fig ** Refer Fig 85909A - BRACKET SUB-ASSY, RELAY BLOCK 85910Y - RELAY, REAR HEATER 85927 - RELAY, COOLING FAN 85931B - RELAY, FUEL HEATER 85959A - HOLDER, RELAY 88630H - RELAY ASSY, COOLER 89593 - SENSOR, AIR CLEANER WARNING  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
