TOYOTA COASTER CHINA BB53L-ZCMEU / TOOL-ENGINE-FUEL / INJECTION PUMP BODY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

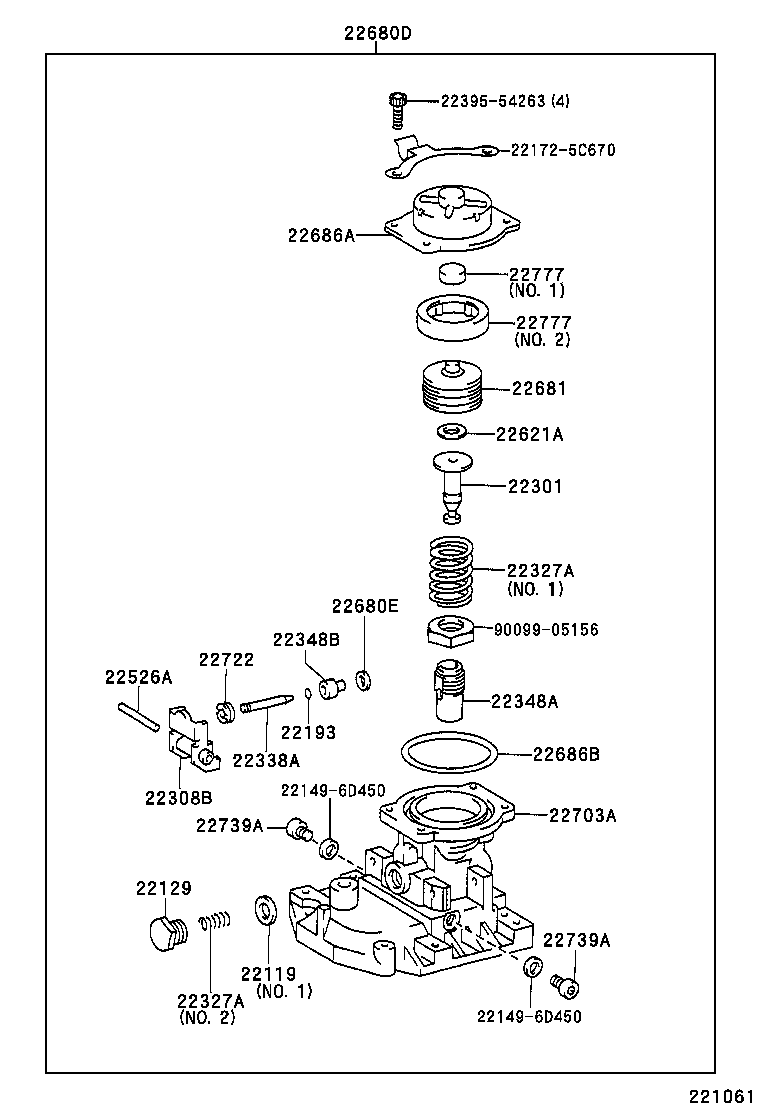

INJECTION PUMP BODY

ILLUST NO. 2 OF 2(0012-0310)15BF

COASTER CHINA | INJECTION PUMP BODY 22119 - WASHER, AIR BLEEDER NIPPLE 22129 - PLUG, SCREW ** Std Part ** Std Part ** Std Part 22193 - RING, O(FOR LEVER CONNECTING PIN) 22301 - ROD SUB-ASSY, PUSH 22308B - LEVER SUB-ASSY, CONTROL 22327A - SPRING(FOR BELLOWS) 22327A - SPRING(FOR BELLOWS) 22338A - PIN, LEVER CONNECTING 22348A - BUSHING, GUIDE 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN) ** Std Part 22526A - PIN, LEVER SUPPORT 22621A - WASHER, TIMER ADJUSTING 22680D - BELLOWS ASSY, PNEUMATIC 22680E - WASHER, COPPER PLATE 22681 - BELLOWS SUB-ASSY, PNEUMATIC 22686A - COVER, PNEUMATIC BELLOWS 22686B - RING, O(FOR BELLOWS COVER) 22703A - COVER SUB-ASSY, GOVERNOR 22722 - NUT, GOVERNOR SHAFT ROCK 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 22777 - CAP, RUBBER(FOR BELLOWS) 22777 - CAP, RUBBER(FOR BELLOWS) ** Std Part
