TOYOTA DYNA XZU300L-TKMMWR3 / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

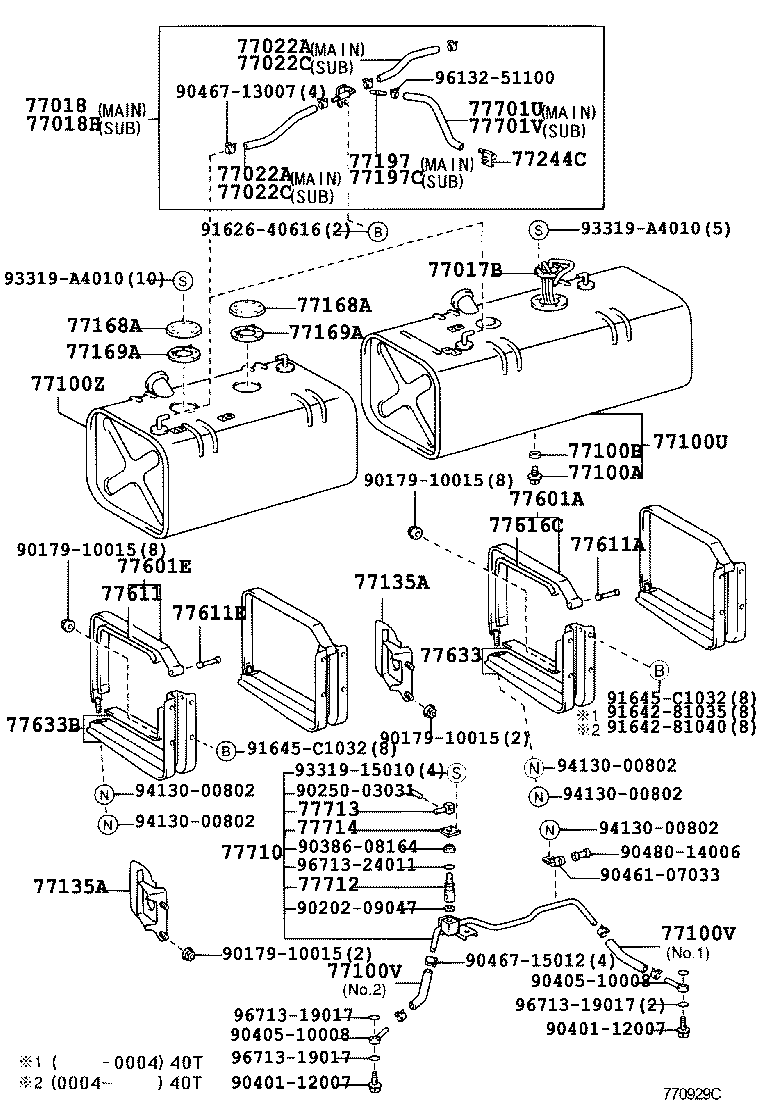

FUEL TANK W(SUB TANK) ILLUST NO. 1 OF 3(9907- )XZU300,320,330,34#

DYNA | FUEL TANK TUBE 77017B - TUBE SUB-ASSY, FUEL TANK VENT 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE 77018H - VALVE SUB-ASSY, FUEL VAPOR SEPARATE 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77100U - TANK SUB-ASSY, FUEL 77100V - HOSE, FUEL 77100V - HOSE, FUEL 77100Z - TANK SUB-ASSY, FUEL SUB 77135A - PROTECTOR, FUEL TANK SIDE 77135A - PROTECTOR, FUEL TANK SIDE 77168A - PLATE, FUEL TANK VENT TUBE SET 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77197 - ORIFICE, FUEL VAPOR 77197C - ORIFICE 77244C - JOINT, FUEL TUBE, NO.2 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77601E - BAND SUB-ASSY, FUEL TANK 77611 - BAND, FUEL TANK 77611A - PIN (FOR FUEL TANK BAND) 77611E - PIN, FUEL TANK BAND 77616C - SEAT, FUEL TANK BAND 77633 - STAY, FUEL TANK 77633B - STAY, FUEL TANK 77701U - HOSE, FUEL (FOR CHECK VALVE) 77701V - VALVE, CHECK (FOR SUB-FUEL TANK) 77710 - COCK ASSY, FUEL CHANGE 77712 - VALVE, FUEL CHANGE COCK 77713 - LEVER, FUEL CHANGE COCK 77714 - CAP, FUEL CHANGE COCK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
