TOYOTA HILUX KDN150R-CRMSYT / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE BOOSTER VACUUM TUBE

(0110- )KDN145,15#

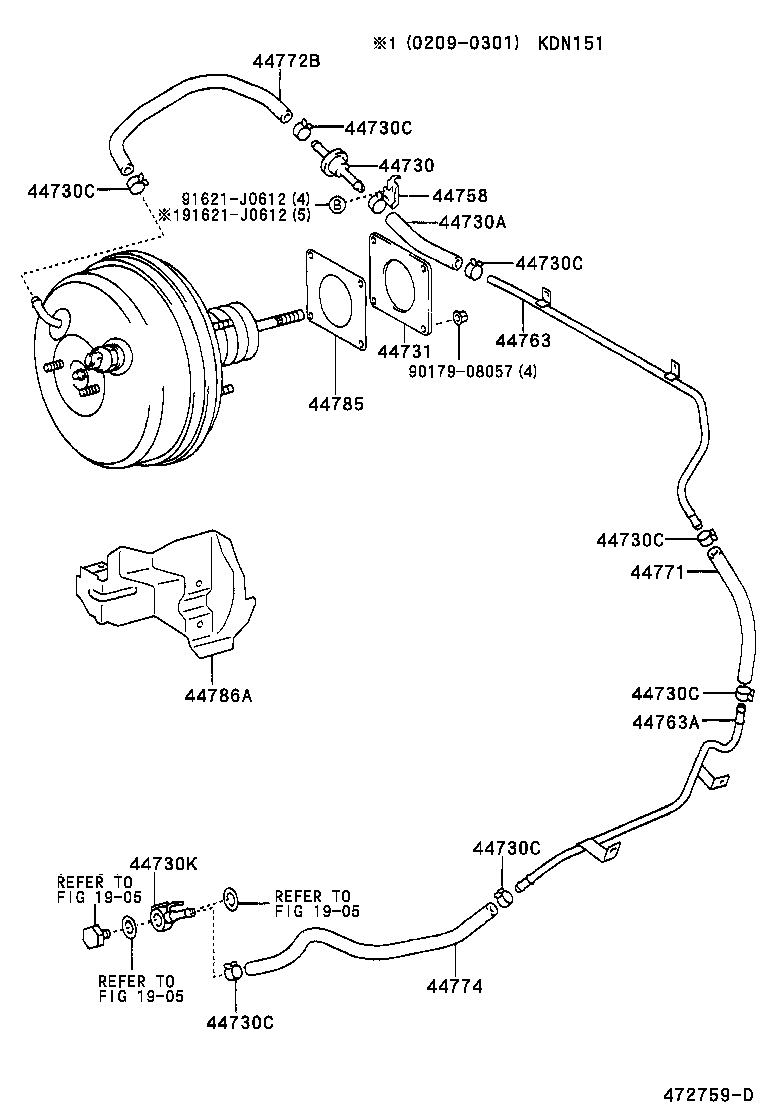

HILUX | BRAKE BOOSTER VACUUM TUBE ** Refer Fig ** Refer Fig ** Refer Fig 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44730A - HOSE, VACUUM, NO.1 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP) 44731 - BRACKET, BRAKE BOOSTER, FRONT 44758 - BRACKET, VACUUM CHECK VALVE 44763 - TUBE, BOOSTER VACUUM 44763A - TUBE, HOSE TO HOSE, NO.1 44771 - HOSE, VACUUM TUBE CONNECTOR 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER 44774 - HOSE, UNION TO CONNECTOR TUBE 44785 - GASKET, BRAKE BOOSTER 44786A - INSULATOR, BRAKE BOOSTER HEAT ** Std Part ** Std Part ** Std Part
