TOYOTA CAMRY MCV30L-JEAEKM / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

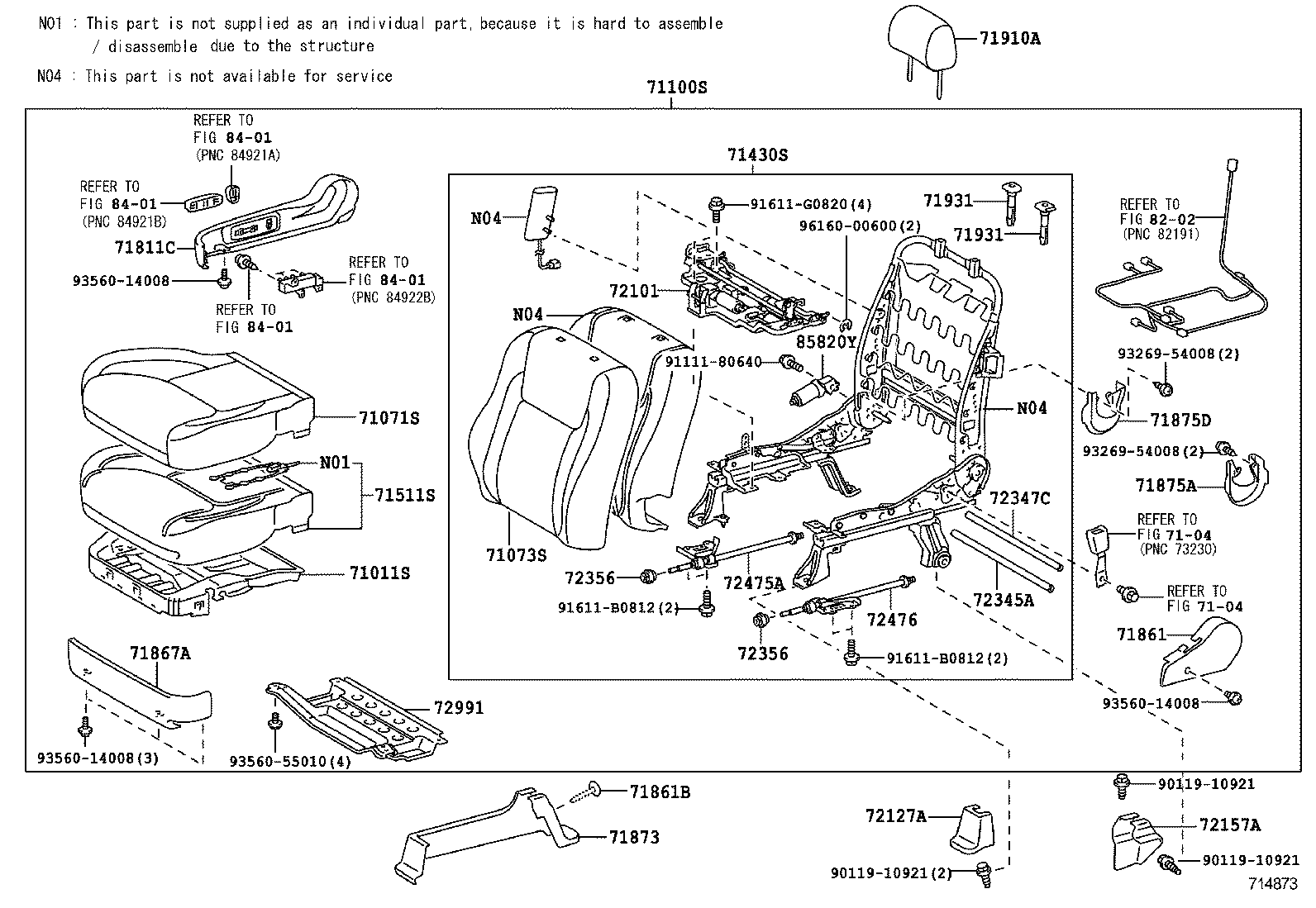

FRONT SEAT SEAT TRACK

PASSENGER SEAT (0404- )30V..TAIW ; (0407- )MCV30..PHL

CAMRY | FRONT SEAT SEAT TRACK 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH ** Refer Fig ** Refer Fig 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71100S - SEAT ASSY, FRONT RH 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71811C - COVER, RECLINING ADJUSTER, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71875D - COVER, RECLINING ADJUSTER OUTSIDE, RH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72101 - BRACKET SUB-ASSY, OUTER SEAT TRACK, LOWER FRONT 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72345A - PIPE, RECLINING CONNECTING 72347C - COVER, RECLINING CONNECTING HOOK 72356 - NUT, SIDE SUPPORT, RH 72356 - NUT, SIDE SUPPORT, RH 72475A - SCREW, HORIZONTAL JACK, OUTER 72476 - SCREW, HORIZONTAL JACK, INNER 72991 - COVER, FRONT SEAT CUSHION, RH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85820Y - MOTOR ASSY, POWER SEAT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
