TOYOTA LAND CRUISER 70 FZJ78L-RJMRK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

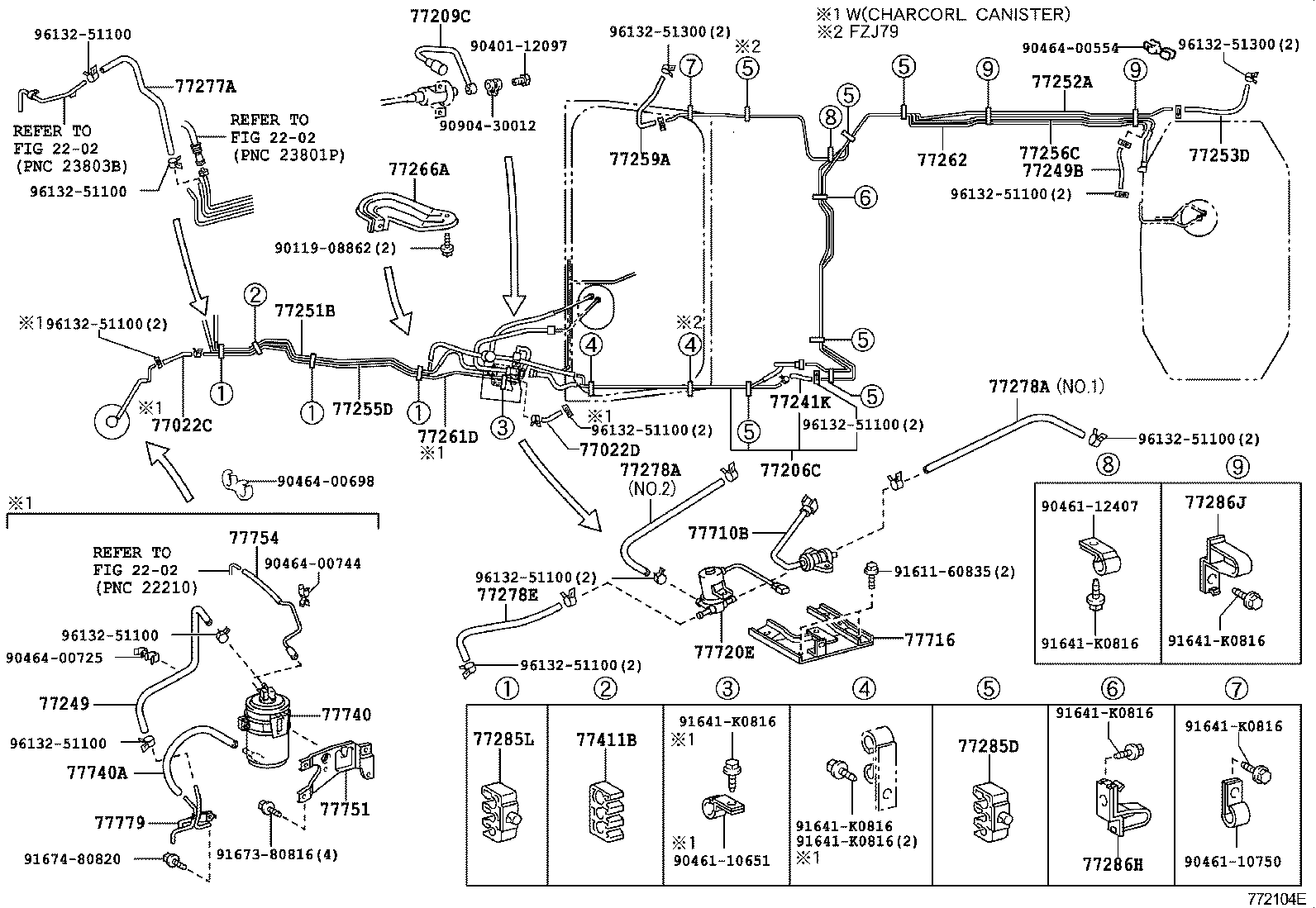

FUEL TUBE W(FUEL SUB TANK) ILLUST NO. 2 OF 3(0701-0907)FZJ78,79

LAND CRUISER 70 | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) 77022D - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77209C - TUBE SUB-ASSY, FUEL TANK MAIN 77241K - HOSE, FUEL, NO.9 77249 - HOSE, FUEL EMISSION 77249B - HOSE, FUEL 77251B - TUBE, FUEL MAIN 77252A - TUBE, FUEL MAIN, NO.2 77253D - HOSE, FUEL 77255D - TUBE, FUEL RETURN 77256C - TUBE, FUEL RETURN, NO.2 77259A - HOSE, FUEL(FOR BREATHER TUBE) 77261D - TUBE, FUEL TANK TO CANISTER 77262 - TUBE, FUEL EMISSION, NO.2 77266A - PROTECTOR, FUEL TUBE, NO.1 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77278E - HOSE, FUEL 77285D - CLAMP, FUEL TUBE, NO.1 77285L - CLAMP, FUEL TUBE, NO.1 77286H - CLAMP, FUEL TUBE, NO.3 77286J - CLAMP, FUEL TUBE, NO.4 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN 77716 - BRACKET, FUEL SOLENOID VALVE MAIN 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77751 - BRACKET, CHARCOAL CANISTER BASE 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77779 - TUBE, CHARCOAL CANISTER OUTLET ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
