TOYOTA ALPHARD VELLFIRE HV ANH20R-PRXSK / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

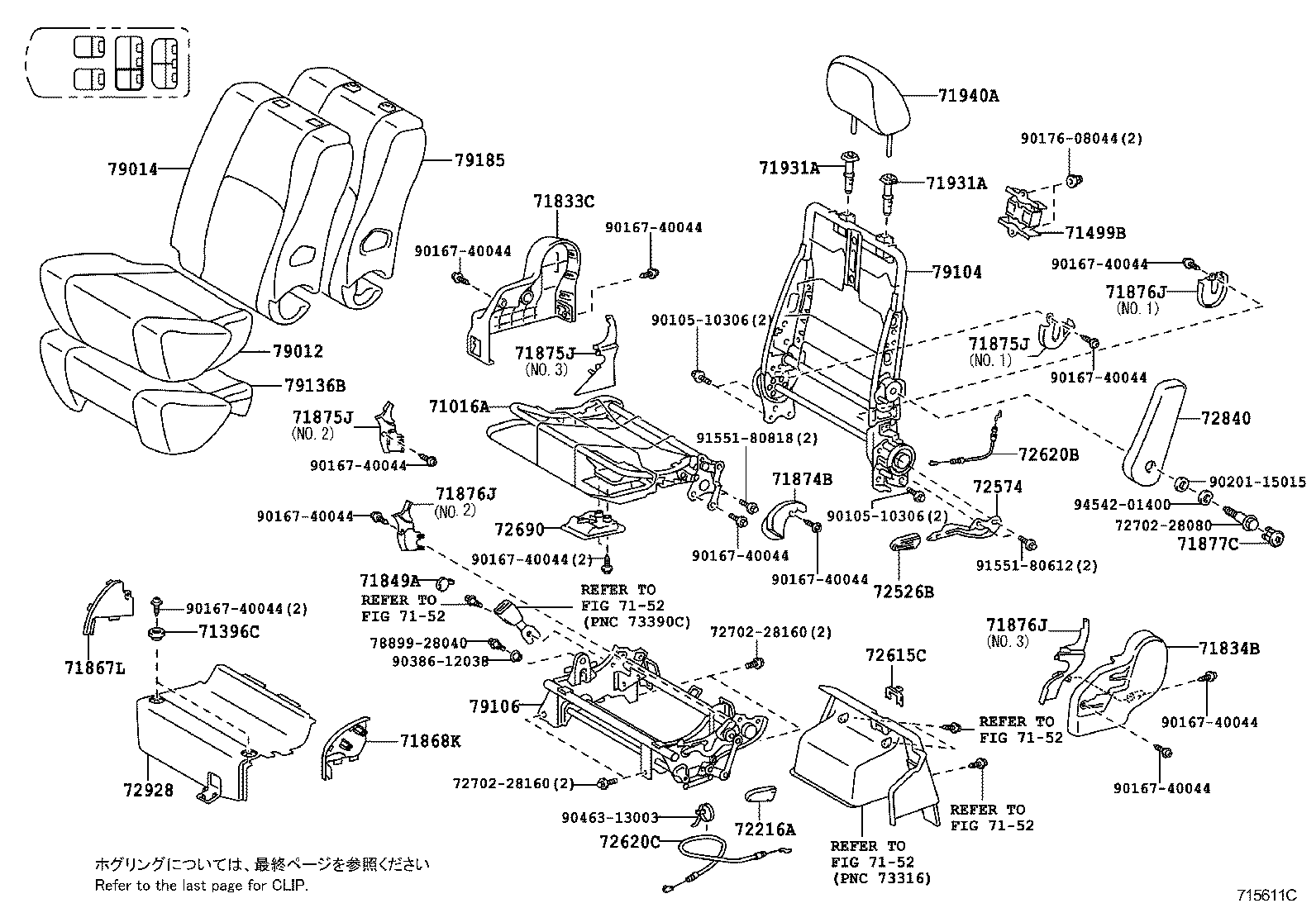

REAR NO.1 SEAT(LH) ILLUST NO. 2 OF 2(0906- )ANH20..350S

ALPHARD VELLFIRE HV | SEAT SEAT TRACK 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH 71396C - CUSHION, NO.2 SEAT SUPPORT, REAR 71499B - DAMPER, SEAT CUSHION SPRING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71833C - COVER, REAR SEAT RECLINING, NO.2 RH 71834B - COVER, REAR SEAT RECLINING, NO.2 LH 71849A - CAP, SEAT ADJUSTER COVER, LH 71867L - SHIELD, REAR SEAT CUSHION, INNER NO.1 RH(FOR LH SEAT) 71868K - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH (FOR LH SEAT) 71874B - SHIELD, REAR SEAT CUSHION, LOWER LH 71875J - COVER, RECLINING ADJUSTER INSIDE, RH 71875J - COVER, RECLINING ADJUSTER INSIDE, RH 71875J - COVER, RECLINING ADJUSTER INSIDE, RH 71876J - COVER, RECLINING ADJUSTER INSIDE, LH 71876J - COVER, RECLINING ADJUSTER INSIDE, LH 71876J - COVER, RECLINING ADJUSTER INSIDE, LH 71877C - COVER, REAR SEAT ARMREST HOLE LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72216A - LEVER, SEAT TRACK HANDLE CONTROL, LH 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH 72574 - LEVER, RECLINING CONTROL, LH 72615C - COVER, REAR SEAT BACK LOCK STRIKER 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE ** Std Part ** Std Part ** Std Part 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH 72928 - COVER, REAR SEAT CUSHION UNDER, LH ** Std Part 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH 79106 - LEG SUB ASSY, NO.1 SEAT, LH 79136B - PAD, NO.1 SEAT CUSHION, LH 79185 - PAD, NO.1 SEAT BACK, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
