TOYOTA ALPHARD VELLFIRE HV ATH20R-PFXQB / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

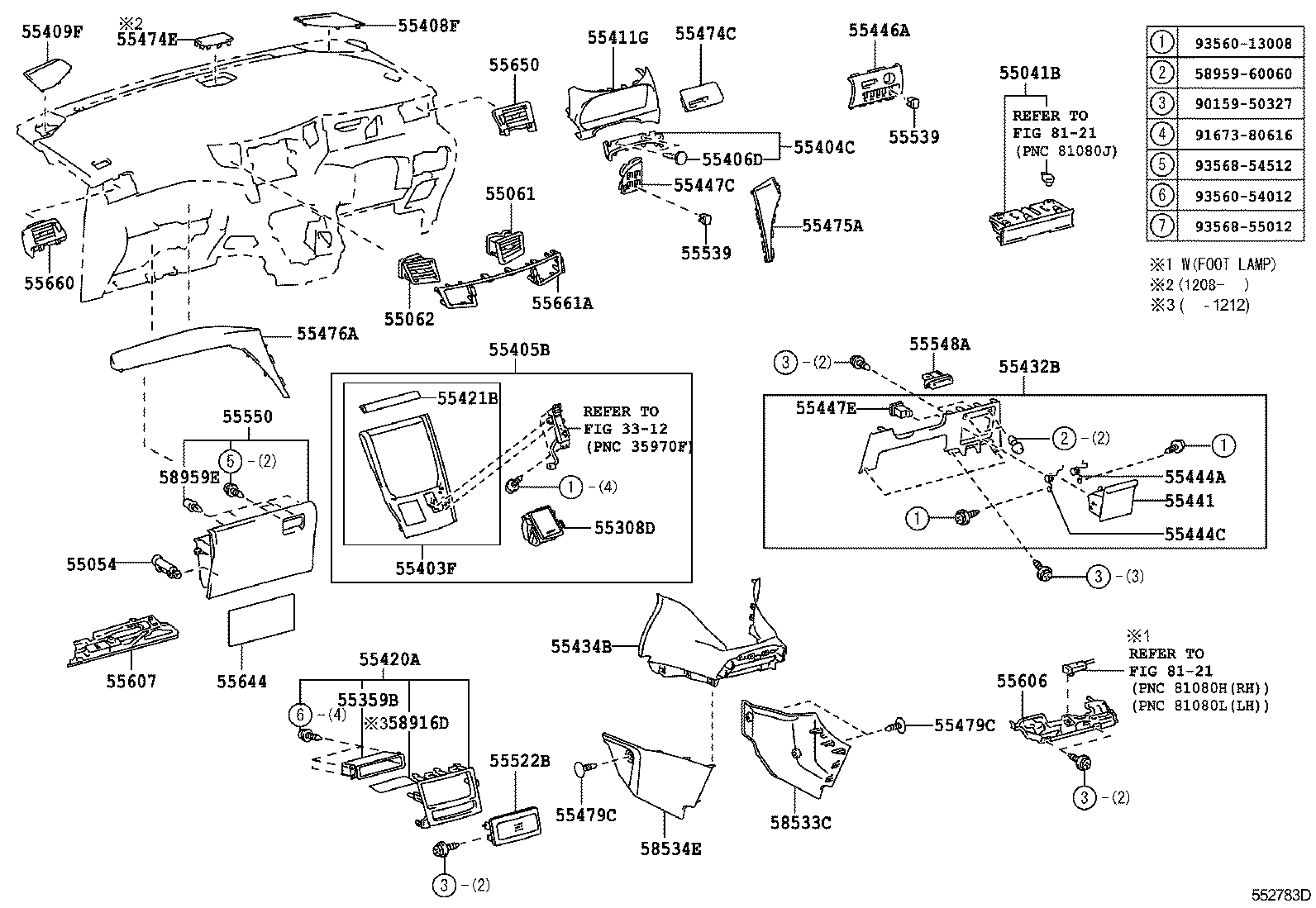

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 2 OF 2(1112- )ATH20

ALPHARD VELLFIRE HV | INSTRUMENT PANEL GLOVE COMPARTMENT ** Refer Fig 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 55308D - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER 55359B - BOX, INSTRUMENT PANEL, CENTER 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER 55441 - BOX, INSTRUMENT PANEL 55444A - SPRING, INSTRUMENT PANEL BOX 55444C - SPRING, INSTRUMENT PANEL BOX 55446A - BASE, SWITCH HOLE, NO.1 55447C - BASE, SWITCH HOLE, NO.2 55447E - BASE, SWITCH HOLE, NO.3 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 55474E - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3 55479C - CLIP(FOR INSTRUMENT LOWER COVER) 55479C - CLIP(FOR INSTRUMENT LOWER COVER) 55522B - COVER, RADIO TUNER OPENING 55539 - COVER, SPARE SWITCH HOLE 55539 - COVER, SPARE SWITCH HOLE 55548A - COVER, INSTRUMENT PANEL HOLE 55550 - DOOR ASSY, GLOVE COMPARTMENT 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 55644 - PAD, INSTRUMENT PANEL UNDER SILENCER, NO.2 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 55661A - BEZEL, INSTRUMENT PANEL REGISTER 58533C - COVER, FLOOR CARPET, CENTER RH 58534E - COVER, FLOOR CARPET, CENTER LH 58916D - MAT, BOX BOTTOM ** Std Part 58959E - CUSHION, CONSOLE COMPARTMENT DOOR ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
