TOYOTA ALPHARD VELLFIRE HV ATH20R-PFXQB / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

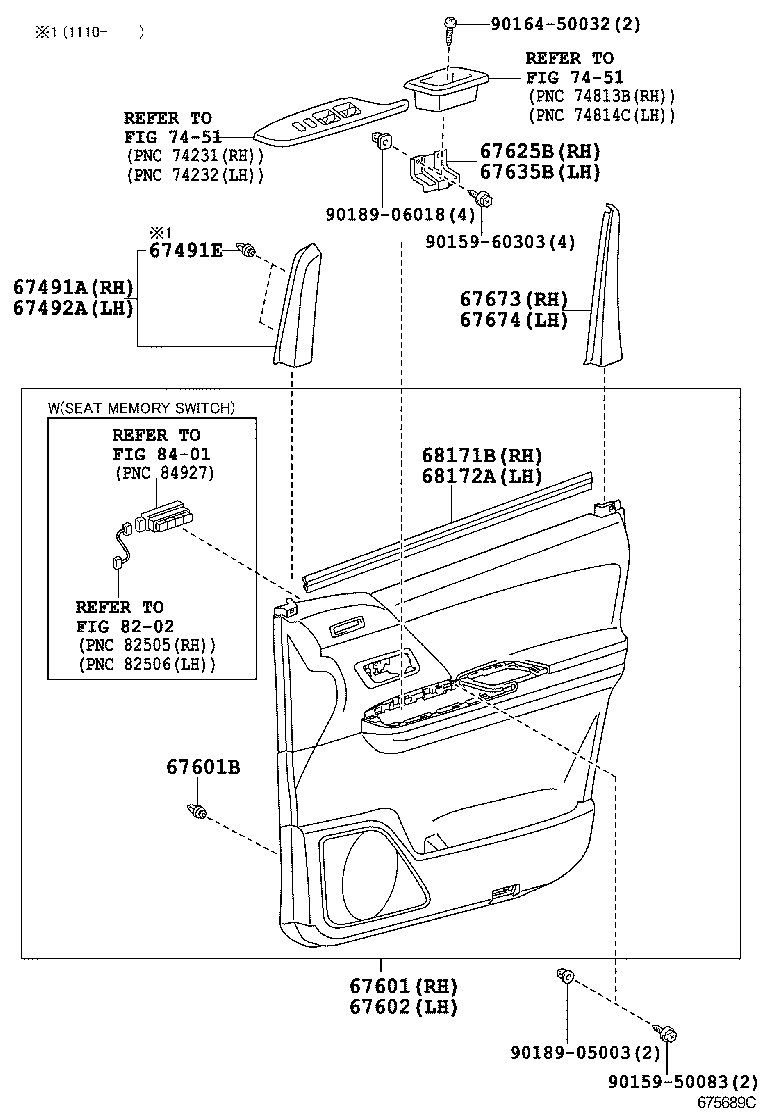

FRONT DOOR PANEL GLASS

DOOR TRIM ILLUST NO. 3 OF 3(0804- )

 ALPHARD VELLFIRE HV |  FRONT DOOR PANEL GLASS 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH 67491E - RETAINER, DOOR TRIM 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH 67625B - BRACKET, DOOR TRIM, NO.1 RH 67635B - BRACKET, DOOR TRIM, NO.1 LH 67673 - GARNISH, DOOR FRAME, LOWER RH 67674 - GARNISH, DOOR FRAME, LOWER LH 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
