TOYOTA ALPHARD VELLFIRE HV ATH20R-PFXQB / BODY / REAR DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR DOOR PANEL GLASS

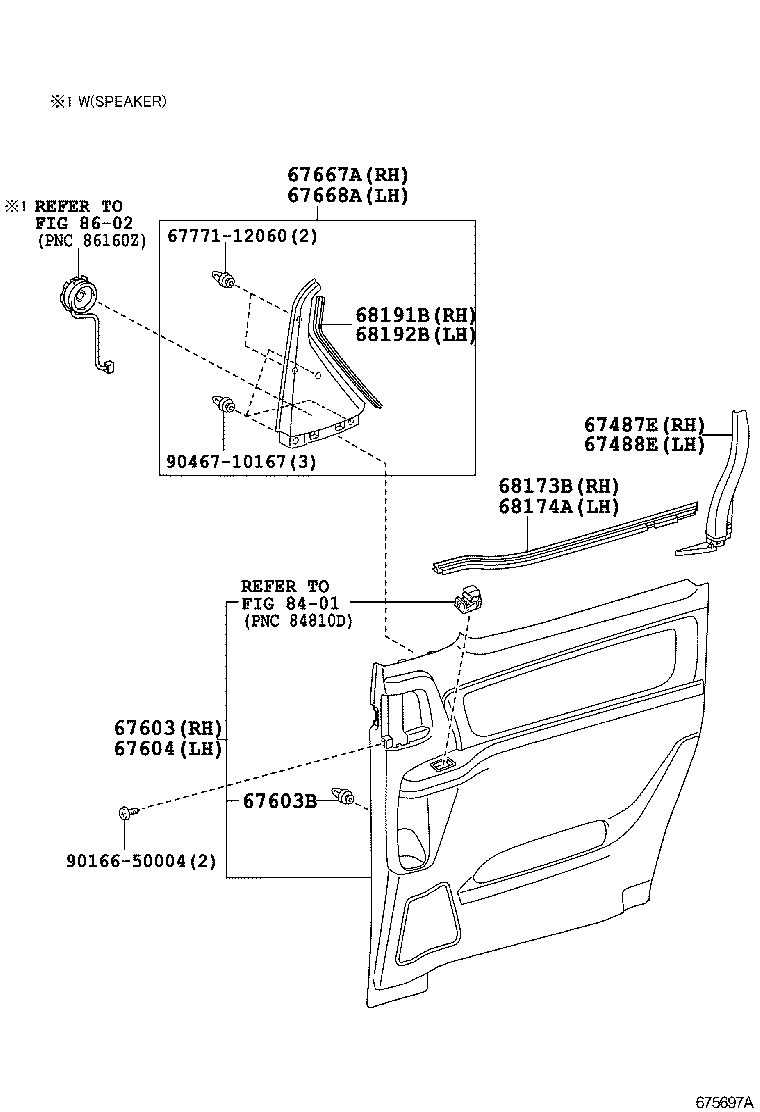

DOOR TRIM ILLUST NO. 2 OF 2(0804- )

 ALPHARD VELLFIRE HV |  REAR DOOR PANEL GLASS 67487E - GARNISH, REAR DOOR REAR GUIDE BRACKET, RH 67488E - GARNISH, REAR DOOR REAR GUIDE BRACKET, LH 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH 67603B - CLIP(FOR REAR DOOR TRIM BOARD) 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH 67667A - GARNISH, SLIDE DOOR WINDOW, RH 67668A - GARNISH, SLIDE DOOR WINDOW, LH  ** Std Part 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH 68191B - RUN, REAR DOOR GLASS, NO.2 RH 68192B - RUN, REAR DOOR GLASS, NO.2 LH ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part
