TOYOTA ALPHARD VELLFIRE HV ATH20R-PFXQB / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

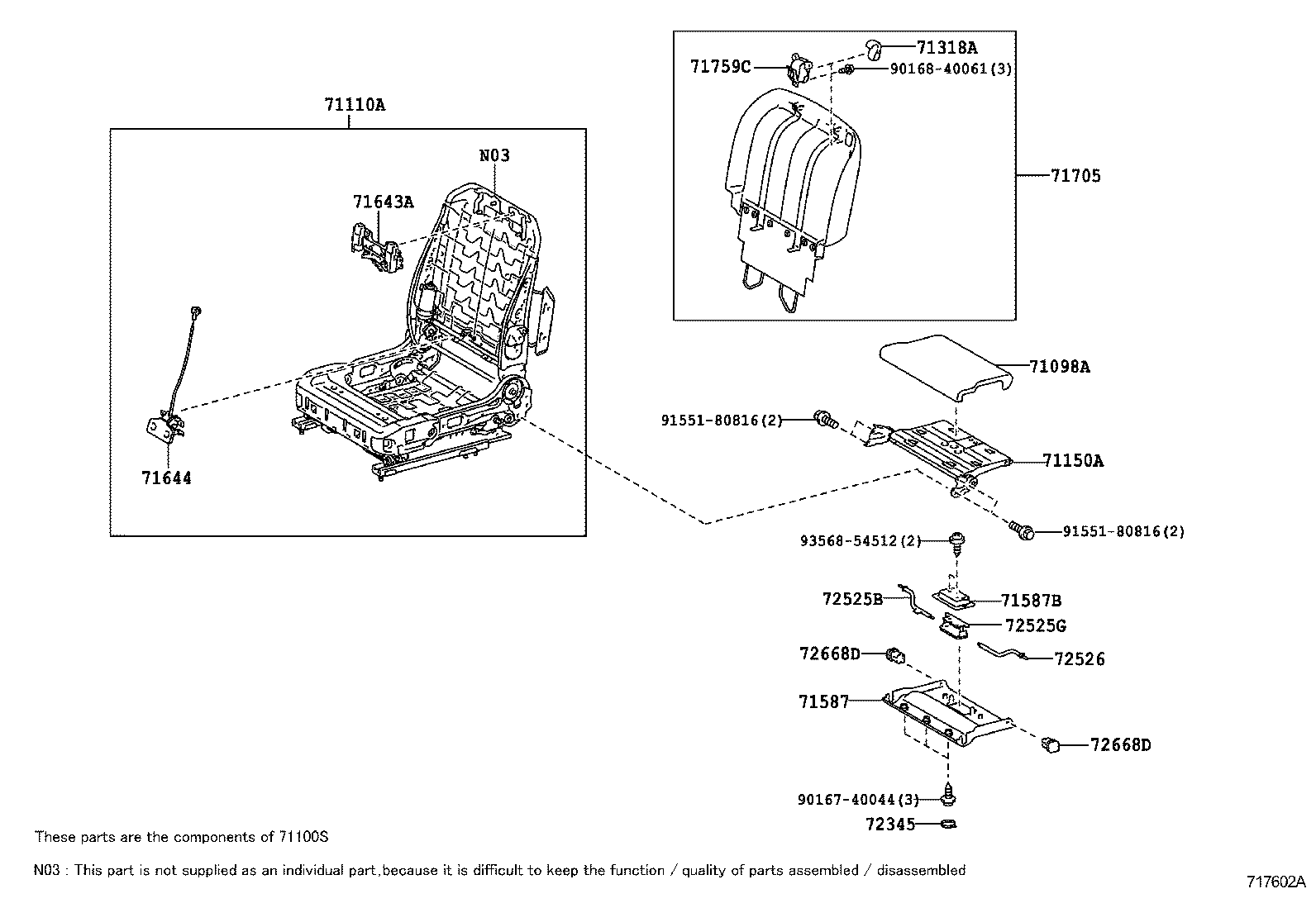

SEAT SEAT TRACK

DRIVER SEAT W(POWER SEAT) ILLUST NO. 2 OF 2(1110- )RHD..07S..350G,350S

 ALPHARD VELLFIRE HV |  SEAT SEAT TRACK 71098A - COVER SUB-ASSY, FRONT SEAT BACK, LOWER RH 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH 71150A - FRAME ASSY, FRONT SEAT BACK, LOWER RH 71318A - HOOK, FRONT SEAT BACK LOCK 71587 - PROTECTOR, FRONT SEAT BACK EDGE 71587B - PROTECTOR, FRONT SEAT BACK EDGE 71643A - UNIT, ACTIVE HEADREST, UPR 71644 - UNIT, ACTIVE HEADREST, LWR 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71759C - HOOK, FRONT SEAT BACK, NO.1 72345 - CAP, SEAT STAND FRAME 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH 72525G - HANDLE, FRONT SEAT BACK LOCK 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH 72668D - BEZEL, FRONT SEAT BACK LOCK, LOWER NO.3 72668D - BEZEL, FRONT SEAT BACK LOCK, LOWER NO.3  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
