TOYOTA CAMRY AURION HV ARL ASV50R-DETDKQ / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

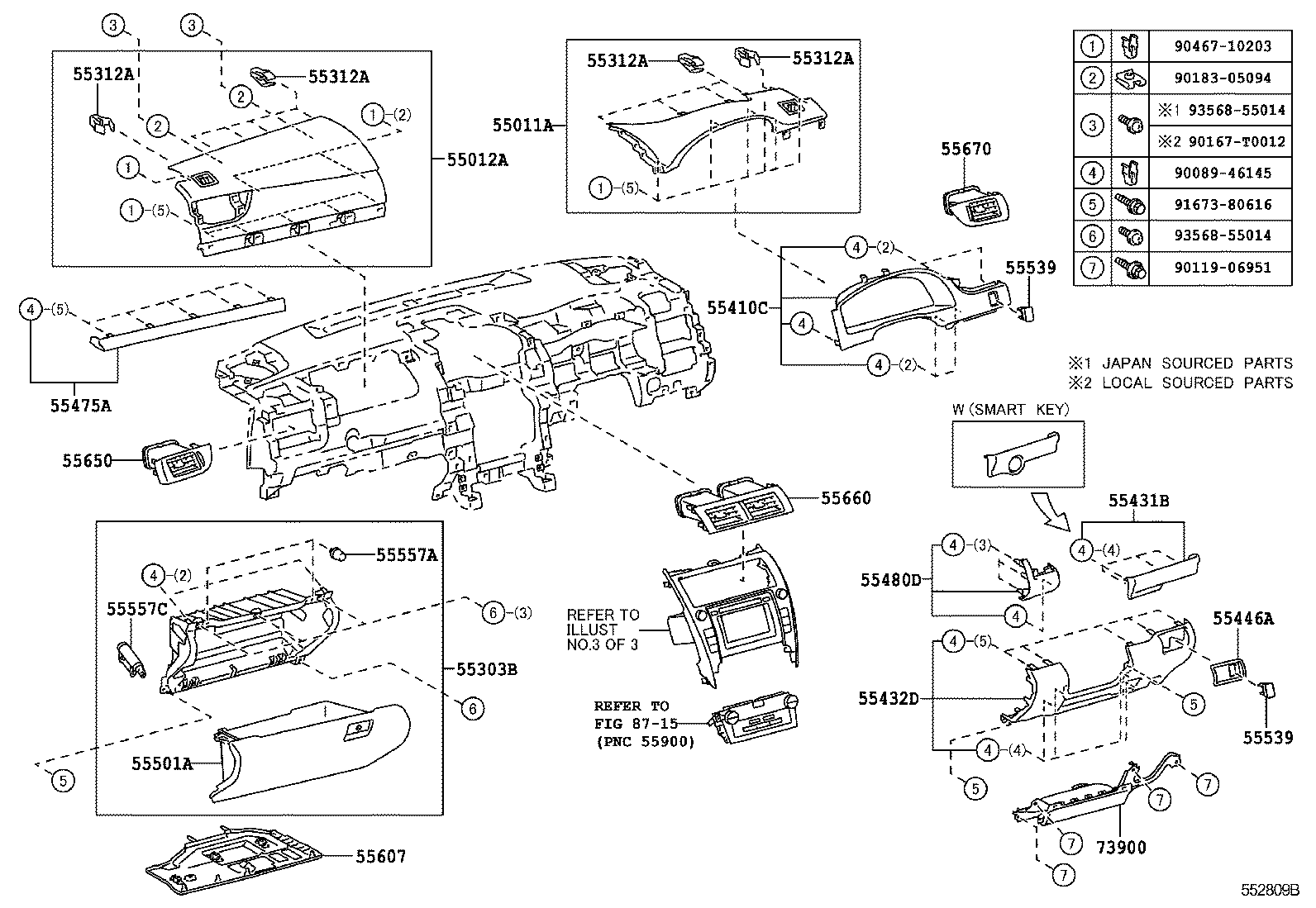

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 2 OF 3(1110- )ASV50,AVV50..ARL

CAMRY AURION HV ARL | INSTRUMENT PANEL GLOVE COMPARTMENT 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER 55312A - CLIP, INSTRUMENT PANEL 55312A - CLIP, INSTRUMENT PANEL 55312A - CLIP, INSTRUMENT PANEL 55312A - CLIP, INSTRUMENT PANEL 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 55446A - BASE, SWITCH HOLE, NO.1 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT 55539 - COVER, SPARE SWITCH HOLE 55539 - COVER, SPARE SWITCH HOLE 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK 55557C - DAMPER, GLOVE COMPARTMENT DOOR 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
